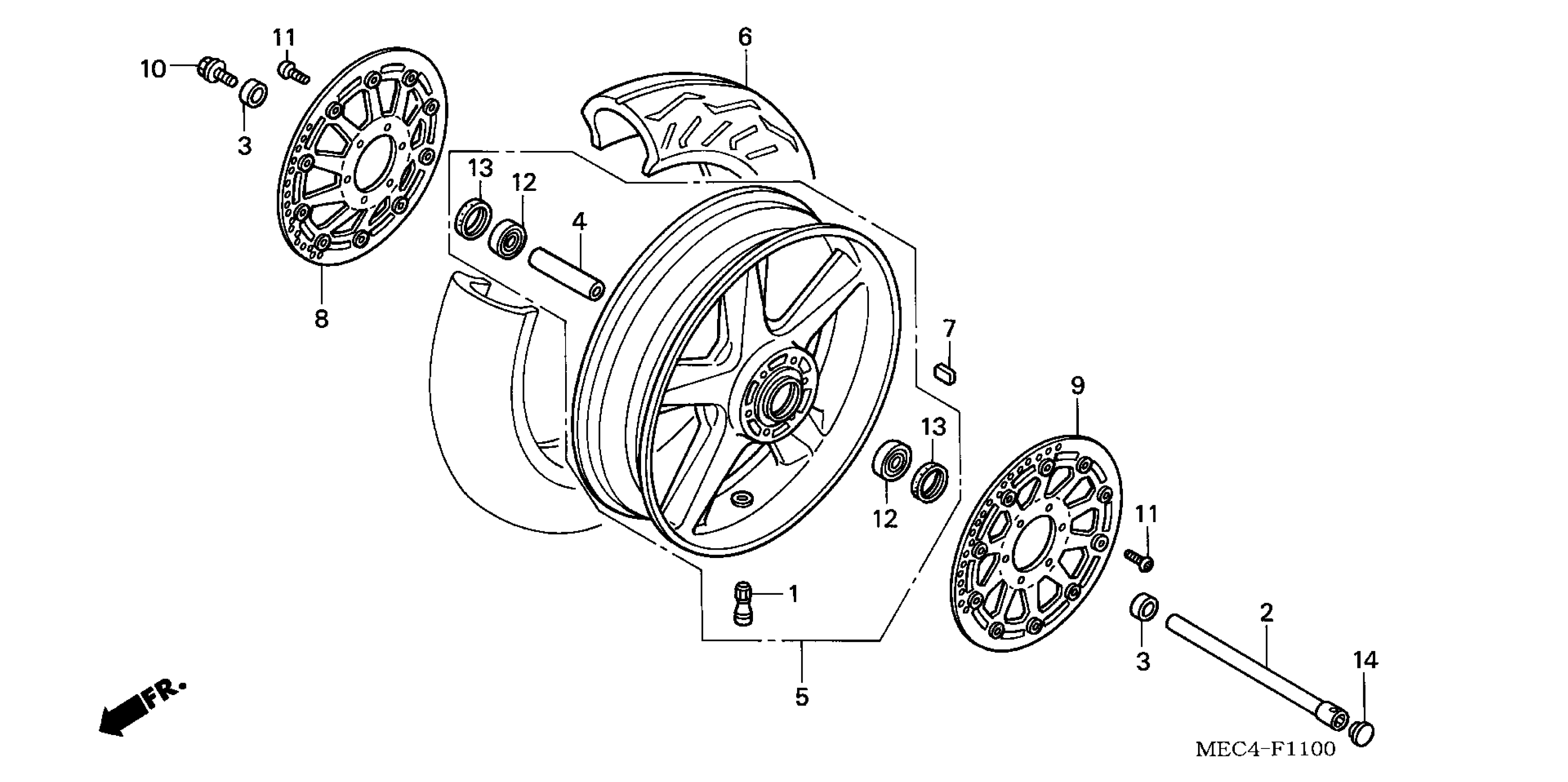

Honda NRX1800EAA (04) VALKYRIE RUNE, USA, VIN# 1HFSC536-4A000001 FRONT WHEEL Diagram

#

Description
Price

1

VALVE, RIM (DUNLOP)

42753-MEC-014

Unavailable

2

AXLE, FR. WHEEL

44301-MEC-000

$82.05

3

COLLAR, FR. WHEEL SIDE

44311-MEC-000

$9.07

4

COLLAR, FR. AXLE DISTANCE

44620-MEC-000

$15.16

5

WHEEL SUB-ASSY., FR. (CHROME WHEEL)

44650-MEC-841

$4,419.59

6

TIRE, FR. (150/60R18 M/C 67V) (DUNLOP)

44711-MEC-004

$444.36

7

WEIGHT, BALANCE (10G) (TOPY)

44721-S3Y-003

$1.49

7

WEIGHT (20G) This part replaces 44722-S3Y-003.

44724-TP6-A01

$1.66

7

WEIGHT, BALANCE (30G) (TOPY)

44723-S3Y-003

$2.39

7

WEIGHT, BALANCE (40G) (TOHO)

44724-SEA-N01

$6.67

7

WEIGHT, BALANCE (40G) (TOHO) This part replaces 44724-S3Y-003.

44724-SEA-N01

$6.67

7

WEIGHT, BALANCE (5G) (TOPY)

44726-S3Y-003

$1.49

7

WEIGHT, BALANCE (15G) (TOPY)

44727-S3Y-003

$1.56

7

WEIGHT, BALANCE (25G) (TOPY)

44728-S3Y-003

$3.26

7

WEIGHT, BALANCE (35G) (TOHO)

44729-SEA-N01

$2.75

7

WEIGHT, BALANCE (35G) (TOPY)

44729-S3Y-003

$2.75

7

WEIGHT (35G) This part replaces 44729-S5A-N01.

44727-TP6-A01

$2.75

8

DISK, R. FR. BRAKE This part replaces 45120-MEC-003.

45120-MEC-A01

Unavailable

8

DISK, R. FR. BRAKE

45120-MEC-A01

Unavailable

9

DISK, L. FR. BRAKE This part replaces 45220-MEC-003.

45220-MEC-A01

Unavailable

9

DISK, L. FR. BRAKE

45220-MEC-A01

Unavailable

10

BOLT, FR. AXLE

90105-MBT-610

$5.76

11

BOLT, DISK (6X17)

90106-MBB-000

$3.65

12

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

13

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66

14

CAP, R. AXLE BOLT

91456-MR1-770

Unavailable
