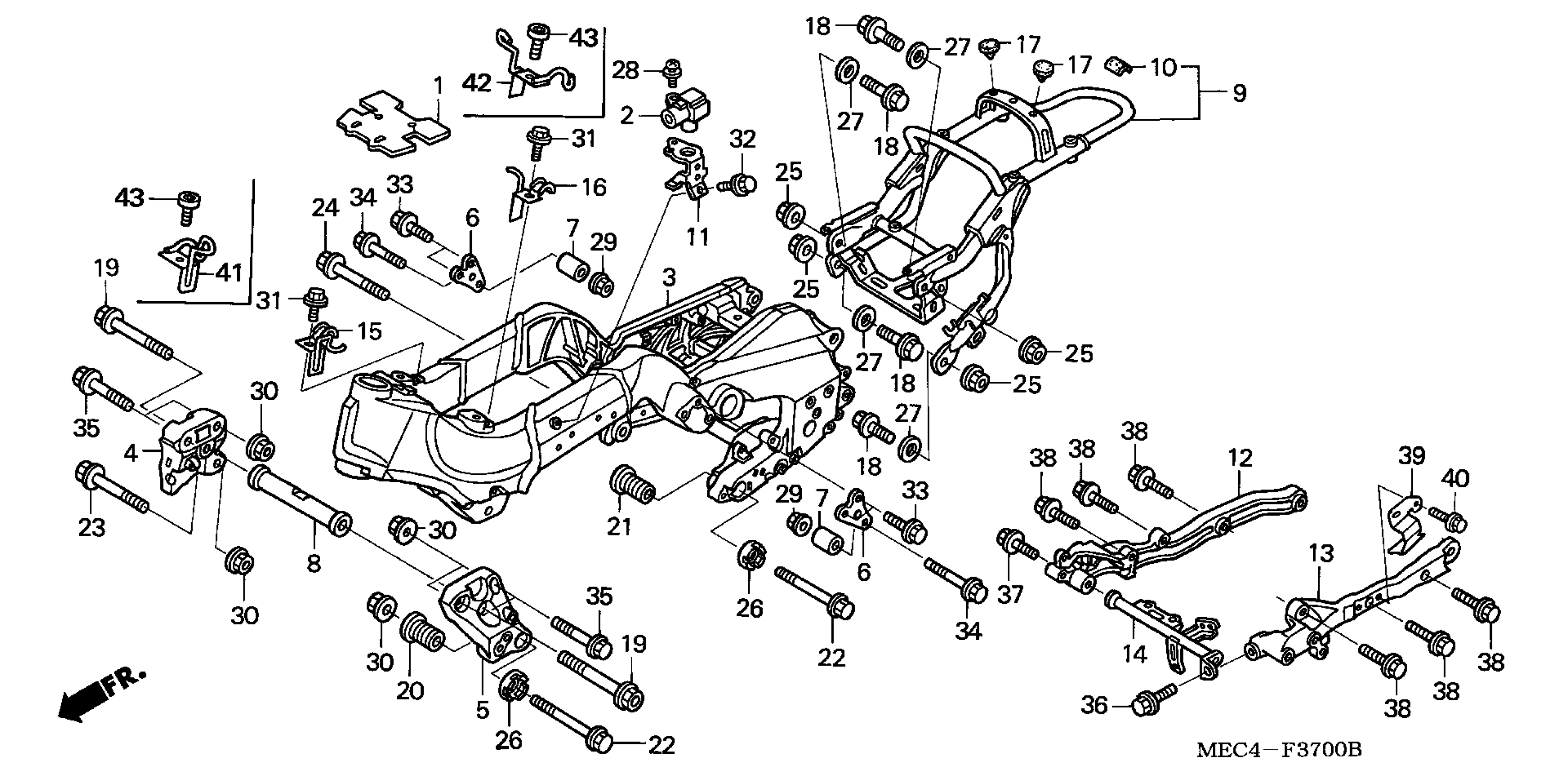

Honda NRX1800EAA (04) VALKYRIE RUNE, USA, VIN# 1HFSC536-4A000001 FRAME Diagram

#

Description
Price

1

RUBBER, METER

37250-MEC-000

$4.38

2

SENSOR, MAP

37830-MCF-003

$206.58

3

FRAME | Use up to Frame SN 4A000484 This part replaces 50100-MEC-000.

50100-MEC-A00

$2,132.21

3

FRAME

50100-MEC-A00

$2,132.21

4

HANGER, R. ENGINE

50103-MEC-000

Unavailable

5

HANGER, L. ENGINE

50104-MEC-000

$150.61

6

PLATE, ENGINE HANGER CENTER

50151-MEC-000

$19.39

7

COLLAR, ENGINE HANGER CENTER

50153-MEC-000

$4.03

8

PIPE, FR. CROSS

50181-MEC-000

$76.92

9

FRAME ASSY., RR.

50250-MEC-000

$549.11

10

RUBBER, SEAT RAIL

50283-MR7-300

$2.92

11

STAY, MAP SENSOR

50335-MEC-000

$8.75

12

BEAM, R. ENGINE SUPPORT

50351-MEC-000

$274.43

13

BEAM, L. ENGINE SUPPORT

50352-MEC-000

$761.05

14

PIPE, FR. CROSS (LOWER)

50353-MEC-000

$144.61

15

CLAMP, R. HARNESS This part replaces 53136-MEC-000.

53136-MEC-010

Unavailable

15

CLAMP, R. HARNESS

53136-MEC-010

Unavailable

16

CLAMP, L. HARNESS This part replaces 53137-MEC-000.

53137-MEC-010

Unavailable

16

CLAMP, L. HARNESS

53137-MEC-010

Unavailable

17

RUBBER, SEAT SIDE

77212-965-000

$4.94

18

BOLT, FLANGE (12X35)

90026-MEC-000

$4.03

19

BOLT, FLANGE (14X85)

90110-MEC-000

$5.69

20

BOLT, ADJUSTING (M22-47)

90117-MCA-000

$16.90

21

BOLT, ADJUSTING (M22-40)

90126-MCA-000

$16.66

22

BOLT, FLANGE (12X92)

90127-MCA-000

$4.97

23

BOLT, FLANGE (12X72)

90128-KW3-000

$13.97

24

BOLT, FLANGE (12X84)

90166-SZ3-000

$13.08

25

NUT, FLANGE (12MM)

90309-375-003

$8.61

26

NUT, LOCK This part replaces 90310-MCA-000.

90310-MCA-010

$9.87

27

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.23

28

SCREW-WASHER (4X12)

93891-04012-00

$1.49

29

NUT, FLANGE (10MM)

90303-428-900

$3.35

29

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

30

NUT, FLANGE (12MM)

94050-12000

$1.49

31

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

32

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

33

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

34

BOLT, FLANGE (10X70)

95701-10070-00

$2.09

35

BOLT, FLANGE (12X60)

95801-12060-00

$2.46

36

BOLT, FLANGE (8X25)

96300-08025-00

$1.62

37

BOLT, FLANGE (8X40)

96300-08040-00

$2.13

38

BOLT, FLANGE (10X40)

96300-10040-00

$3.23

39

GUARD, HEAT

24750-MEC-000

$32.10

40

BOLT, FLANGE (6X12)

90130-ML0-730

$2.92
