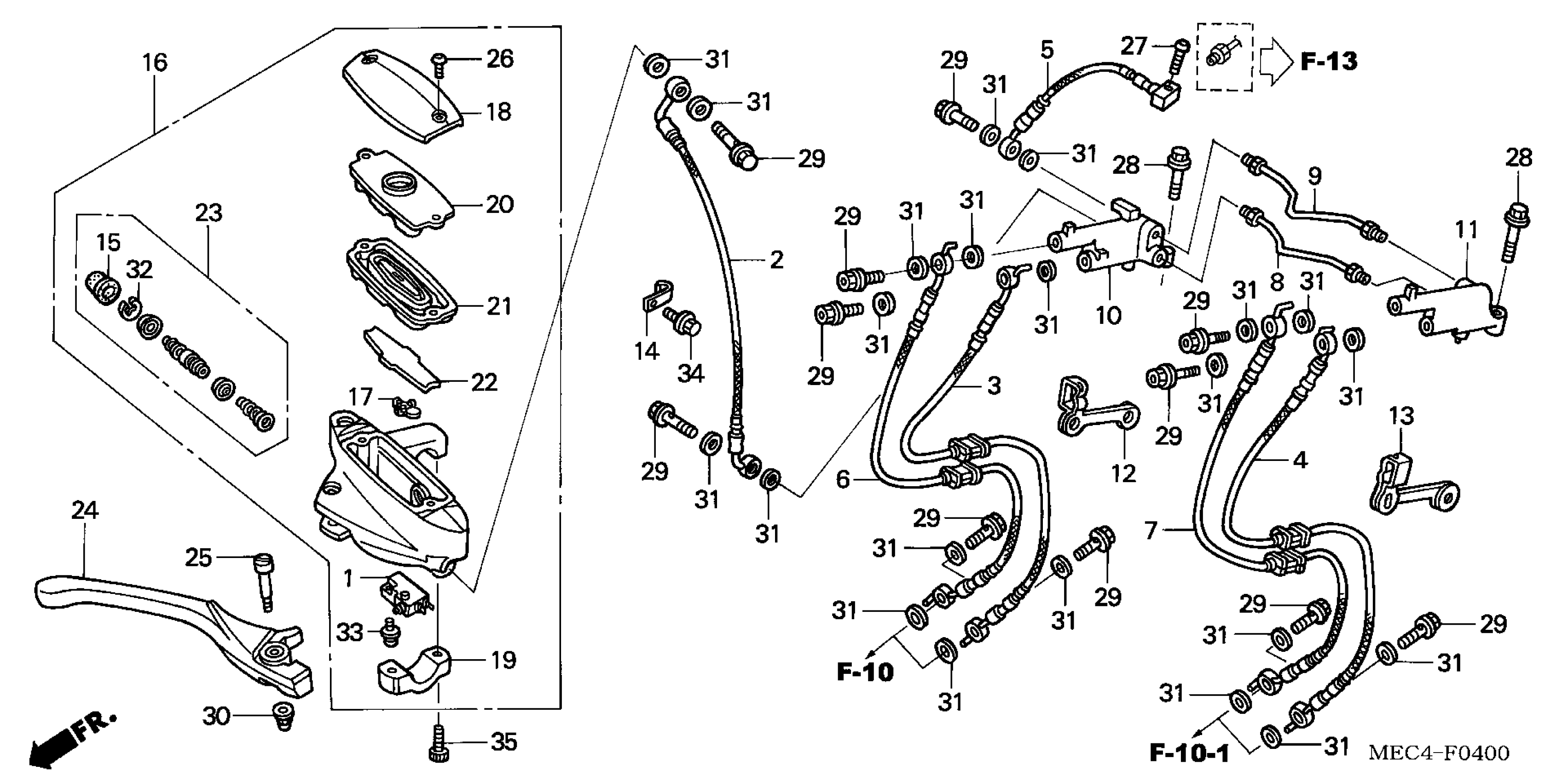

Honda NRX1800DBA (05) VALKYRIE RUNE, USA, VIN# 1HFSC533-5A100001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

2

HOSE A, FR. BRAKE MAIN (PULLBACK HANDLEBAR)

45124-MEC-831

Unavailable

3

HOSE B, FR. BRAKE MAIN

45125-MEC-003

$85.14

4

HOSE C, FR. BRAKE MAIN

45126-MEC-003

$85.14

5

HOSE A, BRAKE SUB

45127-MEC-003

$48.54

6

HOSE B, BRAKE SUB

45128-MEC-003

$80.97

7

HOSE C, BRAKE SUB

45129-MEC-003

$80.97

8

MAIN PIPE, FR. BRAKE

45135-MEC-000

$4.64

9

SUB-PIPE, FR. BRAKE

45136-MEC-000

$4.93

10

JOINT, R. BRAKE PIPE

45151-MEC-006

$70.36

11

JOINT, L. BRAKE PIPE

45152-MEC-006

$57.25

12

CLAMP, R. FR. BRAKE HOSE

45157-MEC-000

$9.32

13

CLAMP, L. FR. BRAKE HOSE

45158-MEC-000

$9.32

14

GUIDE, FR. BRAKE HOSE

45159-MEC-000

$7.39

15

BOOT

45504-410-003

$10.93

16

MASTER CYLINDER SUB-ASSY., FR.

45510-MEC-006

Unavailable

17

PROTECTOR

45512-MA6-006

$3.99

18

CAP, MASTER CYLINDER

45513-MEC-006

Unavailable

19

HOLDER, MASTER CYLINDER

45517-MEC-006

$35.13

20

PLATE, DIAPHRAGM

45518-MEC-006

Unavailable

21

DIAPHRAGM

45520-MEC-006

$13.35

22

FLOAT, FR. MASTER CYLINDER

45523-MEC-006

Unavailable

23

PISTON SET, FR. MASTER CYLINDER

45530-MCA-006

$16.28

24

LEVER, R. HANDLEBAR

53175-MEC-006

$124.23

25

BOLT, HANDLE LEVER

90114-MG9-951

$7.34

26

SCREW, BUTTON HEAD (4X12)

90116-MEC-006

$3.17

27

BOLT, SPECIAL (6X25)

90117-MEC-000

$1.91

28

BOLT, SPECIAL FLANGE (8X32)

90123-MR1-000

$4.43

29

BOLT, OIL (10X22)

90145-MS9-612

$6.82

30

NUT, CAP (6MM)

90202-ZV0-000

$2.65

31

WASHER, OIL BOLT

90545-300-000

$3.72

32

CIRCLIP

90651-MA5-671

$2.38

33

SCREW-WASHER (4X14)

93893-04014-07

$0.93

34

BOLT, FLANGE (6X12)

96001-06012-02

$1.13

35

BOLT, SOCKET (6X22)

96600-06022-10

$1.91
