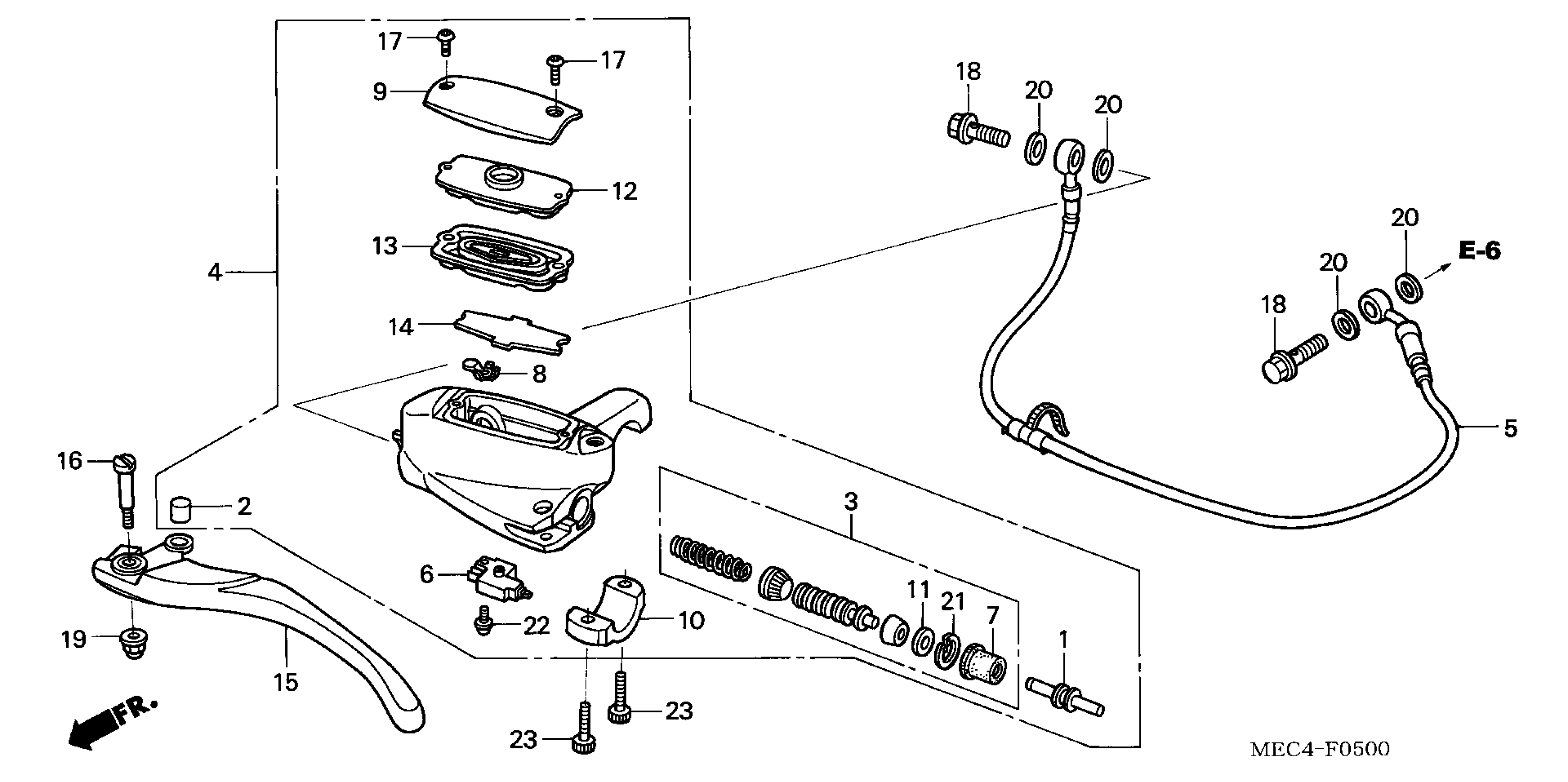

Honda NRX1800DBA (04) VALKYRIE RUNE, USA, VIN# 1HFSC533-4A000001 CLUTCH MASTER CYLINDER Diagram

ROD, PUSH

22884-MB0-006

$18.55

BUSH

22885-MB0-006

$11.63

PISTON SET, MASTER

22886-MCA-006

$30.34

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MEC-006

Unavailable

HOSE B, CLUTCH (PULLBACK HANDLEBAR)

22900-MEC-831

$157.01

SWITCH ASSY., CLUTCH

35330-MEC-000

Unavailable

BOOT

45504-410-003

$10.93

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER

45513-MEC-006

Unavailable

HOLDER, MASTER CYLINDER

45517-MEC-006

$35.13

PLATE, STOPPER

45518-MB0-006

$1.77

PLATE, DIAPHRAGM

45518-MEC-006

Unavailable

DIAPHRAGM

45520-MEC-006

$13.35

FLOAT, FR. MASTER CYLINDER

45523-MEC-006

Unavailable

LEVER, L. HANDLEBAR

53178-MEC-006

Unavailable

BOLT, HANDLE LEVER

90114-MG9-951

$7.34

SCREW, BUTTON HEAD (4X12)

90116-MEC-006

$3.17

BOLT, OIL (10X22)

90145-MS9-612

$6.82

NUT, CAP (6MM)

90202-ZV0-000

$2.65

WASHER, OIL BOLT

90545-300-000

$3.72

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

BOLT, SOCKET (6X22)

96600-06022-10

$1.91
