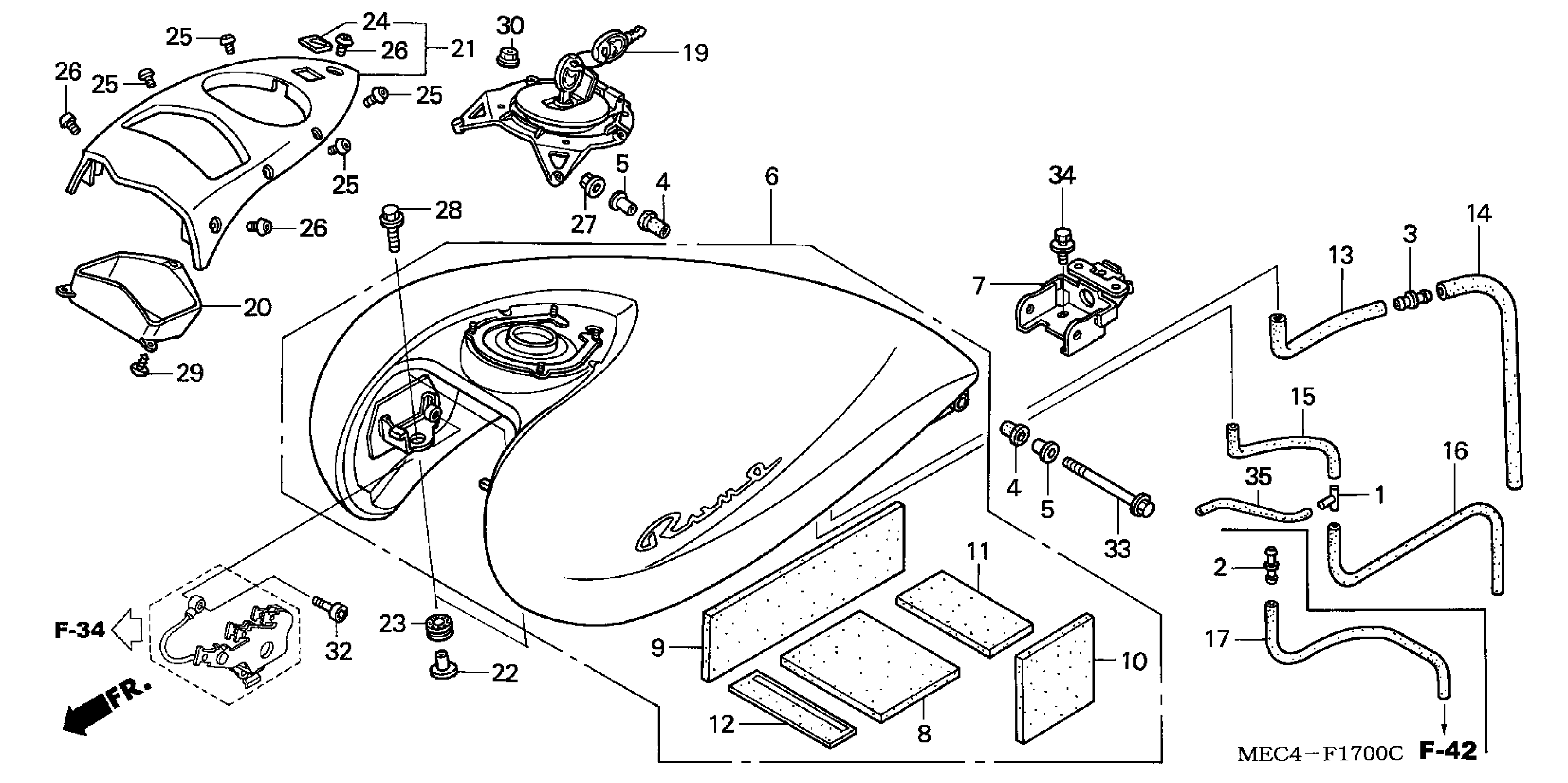

Honda NRX1800DAAC (05) VALKYRIE RUNE, USA, VIN# 1HFSC531-5A100001 FUEL TANK Diagram

#

Description
Price

2

JOINT, FUEL TUBE

16958-GJ6-000

$4.33

3

JOINT, BREATHER TUBE

17359-419-670

$1.87

4

CUSHION, RR. FUEL TANK PIVOT

17506-MCZ-000

$8.23

5

COLLAR, TANK SETTING

17517-MCZ-000

$3.78

6

TANK SET, FUEL *NH1* (WL) (BLACK)

17520-MEC-670ZD

Unavailable

6

TANK SET, FUEL *P44P* (WL) (PEARL CHROMIUM PURPLE)

17520-MEC-670ZE

Unavailable

6

TANK SET, FUEL *R287M* (WL) (BLOODSTONE RED METALLIC)

17520-MEC-670ZF

Unavailable

7

STAY, FUEL TANK PIVOT

17535-MEC-000

$13.36

8

MAT A, FUEL TANK MUFFLER

17541-MEC-300

$7.14

9

MAT B, FUEL TANK MUFFLER

17542-MEC-300

$7.14

10

MAT C, FUEL TANK MUFFLER

17543-MEC-300

$4.00

11

MAT D, FUEL TANK MUFFLER

17544-MEC-300

$4.65

12

RUBBER, FUEL TANK

17545-MEC-300

Unavailable

13

TUBE A, DRAIN

17555-MEC-000

$1.46

14

TUBE B, DRAIN

17556-MEC-000

$4.41

15

TUBE A, FUEL TANK BREATHER

17557-MEC-000

$1.19

17

TUBE B, FUEL TANK BREATHER

17558-MEC-770

$3.25

19

CAP, FUEL FILLER

17620-MEC-671

Unavailable

20

VISOR, METER

17651-MEC-000

$117.13

21

COVER ASSY., FUEL TANK

17750-MEC-670

Unavailable

22

COLLAR, SETTING

61104-422-000

$6.44

23

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.40

24

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.37

25

BOLT, SPECIAL (5X10)

90120-MEC-000

Unavailable

26

BOLT, SPECIAL (4X5)

90121-MEC-000

$1.96

27

NUT, U (6MM)

90301-473-003

$3.79

28

BOLT-WASHER (6X25)

93404-06025-08

$1.70

29

SCREW, TAPPING (5X8)

93903-35020

$0.71

30

NUT, FLANGE (5MM)

94050-05080

$0.33

32

BOLT, TORX (6X14)

90107-KCR-000

$3.30

33

BOLT, FLANGE (6X95)

95701-06095-00

$1.84

34

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

34

BOLT, FLANGE (6X16) This part replaces 95801-06016-08.

95701-06016-08

$1.32
