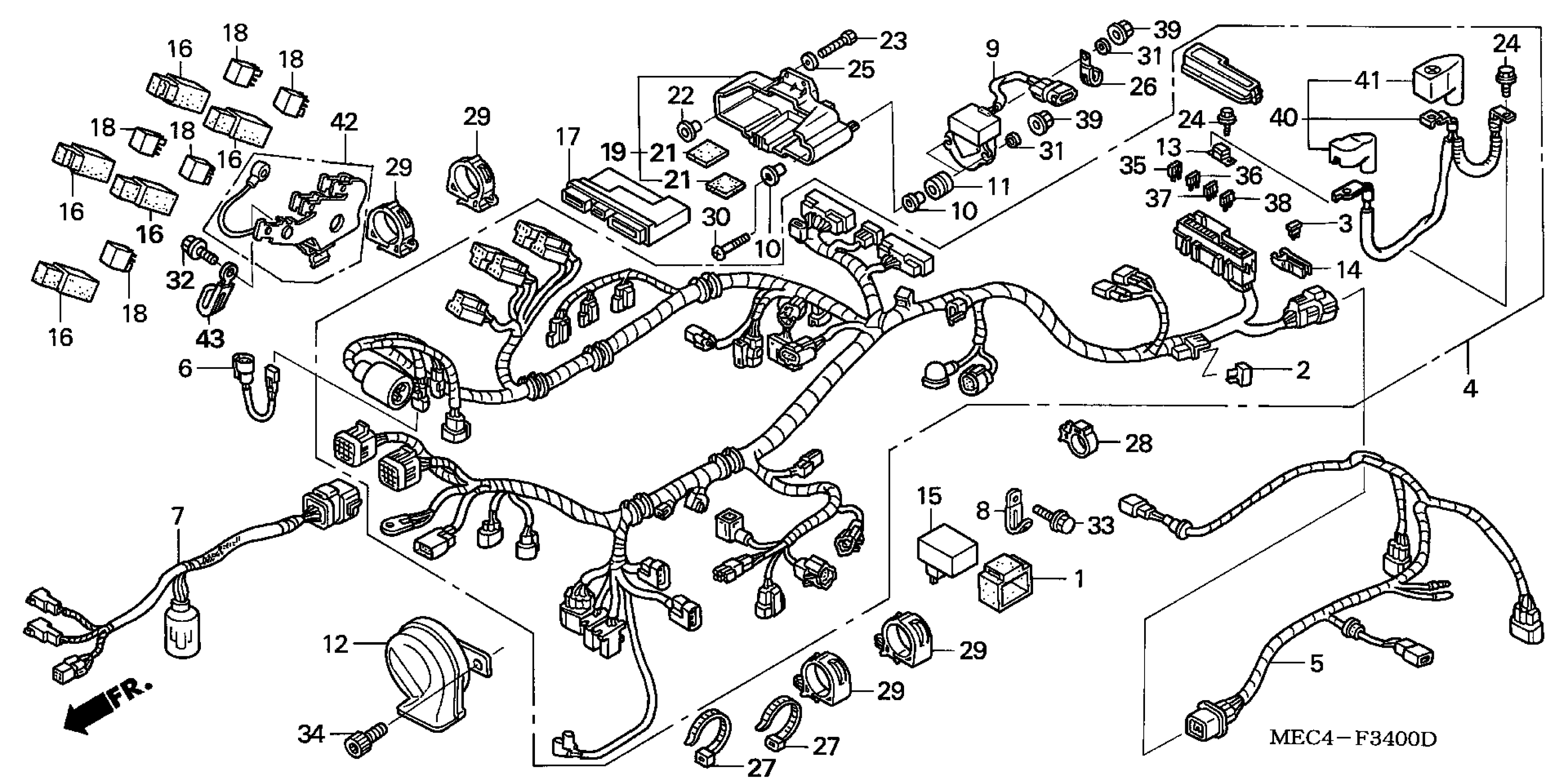

Honda NRX1800DAAC (04) VALKYRIE RUNE, USA, VIN# 1HFSC531-4A000001 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KF0-000.

30401-KF0-010

$5.84

2

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$27.27

3

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

4

WIRE HARNESS

32100-MEC-773

Unavailable

5

SUB-HARNESS, RR. FENDER

32102-MEC-010

Unavailable

6

SUB-HARNESS, IDC SOLENOID

32111-MEC-000

$5.03

7

SUB-HARNESS, FR.

32130-MEC-020

Unavailable

8

CLIP, SUB-WIRE

32901-MA1-000

$4.81

9

SENSOR, BANK ANGLE This part replaces 35161-MEC-003.

35161-MEC-013

Unavailable

10

COLLAR

35162-MN5-003

$6.93

11

GROMMET

35163-MN5-003

$3.00

12

HORN ASSY. (LOW)

38120-MEC-000

Unavailable

13

FUSE, BLOCK (100A)

38218-SM4-003

$11.29

14

PULLER, MINI FUSE (SUMITOMO)

38235-S04-003

$0.94

15

RELAY, TURN SIGNAL POSITION

38301-MEC-671

Unavailable

16

SUSPENSION, POWER RELAY

38306-MCA-000

$12.18

17

PGM-FI UNIT This part replaces 38770-MEC-506.

38770-MEC-774

Unavailable

17

PGM-FI UNIT

38770-MEC-774

Unavailable

18

RELAY, POWER This part replaces 39795-MCA-000.

38502-MGP-D01

$16.29

19

BOX ASSY., ECU

50324-MEC-000

$12.65

21

SPONGE, RUBBER

50322-MEC-000

$1.64

22

COLLAR, COVER MOUNTING

83505-MN0-000

$6.32

23

BOLT, RECESSED (5X28)

90023-MM5-000

$2.80

24

BOLT (5X13)

90114-SG0-003

$5.04

25

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.78

25

WASHER, STOPPER

90483-041-000

$1.78

26

CLIP, WIRE (4X50)

94591-45000

$2.80

27

BAND, WIRE HARNESS

90650-MA6-720

$4.65

28

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

29

CLAMP, HARNESS (25MM)

90691-MEC-003

$1.85

30

SCREW, PAN (4X35)

93500-04035-0G

$0.38

31

WASHER, PLAIN (4MM)

94101-04800

$0.91

32

BOLT, FLANGE (6X18)

95701-06018-00

$1.50

33

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

34

BOLT, SOCKET (8X16)

96600-08016-07

$1.44

34

BOLT, SOCKET (8X16) This part replaces 96700-08016-07.

96600-08016-07

$1.44

35

FUSE, MINI (5A)

98200-40500

$1.12

36

FUSE, MINI (10A)

98200-41000

$1.22

37

FUSE, MINI (20A)

98200-42000

$1.12

38

FUSE, MINI (30A)

98200-43000

$1.62

39

NUT, FLANGE (4MM)

94050-04070

$1.21

40

CABLE, STARTER BATTERY

32401-MEC-020

$32.82

41

COVER, BATTERY TERMINAL

32405-MEC-000

$8.40

42

STAY ASSY., POWER RELAY

50320-MEC-000

$39.16

43

CLIP (2X60)

91410-679-000

$9.27
