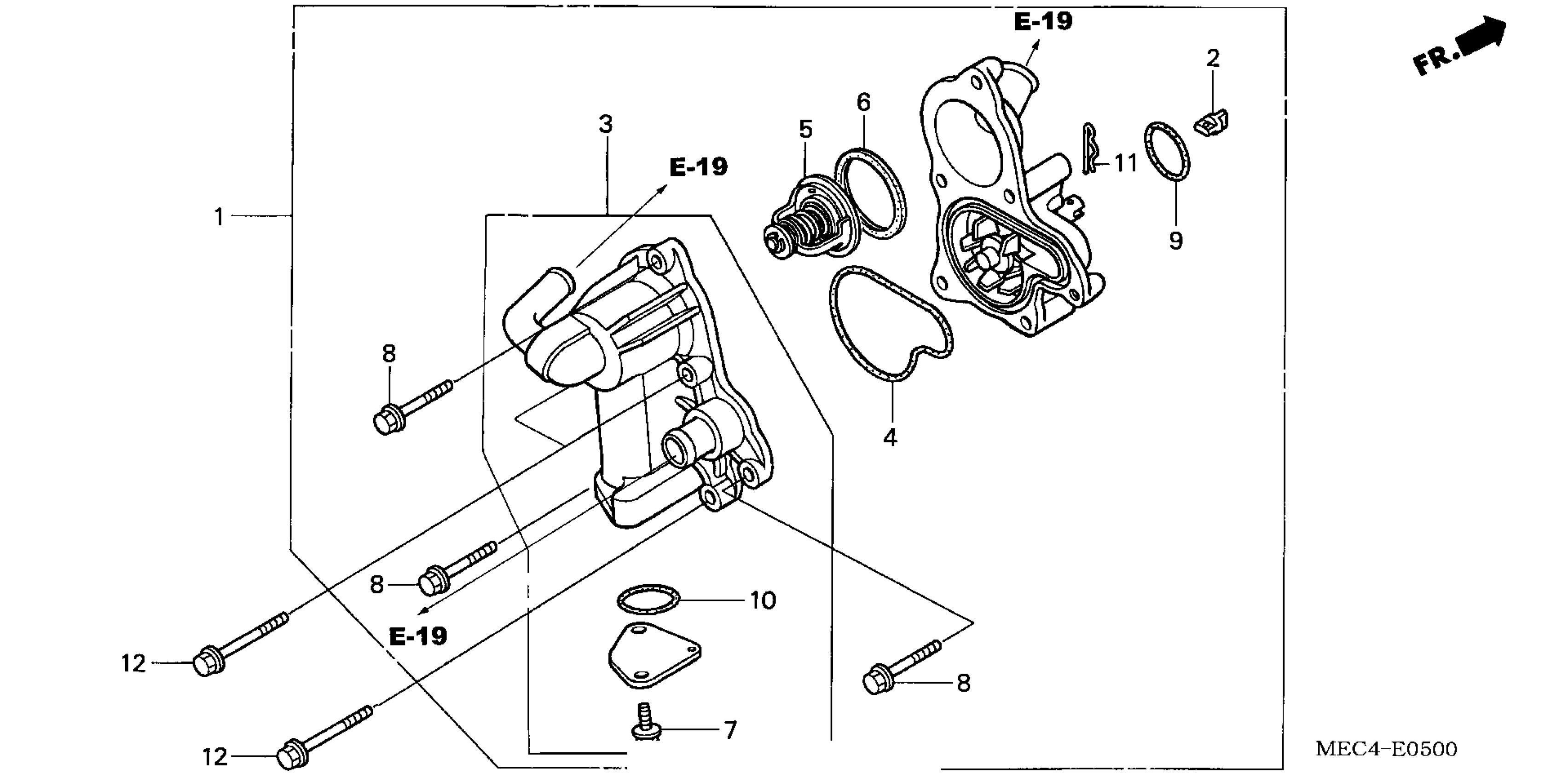

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 WATER PUMP Diagram

#

Description

Price

1

WATER PUMP ASSY.

19200-MEC-000

Unavailable

2

SHAFT, WATER PUMP JOINT

19217-MCA-000

$13.15

3

COVER, WATER PUMP

19220-MEC-300

Unavailable

4

GASKET, WATER PUMP COVER

19226-MCA-A00

$6.19

5

THERMOSTAT ASSY. (NIPPON THERMOSTAT) This part replaces 19300-P08-014.

19301-PAA-306

$49.75

5

THERMOSTAT ASSY. (NIPPON THERMOSTAT) This part replaces 19301-P08-316.

19301-PAA-306

$49.75

6

RUBBER, THERMOSTAT

19305-MCA-A00

$8.78

7

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

8

BOLT, FLANGE (6X25)

90121-MV9-670

$2.92

9

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

10

O-RING (31.5X2.0) This part replaces 91304-MCA-A00.

91304-MCA-A02

$2.30

11

PIN, LOCK (12MM)

94251-12000

$1.49

12

BOLT, FLANGE (6X65)

95701-06065-08

$2.19
