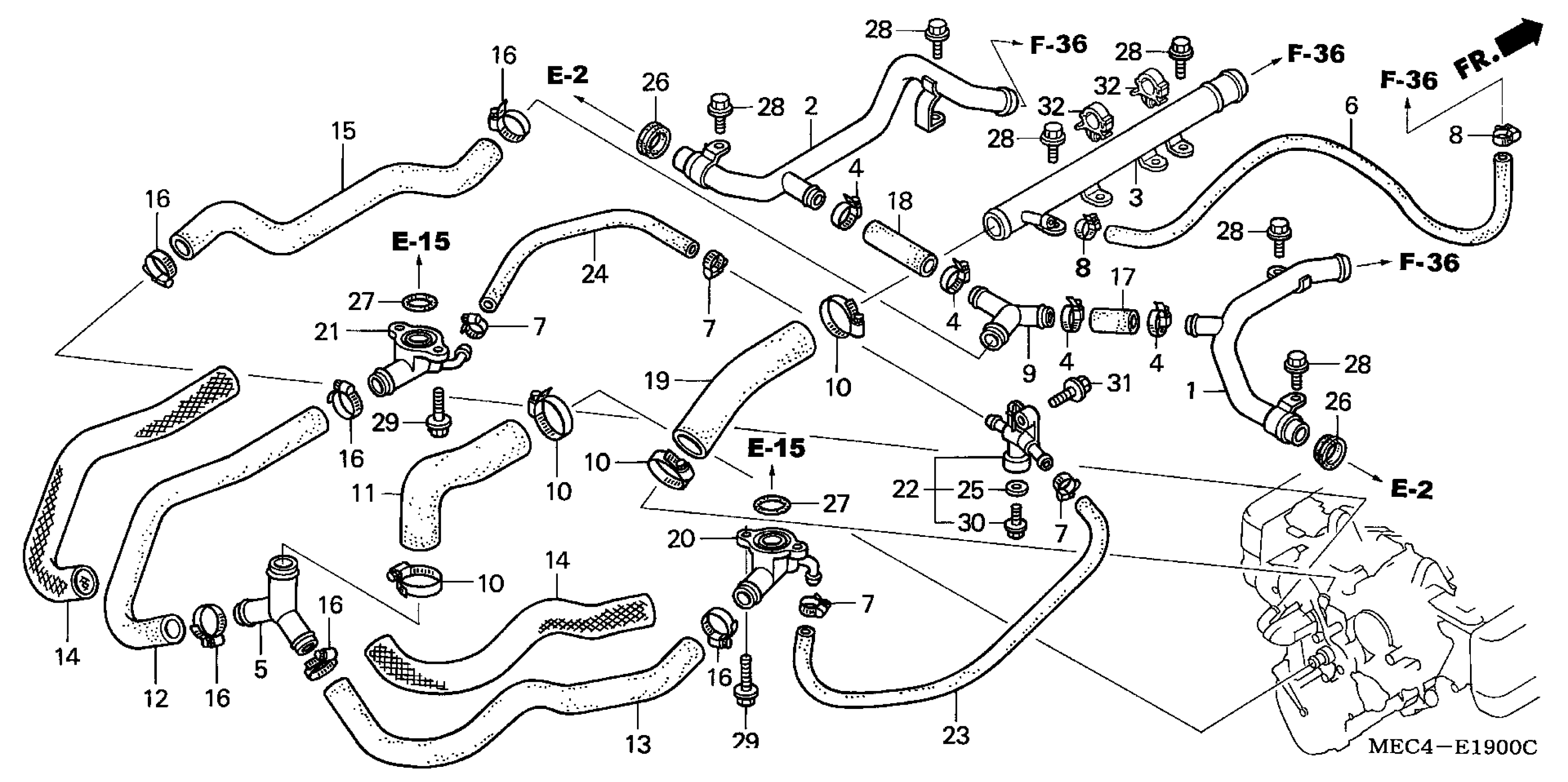

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 WATER PIPE Diagram

#

Description
Price

1

PIPE, R. WATER

19410-MEC-000

$94.48

2

PIPE, L. WATER

19420-MEC-000

Unavailable

3

PIPE, WATER RETURN

19430-MEC-010

$98.98

4

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

5

JOINT, THREE WAY

19506-MCA-000

$14.08

6

HOSE A, BREATHER

19506-MEC-000

Unavailable

7

CLAMP, WATER HOSE

19507-MAL-600

$5.69

8

CLAMP, RADIATOR HOSE

19507-MAT-000

$10.76

9

JOINT, THREE WAY

19507-MCA-000

$8.51

10

CLAMP, RADIATOR HOSE

19509-MM5-003

$13.58

11

HOSE A, WATER

19511-MEC-000

$6.25

12

HOSE B, WATER

19512-MEC-000

$9.07

13

HOSE C, WATER

19513-MEC-000

$9.85

14

GUARD, WATER HOSE

19515-MEC-000

$51.18

15

HOSE A, BYPASS

19516-MEC-000

Unavailable

16

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

17

HOSE B, BYPASS

19517-MEC-000

Unavailable

18

HOSE C, BYPASS

19518-MEC-000

Unavailable

19

HOSE, WATER RETURN

19521-MEC-000

$15.84

20

JOINT, R. WATER HOSE

19710-MCA-010

$18.62

21

JOINT, L. WATER HOSE

19720-MEC-000

$13.74

22

JOINT, DRAIN

19730-MEC-000

Unavailable

23

HOSE A, DRAIN

19732-MCA-010

$8.52

24

HOSE B, DRAIN

19733-MEC-000

Unavailable

25

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

26

SEAL, WATER PIPE (22.5MM)

91316-MCA-A00

$4.35

27

O-RING (23X2.4)

91317-MCA-A00

$2.62

28

BOLT, FLANGE (6X16)

90102-KFE-700

$2.00

29

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

30

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

31

BOLT, SPECIAL (6X17)

90085-MCZ-000

$2.13

32

CLIP, RETURN HOSE

53781-SE0-952

$7.57
