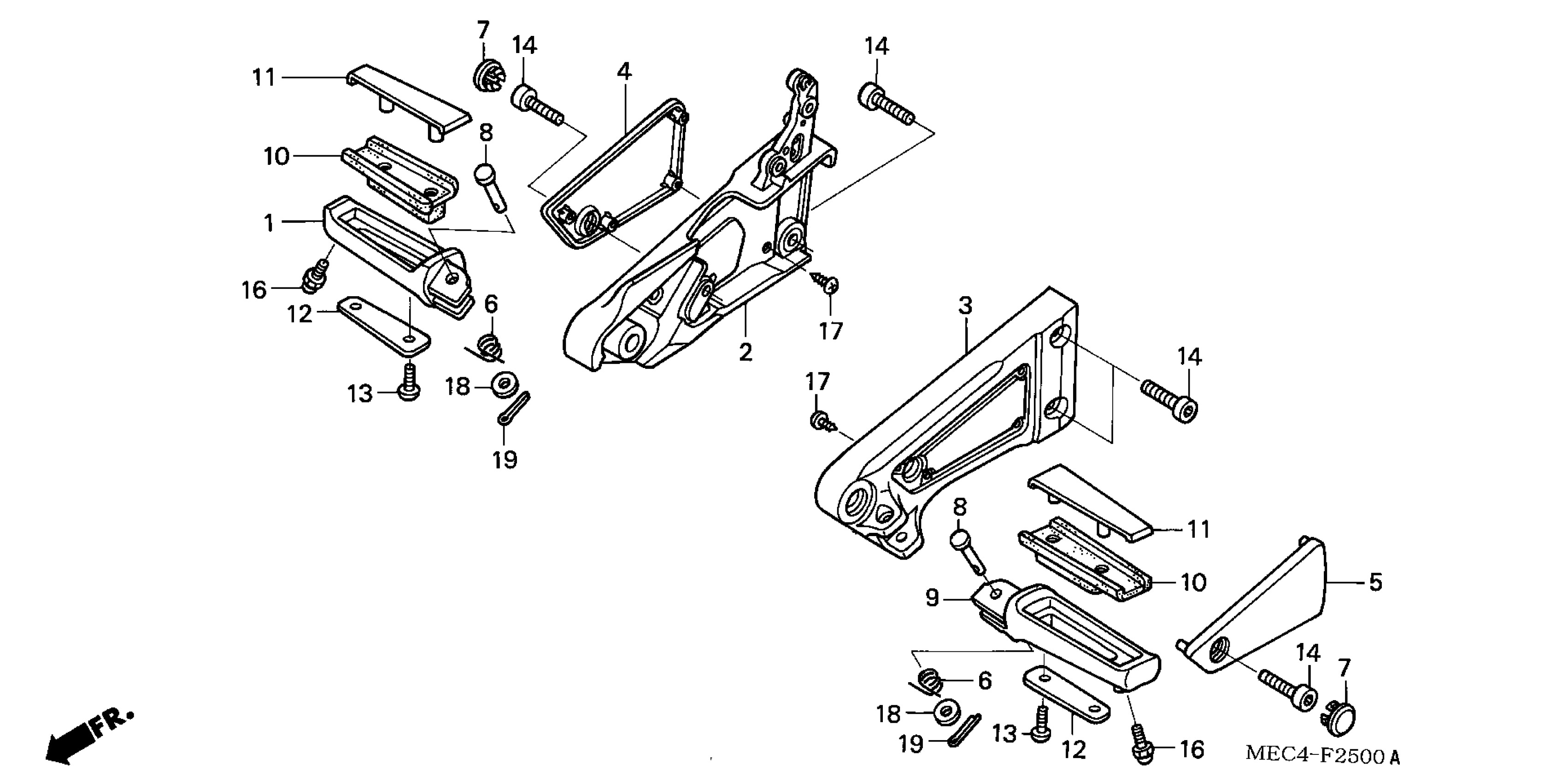

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 STEP Diagram

ARM, R. STEP

50612-MEC-000

Unavailable

BRACKET, R. STEP

50613-MEC-000

Unavailable

BRACKET, L. STEP

50614-MEC-000

Unavailable

COVER, R. STEP BRACKET

50615-MEC-670

Unavailable

COVER, L. STEP BRACKET

50616-MEC-670

Unavailable

SPRING, STEP RETURN

50617-MEC-670

Unavailable

CAP, STEP BRACKET COVER

50618-MEC-670

Unavailable

PIN, STEP BAR

50639-ML0-010

$5.22

ARM, L. STEP

50642-MEC-000

Unavailable

RUBBER, STEP

50661-MEC-000

Unavailable

PLATE A, STEP RUBBER

50662-MEC-000

Unavailable

PLATE B, STEP RUBBER

50663-MEC-000

Unavailable

BOLT, SPECIAL (5X14)

90118-MBW-000

$3.04

BOLT, SOCKET (8X22)

90157-ME9-000

$5.72

BOLT, CAP (6X12)

92501-06012-0A

$2.41

SCREW, TAPPING (4X6)

93903-24020

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49
