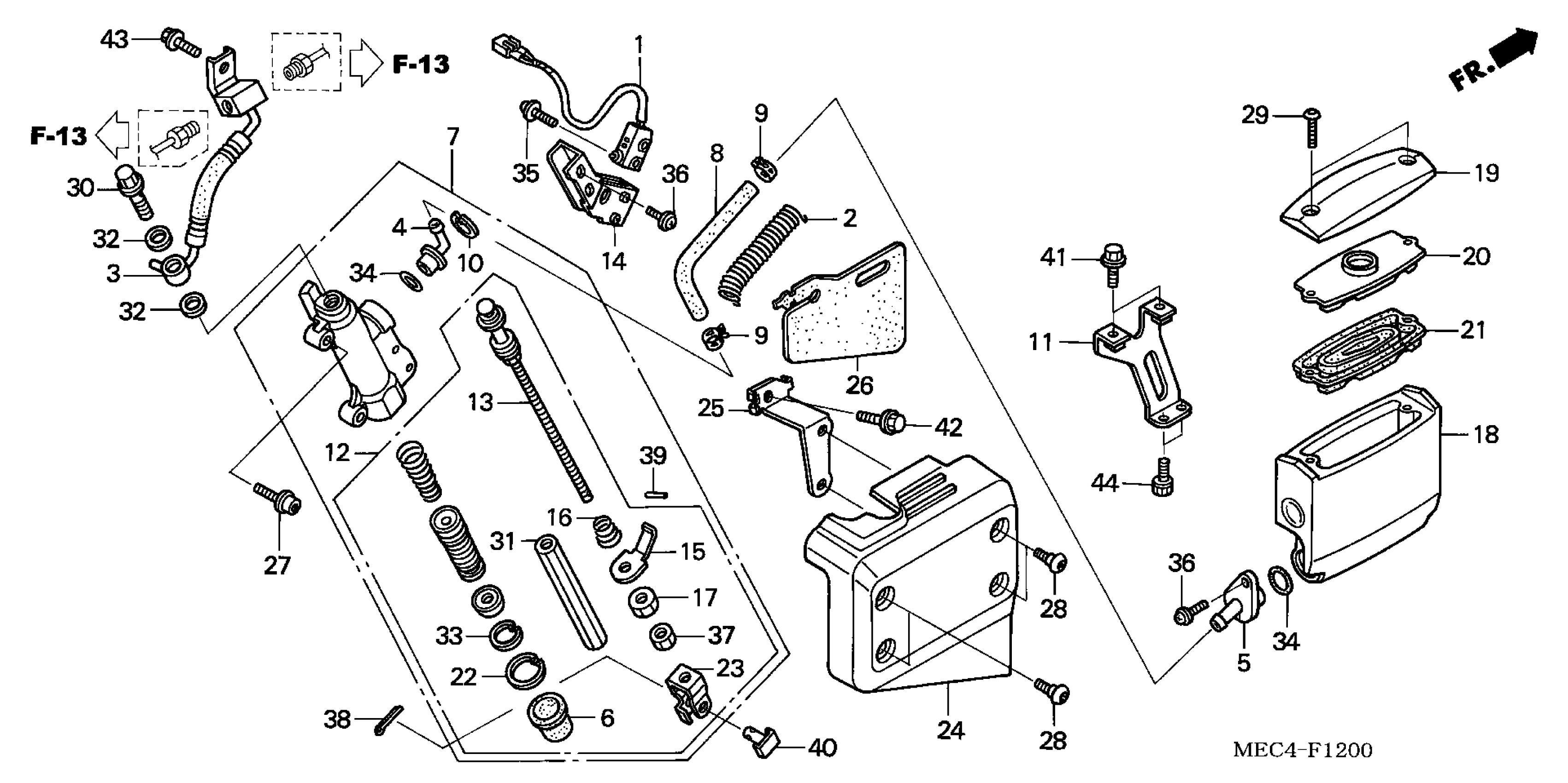

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., RR. STOP

35350-MEC-000

Unavailable

2

SPRING, MASTER CYLINDER HOSE

43156-MEC-006

$2.35

3

HOSE A, RR. BRAKE

43310-MEC-003

$23.65

4

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$8.94

5

CONNECTOR, RR. BRAKE MASTER CYLINDER

43503-MAH-671

$10.94

6

BOOT

43504-MB2-006

$9.01

7

MASTER CYLINDER SUB-ASSY., RR.

43510-MEC-016

$54.91

8

HOSE, RR. BRAKE MASTER CYLINDER

43512-MEC-006

Unavailable

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

10

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.55

11

STAY, MASTER CYLINDER RESERVE TANK

43518-MEC-000

$8.07

12

PISTON SET, RR. MASTER CYLINDER

43520-MEC-006

$40.75

13

ROD, PUSH

43530-MEC-006

$10.26

14

BRACKET, SWITCH

43535-MEC-006

$11.12

15

PLATE, SWITCH (NISSIN)

43537-MN5-006

$4.00

16

SPRING, SWITCH

43538-MCA-006

$0.97

17

NUT, SWITCH PLATE (NISSIN)

43539-MN5-006

$3.75

18

CUP SUB-ASSY., RR. MASTER CYLINDER

43540-MEC-006

Unavailable

19

CAP, MASTER CYLINDER

43513-MEC-006

Unavailable

20

PLATE, DIAPHRAGM

45518-MEC-006

Unavailable

21

DIAPHRAGM

45520-MEC-006

$13.35

22

CIRCLIP

46182-500-013

$4.46

23

JOINT, BRAKE ROD

46504-MT4-006

$9.03

24

COVER, RR. BRAKE MASTER CYLINDER *NHA01M* (TSUNAMI GRAY METALLIC)

46550-MEC-000ZA

Unavailable

25

STAY, RR. MASTER CYLINDER COVER

46551-MEC-000

$7.29

26

RUBBER, RR. MASTER CYLINDER HEAT GUARD

46552-MEC-000

$4.48

27

BOLT, FLANGE SOCKET (6X20)

90097-MY6-880

$4.09

28

SCREW, SPECIAL (5X10.5)

90114-MCH-000

$2.65

29

SCREW, BUTTON HEAD (4X12)

90116-MEC-006

$3.17

30

BOLT, OIL (10X22)

90145-MS9-612

$6.82

31

NUT, SPECIAL (8MM)

90315-MEC-006

$5.46

32

WASHER, OIL BOLT

90545-300-000

$3.72

33

CIRCLIP, PISTON

90651-MBG-006

$2.59

34

O-RING (14.8X2.4)

91212-422-006

Unavailable

35

SCREW-WASHER (4X14)

93891-04014-08

$0.86

36

SCREW-WASHER (4X12)

93893-04012-07

$1.22

36

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

37

NUT, HEX. (8MM)

94002-08000-0S

$1.19

37

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.19

38

PIN, SPLIT (2.0X15)

94201-20150

$0.94

39

PIN, SPRING (2X10)

94305-20102

$0.80

40

PIN D, JOINT

95015-54000

$3.95

41

BOLT, FLANGE SOCKET (6X12)

90009-MF5-000

$3.35

42

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

43

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

44

BOLT, SOCKET (6X12)

96600-06012-00

$1.58
