Description

Price

1

RADIATOR (UPPER)

19010-MEC-003

Unavailable

2

NUT, SETTING

19014-KEA-003

$3.10

3

SHROUD, R.

19015-MEC-003

$67.38

4

SHROUD, L.

19016-MEC-003

$67.38

5

FAN, COOLING

19020-MCW-D01

$52.39

6

RUBBER, RADIATOR

19020-MEC-000

$10.85

7

MOTOR ASSY., R. FAN

19030-MEC-003

Unavailable

8

CAP, RADIATOR

19037-GEE-710

$30.28

9

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

11

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

12

RADIATOR (LOWER)

19060-MEC-003

Unavailable

13

TANK, RADIATOR RESERVE

19101-MEC-000

$38.15

14

CAP, RESERVE TANK

19108-KK4-000

Unavailable

15

ADAPTER, RESERVE CAP

19113-KR1-760

$15.77

16

MOTOR ASSY., L. FAN

19130-MEC-003

Unavailable

17

HOSE A, RADIATOR (UPPER)

19501-MEC-000

Unavailable

18

HOSE B, RADIATOR (UPPER)

19502-MEC-000

$3.18

19

HOSE C, RADIATOR (UPPER)

19503-MEC-000

$4.39

20

HOSE, RADIATOR (LOWER)

19504-MEC-000

Unavailable

21

CLAMP, WATER HOSE

19505-ML3-770

$7.08

22

CLAMP, RADIATOR HOSE

19507-MAT-000

$10.76

23

JOINT, HOSE (THREE-WAY)

19507-MEC-000

$8.92

24

HOSE, JOINT

19508-MEC-000

$5.44

25

CLAMP, RADIATOR HOSE

19509-MM5-003

$13.58

27

HOSE, BREATHER JOINT

19522-MEC-000

Unavailable

28

STAY, R. RADIATOR

19535-MEC-000

$30.51

29

STAY, L. RADIATOR

19545-MEC-000

$83.92

30

HOSE C, BREATHER

19570-MEC-000

Unavailable

31

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

32

SCREW, PAN (5MM)

91508-MM5-000

$4.08

33

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

34

CLIP (2X70)

91413-679-000

$9.23

35

CLIP, BRUSH

91540-MEC-000

$3.64

36

BOLT-WASHER (6X14)

93401-06014-07

$1.62

37

CLIP, TUBE (B8)

95002-02080

$1.80

38

CLIP, TUBE (B10)

95002-02100

$1.90

39

BULK HOSE, VACUUM (4.5X1000) (4.5X850)

95005-45001-30M

Unavailable

40

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

41

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

42

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

43

BOLT, FLANGE (6X30)

95801-06030-07

$1.89

45

PETCOCK ASSY., DRAIN

19070-MEC-003

$10.07

46

O-RING (9.8X1.9)

91353-MEC-003

$3.42

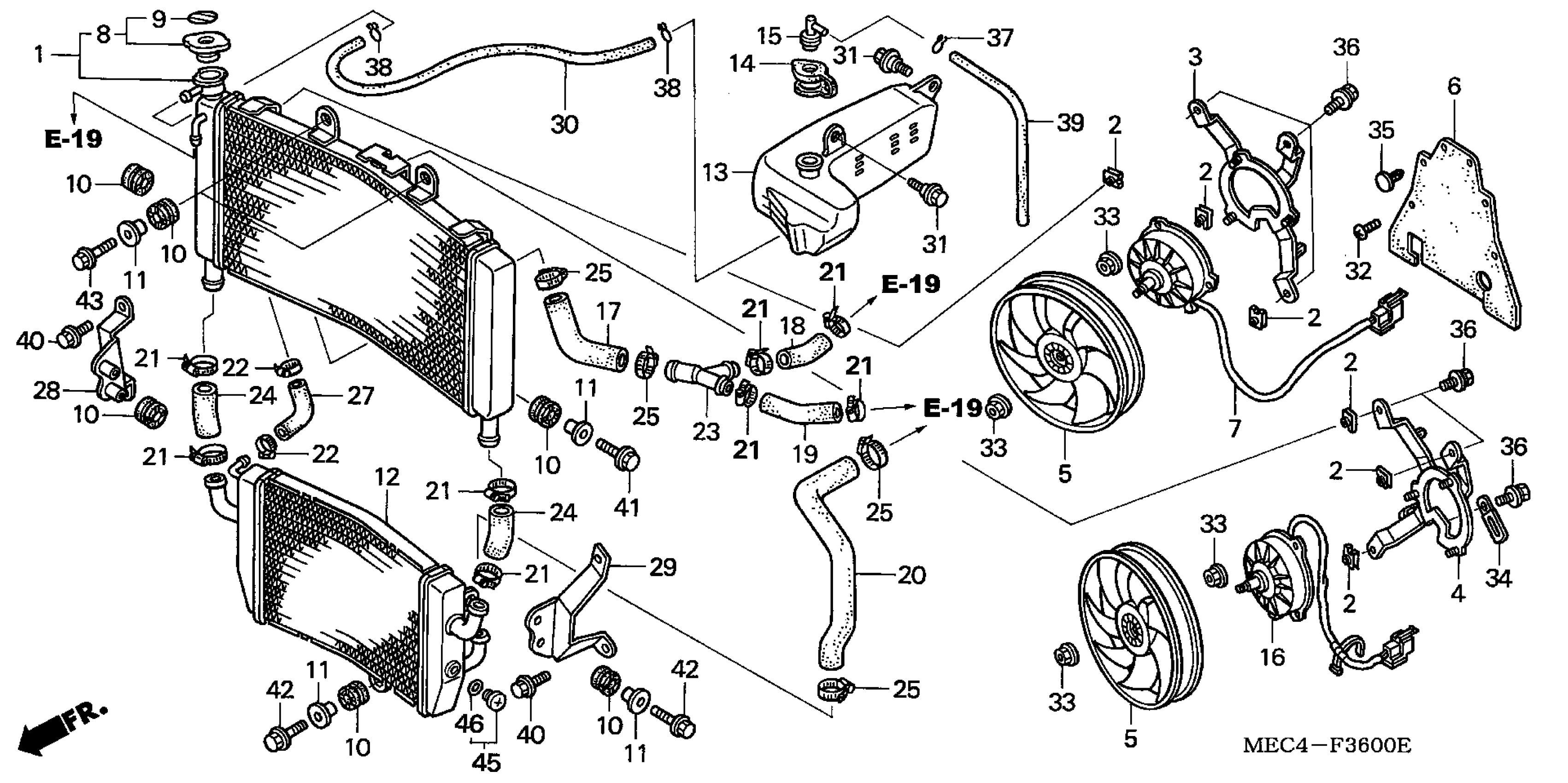

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 RADIATOR Diagram
