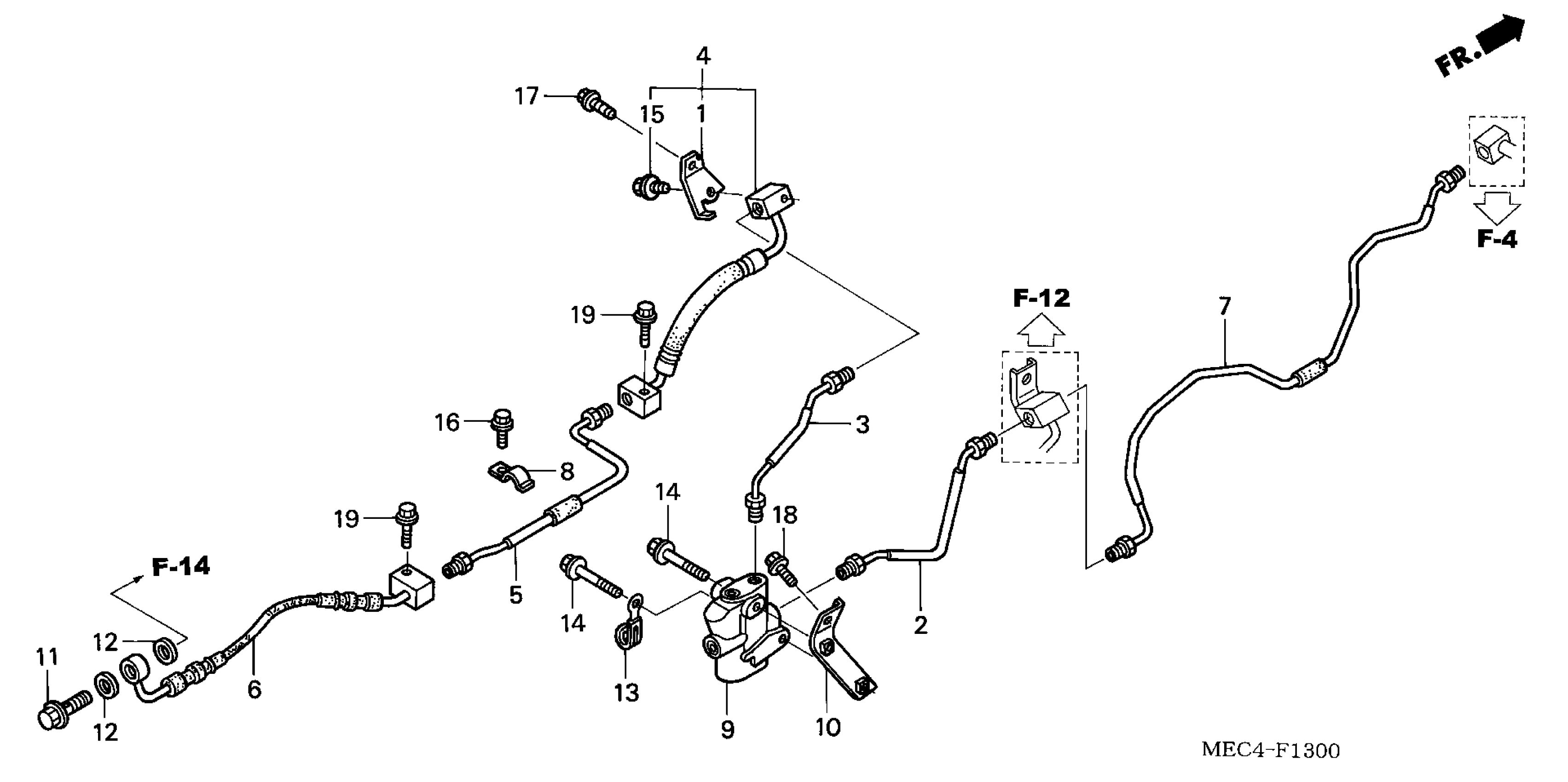

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 PROPORTION CONTROL VALVE Diagram

STAY, HOSE END

43156-MEC-000

$4.11

PIPE, PCV JOINT

43311-MEC-000

$6.33

PIPE A, RR. BRAKE

43312-MEC-000

$29.00

HOSE B, RR. BRAKE

43313-MEC-003

$42.66

PIPE B, RR. BRAKE

43314-MEC-000

$5.85

HOSE C, RR. BRAKE

43315-MEC-003

Unavailable

PIPE, RR. BRAKE MASTER CYLINDER

43320-MEC-000

$4.43

CLAMP, RR. BRAKE PIPE

43453-MEC-A00

Unavailable

VALVE ASSY., PROPORTIONING CONTROL This part replaces 46400-MEC-006.

46400-MEC-016

$107.18

VALVE ASSY., PROPORTIONING CONTROL

46400-MEC-016

$107.18

STAY, P.C.V.

50328-MEC-000

$8.61

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CLIP, WIRE HARNESS

91405-MG1-000

$2.31

BOLT, FLANGE (6X40)

95801-06040-07

$1.89

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (6X12)

90123-MCH-A00

$1.49

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

BOLT, FLANGE (6X25)

90124-MCH-A00

$1.49
