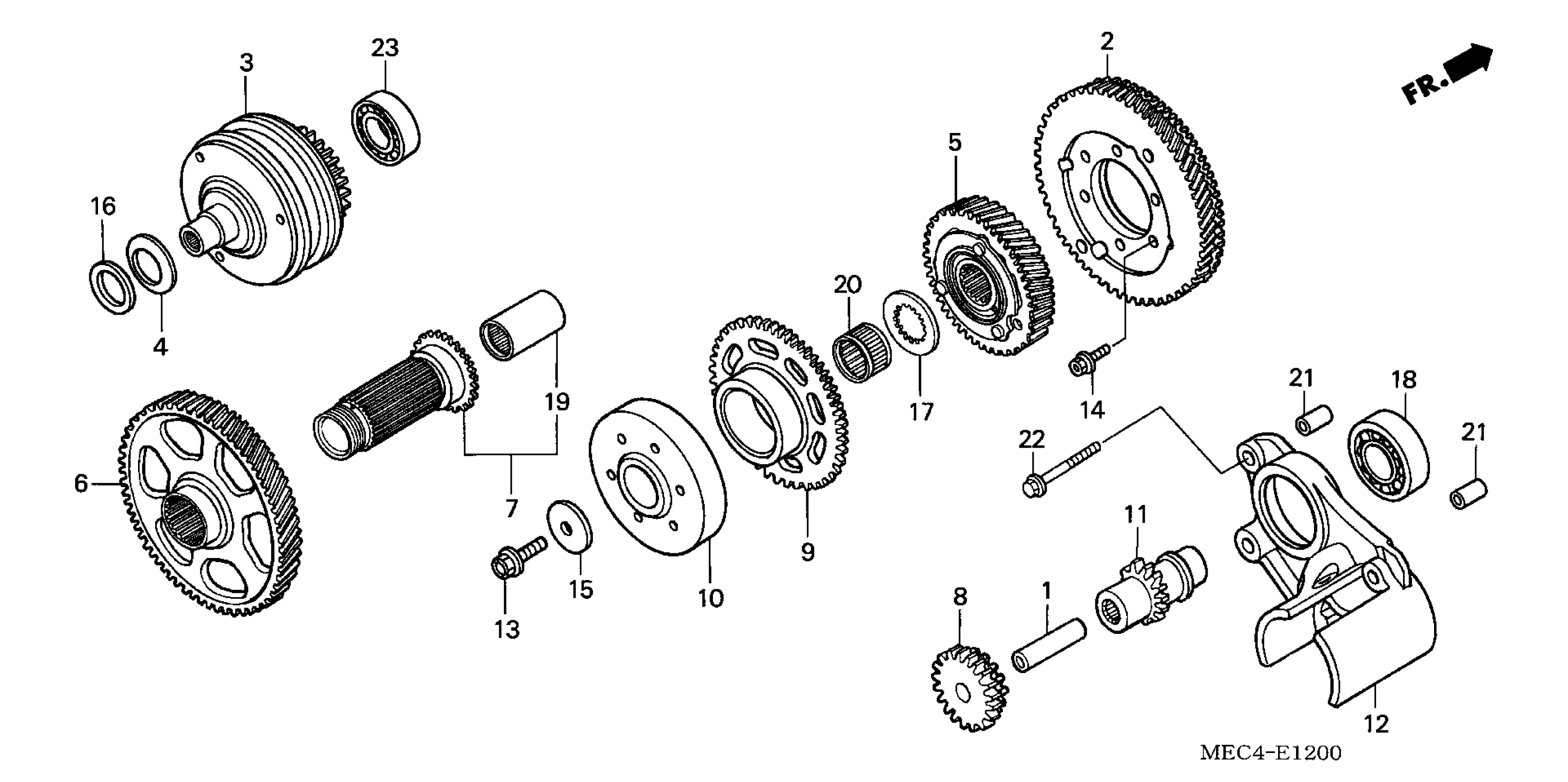

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 PRIMARY DRIVE GEAR Diagram

#

Description
Price

1

PIN, PISTON

13111-892-000

$5.16

2

GEAR, ALTERNATOR DRIVE (72T)

13320-MCA-780

$227.45

3

GEAR ASSY., ALTERNATOR DRIVEN (28T)

13430-MCA-780

$591.36

4

SPRING, THRUST

13534-MCA-000

Unavailable

5

GEAR, PRIMARY DRIVE (49T)

23110-MN5-010

$254.96

6

GEAR, PRIMARY DRIVEN (78T)

23121-MCA-000

$105.70

7

BOSS, PRIMARY DRIVEN GEAR (33T)

23130-MCA-000

$109.14

8

GEAR, STARTER REDUCTION (17/18T)

28106-MCA-000

$76.74

9

GEAR, STARTING DRIVEN (46T)

28110-MCA-000

$130.90

10

CLUTCH OUTER, STARTING

28125-MN5-014

$262.64

11

GEAR, STARTER DRIVE (11T)

28141-MCA-000

$62.94

12

HOLDER, STARTER DRIVE GEAR

28151-MCA-300

Unavailable

13

BOLT, UBS (12X30) (LEFT HAND THREAD)

90005-MCA-000

$4.94

14

BOLT, HEX. (8X25)

90108-KV3-000

$2.20

15

WASHER (12.2X39X4)

90402-MCA-A01

$4.45

16

WASHER, THRUST (25MM)

90456-MA6-000

$2.42

17

WASHER, SPLINE (28MM)

90493-MN5-000

$19.97

18

BEARING, RADIAL BALL (6904) (NTN)

91007-MN5-003

$14.42

19

BEARING, NEEDLE (28X35X60)

91024-MN5-003

$45.20

20

BEARING, NEEDLE (36X41X18.3)

91027-MCA-003

$12.81

21

PIN, DOWEL (8X14)

94301-08140

$2.04

22

BOLT, FLANGE (6X32)

95701-06032-08

$1.71

23

BEARING, RADIAL BALL (6004U)

96140-60040-00

Unavailable
