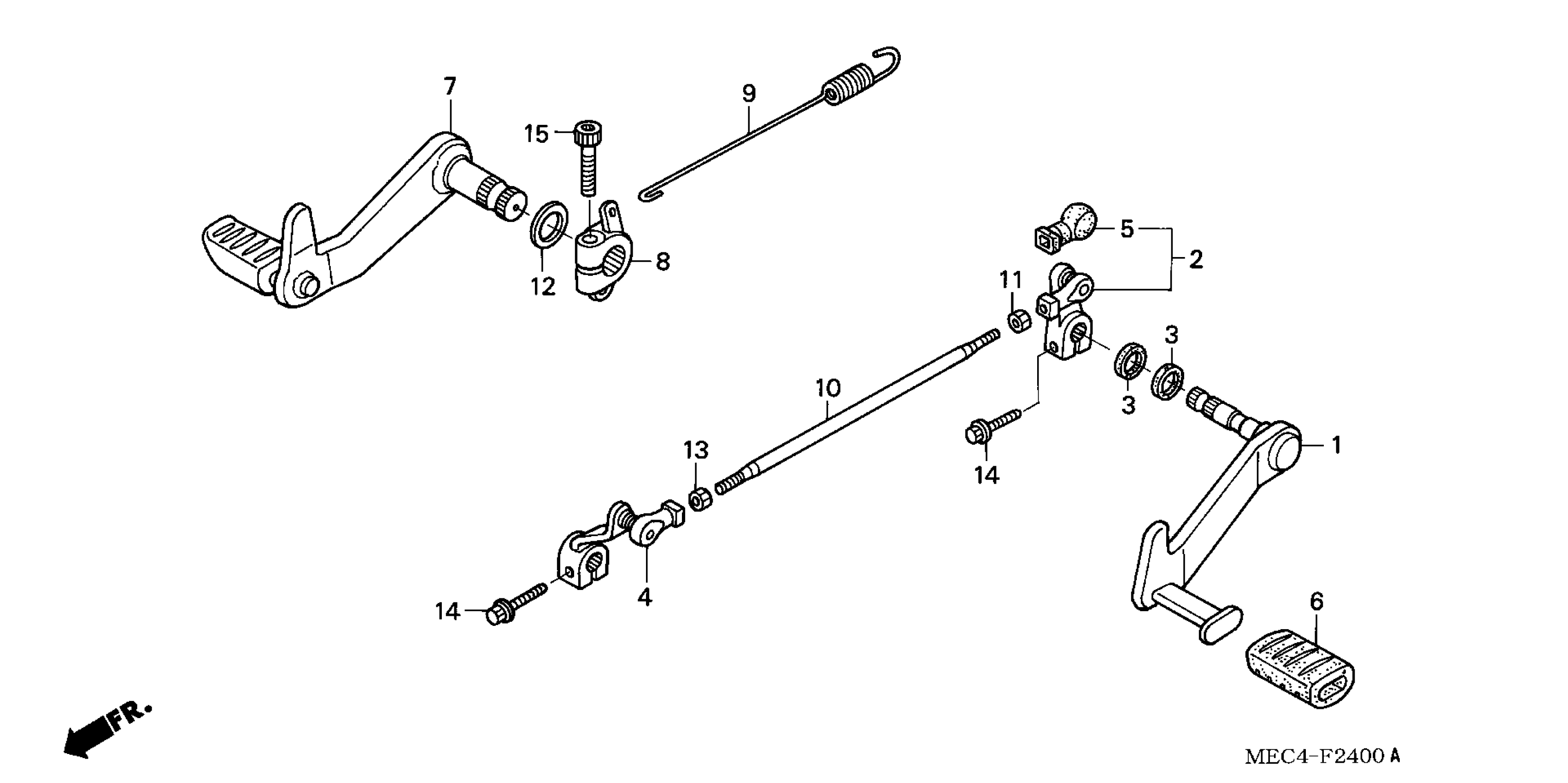

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 PEDAL Diagram

PEDAL, GEARSHIFT

24701-MEC-000

Unavailable

ARM A, GEARSHIFT

24705-MEC-000

Unavailable

RUBBER, DUST SEAL

24706-MK3-770

$4.48

ARM B, GEARSHIFT

24710-MEC-010

Unavailable

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, CHANGE PEDAL

24781-MEC-670

Unavailable

PEDAL, RR. BRAKE

46500-MEC-000

Unavailable

ARM, RR. BRAKE

46505-MEC-000

$31.85

SPRING, BRAKE PEDAL

46514-MEC-000

$6.79

BOLT, TIE ROD

90065-KR3-000

$11.12

NUT B, TIE ROD (LEFT HAND THREAD)

90201-KV3-700

$2.31

WASHER, THRUST (17MM)

90466-166-600

$3.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, SOCKET (8X28)

96600-08028-00

$2.02
