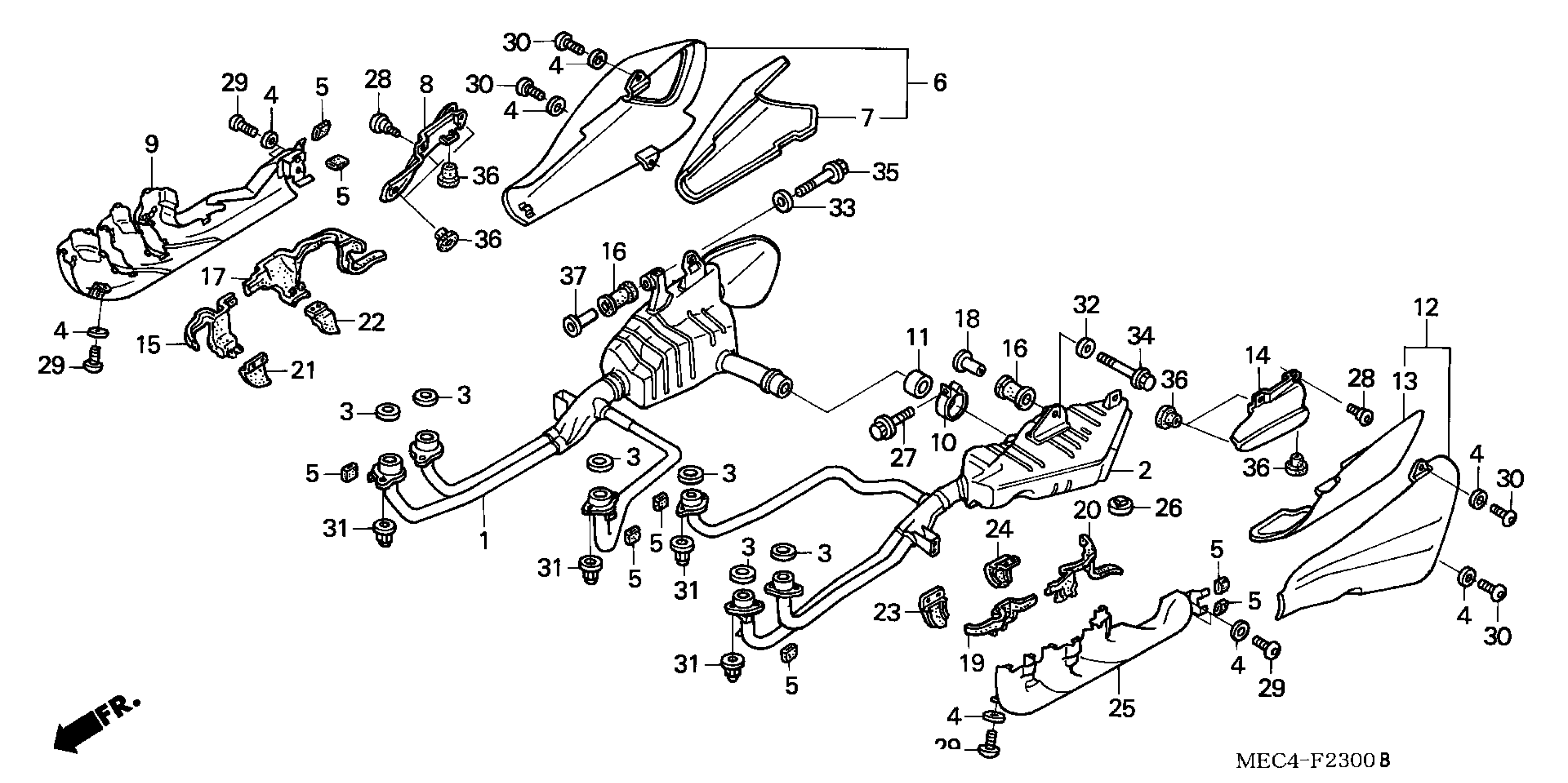

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 MUFFLER Diagram

MUFFLER, R. EX.

18100-MEC-013

Unavailable

MUFFLER, L. EX.

18200-MEC-003

$1,518.80

GASKET, EX. PIPE

18291-MN5-650

$3.77

GASKET, PROTECTOR

18293-MCA-780

$4.85

RUBBER, PROTECTOR

18293-MN0-000

$2.13

COVER, R. MUFFLER

18300-MEC-670

Unavailable

HEAT GUARD, R. MUFFLER

18317-MEC-000

Unavailable

PLATE, R. MUFFLER HEAT GUARD

18320-MEC-670

Unavailable

COVER, R. EX. PIPE

18350-MEC-671

Unavailable

BAND, L. RR. MUFFLER

18376-MCF-003

$35.02

GASKET, RR. EX.

18393-MCF-003

$16.96

COVER, L. MUFFLER

18400-MEC-670

Unavailable

HEAT GUARD, L. MUFFLER

18417-MEC-000

Unavailable

PLATE, L. MUFFLER HEAT GUARD

18420-MEC-670

Unavailable

RUBBER A, R. HEAT GUARD (UPPER)

18421-MEC-000

$16.67

RUBBER, MUFFLER MOUNTING

18421-MN5-000

$5.12

RUBBER B, R. HEAT GUARD (UPPER)

18422-MEC-000

$16.67

COLLAR, MUFFLER MOUNTING

18422-MN5-000

$9.05

RUBBER A, L. HEAT GUARD (UPPER)

18423-MEC-000

$16.67

RUBBER B, L. HEAT GUARD (UPPER)

18424-MEC-000

$16.67

RUBBER A, R. HEAT GUARD (LOWER)

18425-MEC-000

$16.56

RUBBER B, R. HEAT GUARD (LOWER)

18426-MEC-000

$16.56

RUBBER A, L. HEAT GUARD (LOWER)

18427-MEC-000

$16.56

RUBBER B, L. HEAT GUARD (LOWER)

18428-MEC-000

$16.56

COVER, L. EX. PIPE

18450-MEC-671

Unavailable

RUBBER, STAND STOPPER

50524-MEC-000

$3.48

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57

SCREW, PAN (5X13)

90112-MBS-000

$2.43

BOLT, SPECIAL (6X12)

90112-MCA-000

$2.00

BOLT, SPECIAL (6X12)

90128-MEC-000

$1.49

NUT, SPECIAL (6MM)

90304-HB3-771

$6.07

WASHER (8MM)

90465-MC4-000

$2.51

WASHER, PLAIN (8MM)

94103-08000

$1.49

BOLT, FLANGE (8X55)

95701-08055-00

$2.28

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

RUBBER, EX. COVER

18325-MEC-000

$2.89

COLLAR, MUFFLER MOUNTING

18430-MEC-000

Unavailable
