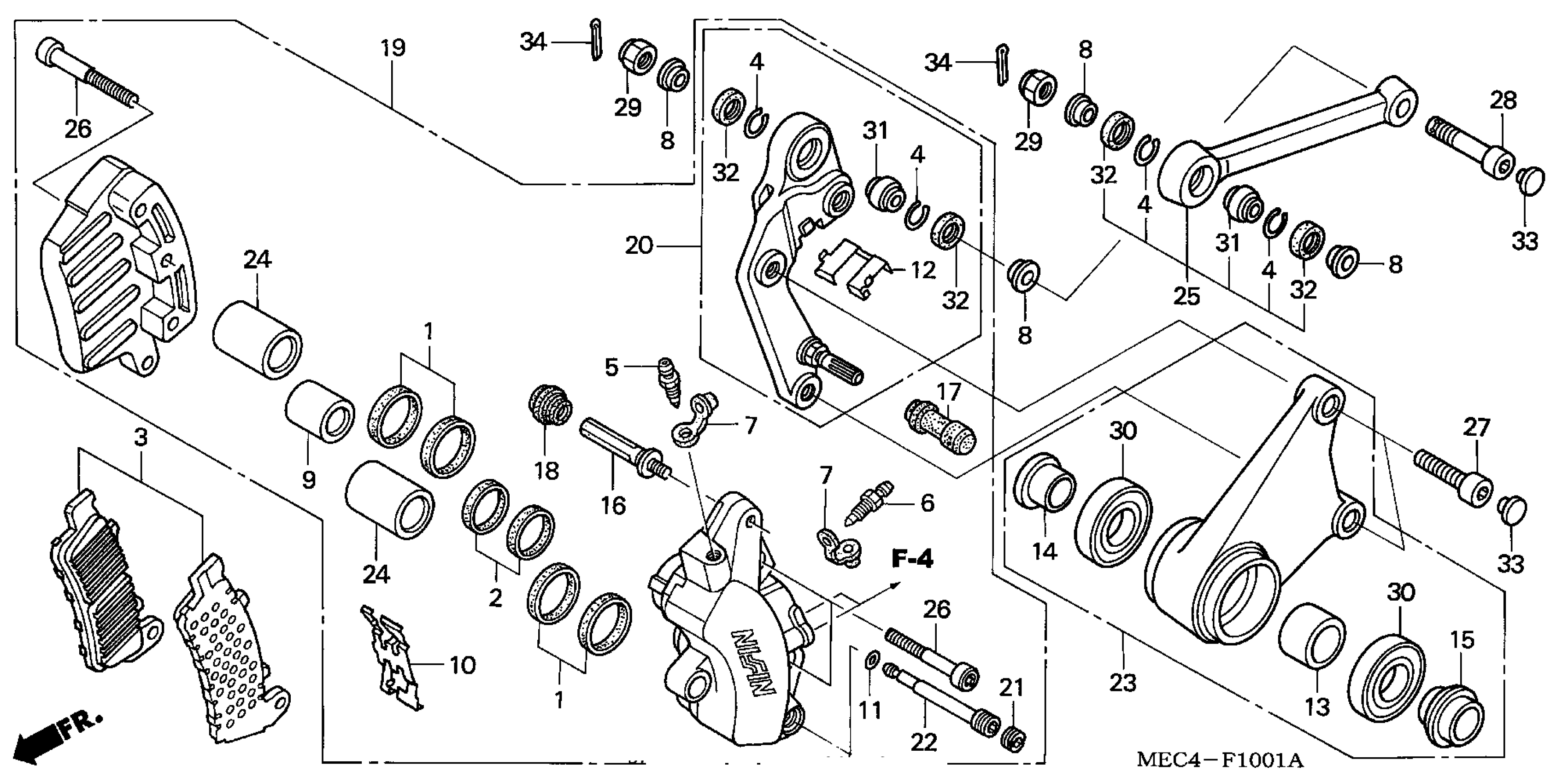

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 LEFT FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06431-MA3-405

$7.00

2

SEAL SET, PISTON

06451-MZ2-405

$11.51

3

PAD SET, FR.

06455-MBG-006

$43.83

4

RING, TORQUE LINK STOPPER

43117-MR7-000

$4.46

5

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.04

6

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

7

CAP, BLEEDER

43353-461-771

$4.83

8

COLLAR, TORQUE LINK

43433-MW4-000

Unavailable

9

PISTON A (22X27)

45107-MAJ-G41

$36.21

10

SPRING, PAD

45108-MZ2-016

$7.88

11

RING, STOPPER

45111-MAJ-G41

$3.63

12

RETAINER, BRACKET

45112-MZ2-006

$8.14

13

COLLAR, FR. CALIPER STAY DISTANCE

45117-MEC-000

$2.90

14

COLLAR A, FR. CALIPER STAY

45118-MEC-000

$8.54

15

COLLAR B, FR. CALIPER STAY

45119-MEC-000

$10.41

16

BOLT A, PIN

45131-ML7-921

$14.17

17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

18

BOOT B

45133-MA3-006

$5.21

19

CALIPER SUB-ASSY., L. FR.

45150-MEC-006

Unavailable

20

BRACKET SUB-ASSY., L. FR. CALIPER

45190-MEC-006

$56.91

21

PLUG, PIN

45203-MCC-006

$2.66

22

PIN, HANGER

45215-MAJ-G41

$6.15

23

STAY ASSY., L. FR. CALIPER

45215-MEC-000

$237.59

24

PISTON B (27X35)

45218-MAJ-G41

$36.21

25

LINK ASSY., L. TORQUE

45440-MEC-A00

$165.81

26

BOLT, TORX (8X45)

90102-MCV-006

$2.78

27

BOLT, SOCKET (10X30)

90107-MEC-000

$3.77

28

BOLT, SOCKET (10X47)

90108-MEC-000

$5.25

29

NUT, U (10MM)

90306-KZ4-711

$3.58

30

BEARING, RADIAL BALL (69/22)

91054-MEC-003

$17.59

31

BEARING, SPHERICAL (10MM)

91074-MCP-901

$18.38

32

DUST SEAL (13X18X3) This part replaces 91272-KA3-711.

91272-KA3-712

Unavailable

33

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$3.95

34

PIN, COTTER (1.6X25) This part replaces 94201-15150.

94201-16250

$0.96

34

PIN, COTTER (1.6X25) This part replaces 94201-15200.

94201-16250

$0.96

34

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.96

34

PIN, COTTER (1.6X25) This part replaces 94201-16180.

94201-16250

$0.96

34

PIN, COTTER (1.6X25) This part replaces 94201-16200.

94201-16250

$0.96

34

PIN, COTTER (1.6X25)

94201-16250

$0.96
