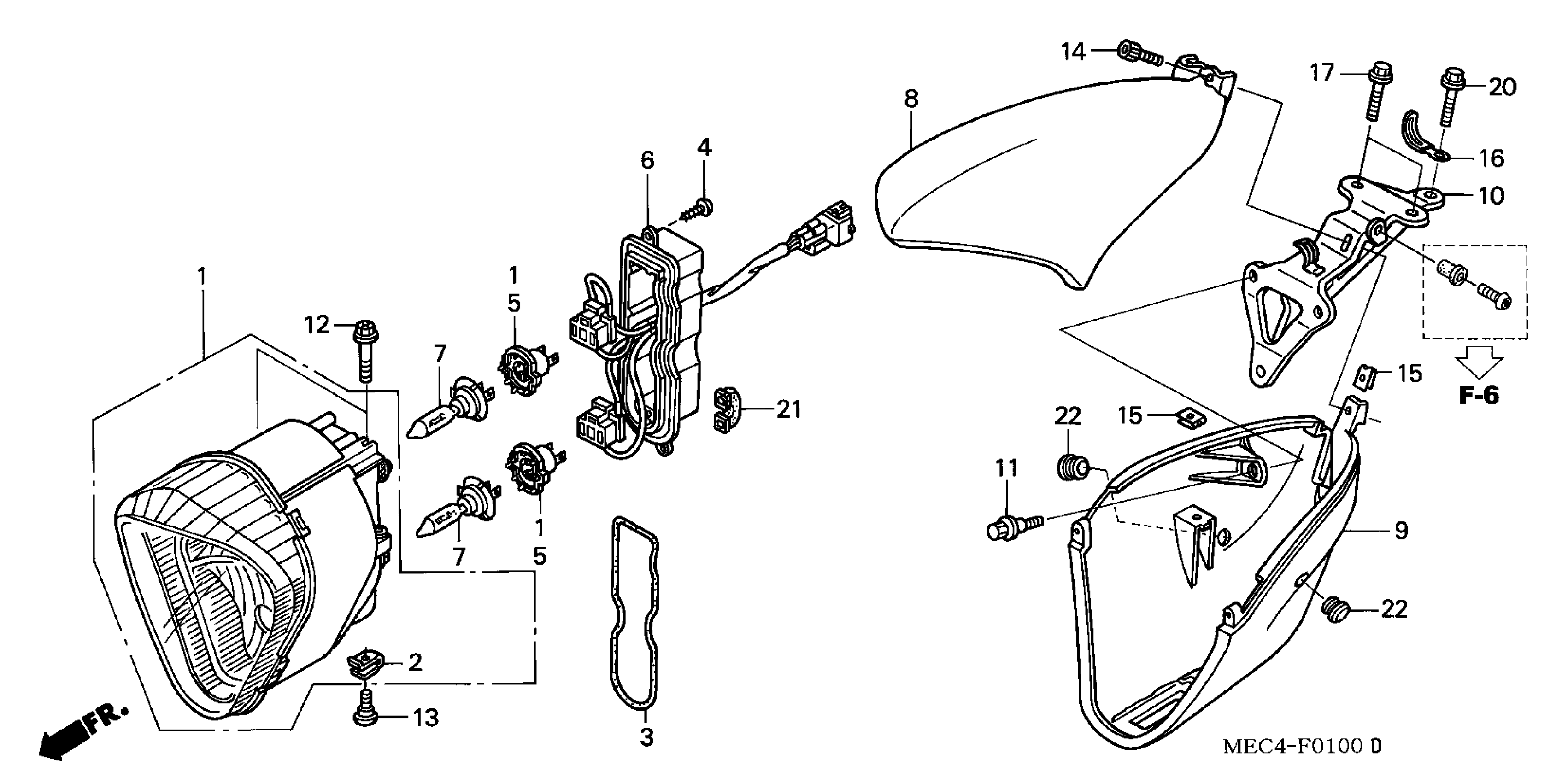

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 HEADLIGHT Diagram

HEADLIGHT UNIT

33102-MEC-013

Unavailable

NUT

33117-GBJ-013

$1.67

GASKET, SEAL

33123-MEC-003

Unavailable

SCREW, TAPPING (4X14)

33127-MEC-003

Unavailable

SOCKET, HEADLIGHT

33130-MAT-611

$16.61

SOCKET, HEADLIGHT

33140-MEC-003

Unavailable

BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)

34901-MAT-611

$27.40

CASE, HEADLIGHT (UPPER)

61301-MEC-000

Unavailable

CASE, HEADLIGHT (LOWER) *NH1* (BLACK)

61302-MEC-000ZA

Unavailable

CASE, HEADLIGHT (LOWER) *P44P* (PEARL CHROMIUM PURPLE)

61302-MEC-000ZB

Unavailable

CASE, HEADLIGHT (LOWER) *R287M* (BLOODSTONE RED METALLIC)

61302-MEC-000ZC

Unavailable

STAY, HEADLIGHT

61311-MEC-000

$275.21

BOLT, FLANGE (6MM)

90111-GE2-760

$5.44

BOLT, FLANGE (5X18)

90112-MAW-620

$1.51

SCREW, SPECIAL (5X14)

90114-KPB-750

$2.31

BOLT, SOCKET (5X20)

90116-KCY-671

$5.80

NUT, CLIP (5MM)

90677-KAN-961

$4.07

CLIP (2X60)

91410-679-000

$10.06

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

TUBE

33706-KPB-003

$2.03
