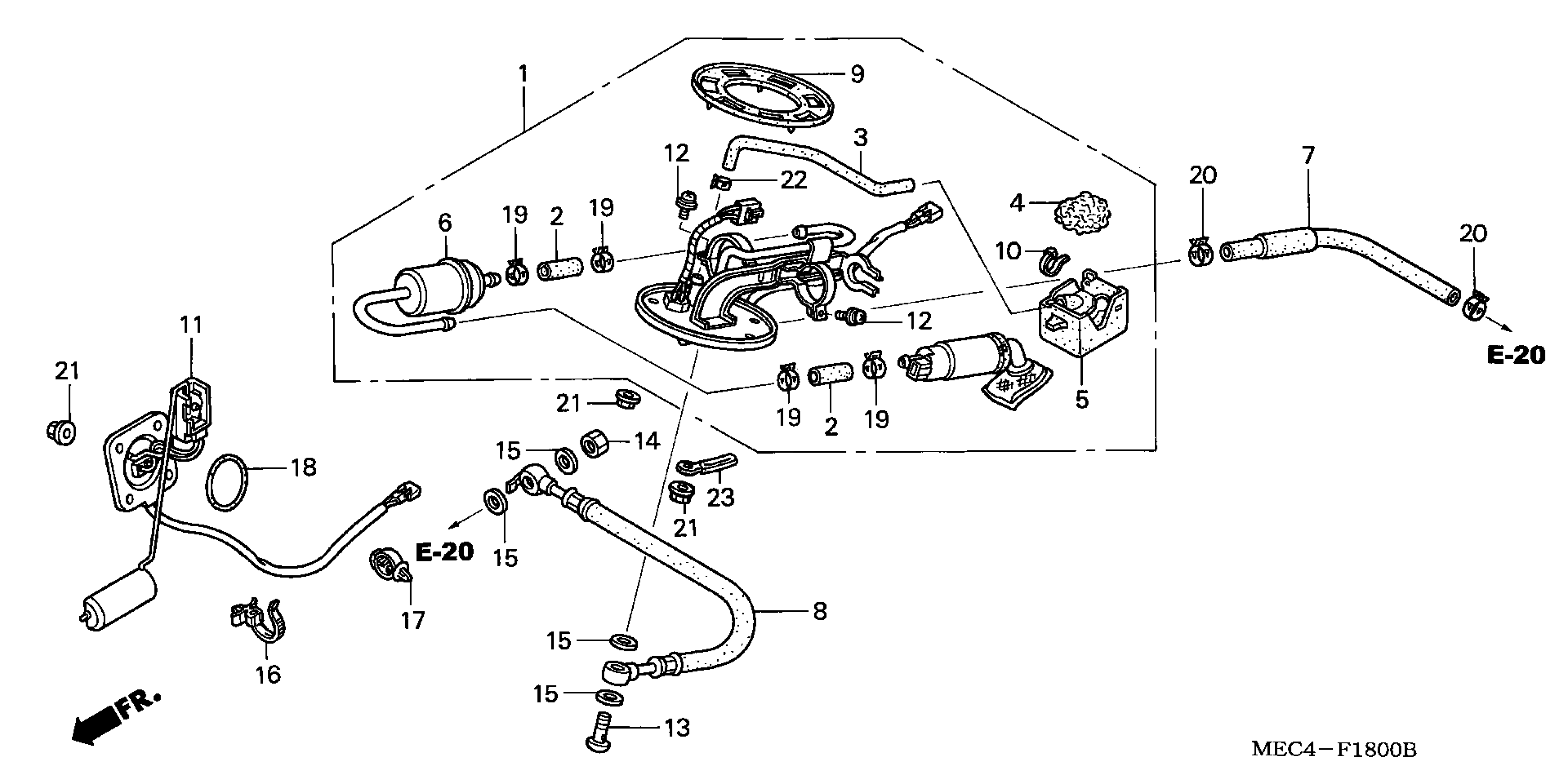

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-MEC-013

$775.44

2

HOSE A, PUMP

16711-MCF-000

$5.00

3

TUBE, FUEL PUMP RETURN

16713-MEC-000

Unavailable

4

FILTER, FUEL RETURN

16714-MBG-000

$9.13

5

RUBBER, FUEL PUMP UNIT

16716-MEC-000

Unavailable

6

FILTER, FUEL

16900-MEC-003

Unavailable

7

HOSE, FUEL RETURN

17526-MEC-003

Unavailable

8

HOSE, FUEL FEED

17527-MEC-003

Unavailable

9

GASKET, BASE

17574-MCF-000

$15.92

10

BAND, WIRE

32161-KM3-003

$2.63

11

FUEL UNIT ASSY.

37800-MEC-003

Unavailable

12

SCREW-WASHER, LOCK (4X8)

90105-MBG-000

$1.51

13

BOLT, BANJO (12MM)

90108-MBG-000

$10.46

14

NUT A, SEALING (12MM)

90201-PD1-000

$4.87

15

WASHER, SEALING (12MM)

90428-PD6-003

$5.20

16

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.47

17

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.47

18

O-RING (39.5X5)

91305-MC7-000

$3.31

19

CLAMP, TUBE (D12)

91405-PD1-004

$9.24

20

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.88

21

NUT, FLANGE (6MM)

94050-06080

$1.49

22

CLAMP, TUBE (D8.5)

95002-40850-04

$2.41

23

CLIP (4X60)

91410-KT7-000

$5.03
