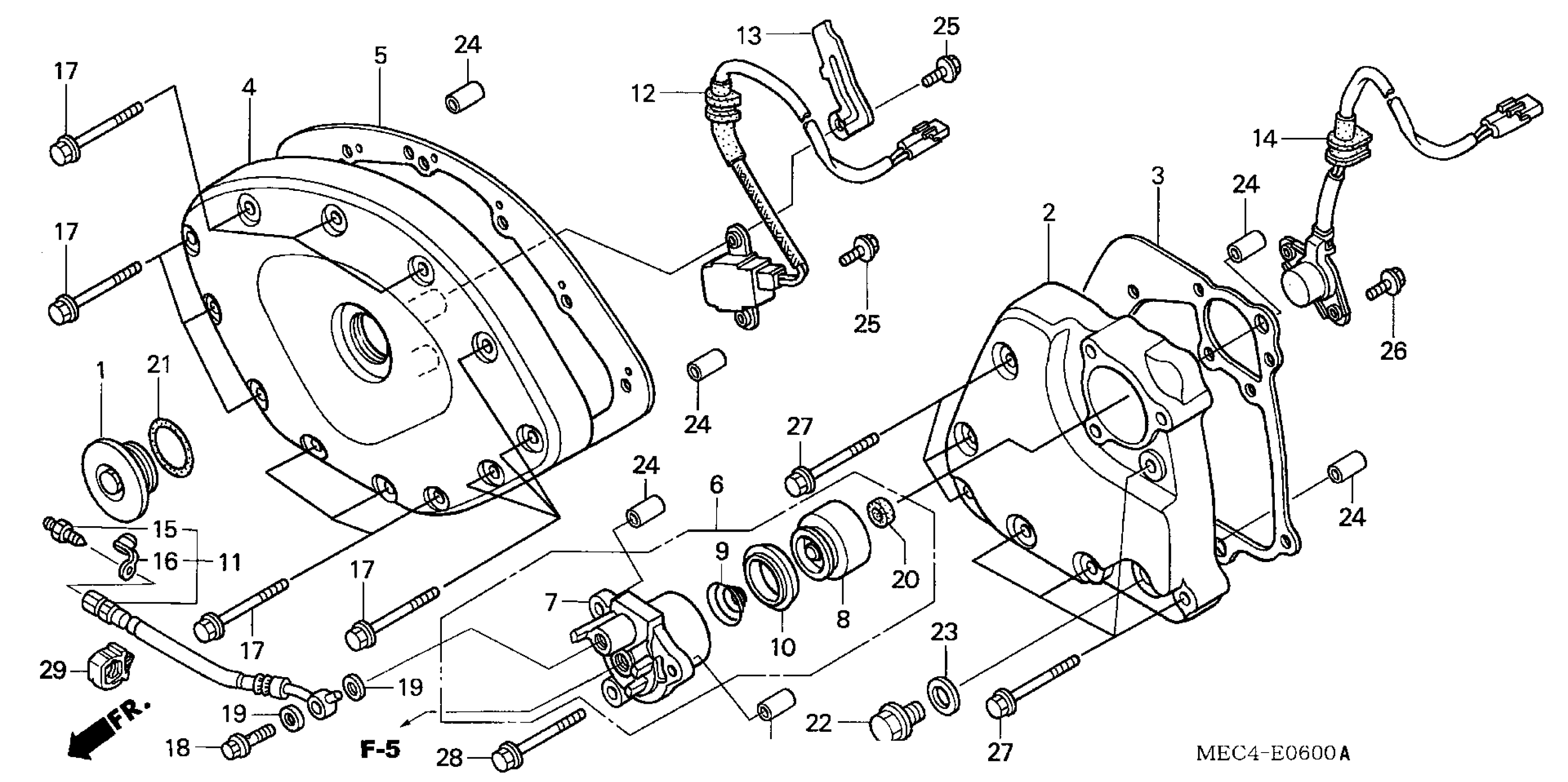

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 FRONT COVER + TRANSMISSION COVER Diagram

#

Description
Price

1

CAP (45MM)

11332-ML7-670

$23.19

2

COVER, TRANSMISSION

11361-MEC-000

$699.42

3

GASKET, TRANS CVR This part replaces 11391-MCA-000.

11391-MCA-020

$8.67

4

COVER, FR.

11511-MEC-000

$188.65

5

GASKET, FR. COVER This part replaces 11524-MCA-000.

11524-MCA-020

$13.50

6

CYLINDER ASSY., CLUTCH SLAVE

22860-MEC-010

Unavailable

7

CYLINDER, SLAVE

22861-MEC-000

Unavailable

8

PISTON, SLAVE CYLINDER

22863-MG9-003

$26.09

9

SPRING, SLAVE CYLINDER

22864-MT7-016

$5.78

10

CUP

22865-MG9-003

$11.31

11

HOSE ASSY., BLEEDER

22870-MEC-000

$42.28

12

GENERATOR ASSY., PULSE

30300-MEC-000

Unavailable

13

CLIP, PULSER WIRE

32906-MCA-A00

$4.51

14

SWITCH ASSY., NEUTRAL

35759-MEC-000

$87.33

15

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$3.93

16

CAP, BLEEDER

43353-461-771

$4.70

17

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.86

18

BOLT, OIL (10X22)

90145-MS9-612

$6.82

19

WASHER, OIL BOLT

90545-300-000

$3.72

20

OIL SEAL (8X18X5)

91209-MB0-003

$3.77

21

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.66

22

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.32

23

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

24

PIN, DOWEL (8X14)

94301-08140

$2.04

25

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

26

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

27

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

28

BOLT, FLANGE (6X45)

95701-06045-08

$1.97

29

CLIP, HARNESS (15MM) (BLUE)

90650-SB6-003

$3.99
