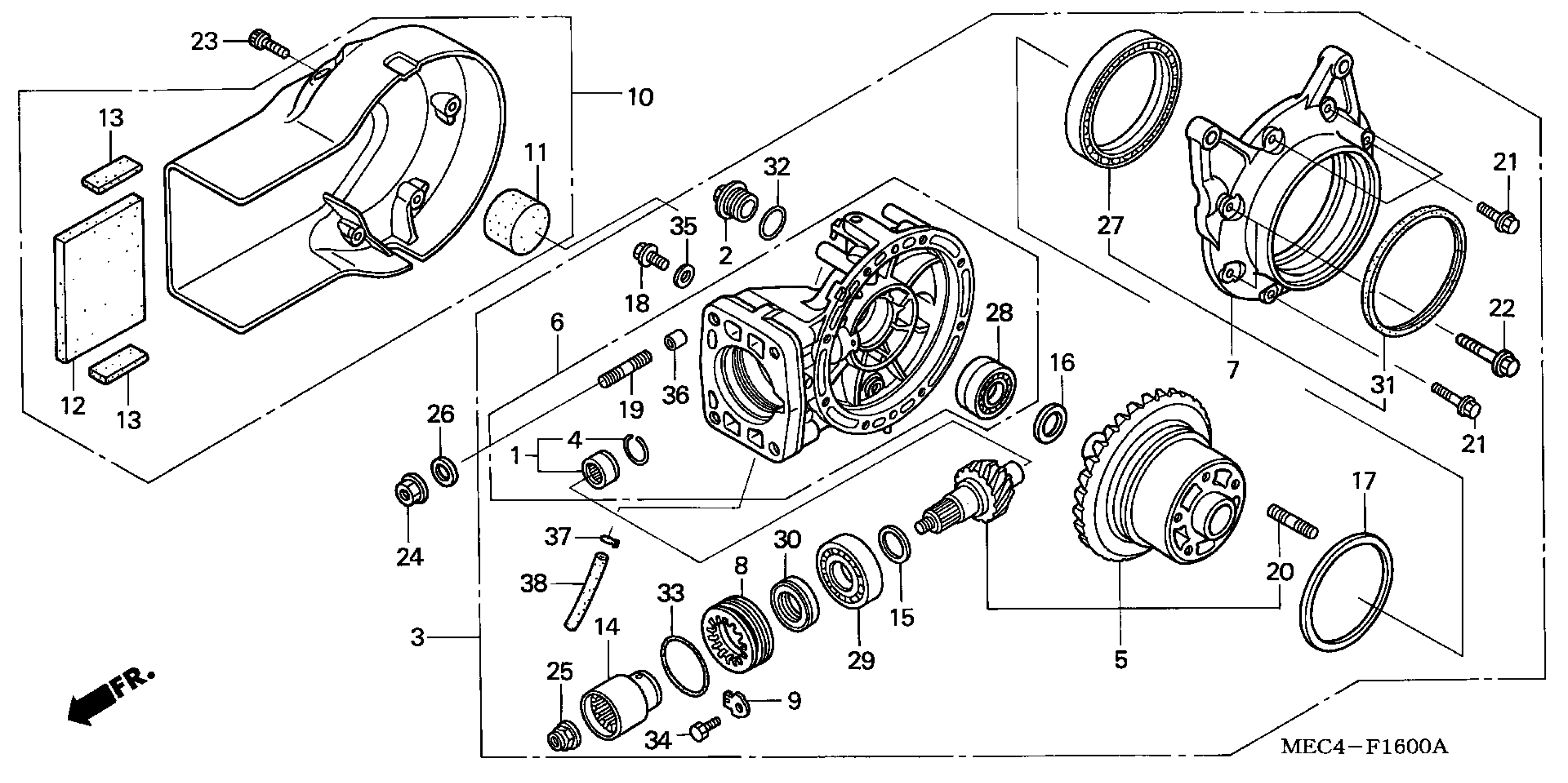

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-MCA-000

$18.21

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., FINAL DRIVEN

41300-MEC-A00

$2,745.89

4

RING, STOPPER

41305-MB4-770

$5.62

5

GEAR SET, FINAL

41310-MEC-000

Unavailable

6

CASE SUB-ASSY., FINAL GEAR

41311-MEC-000

Unavailable

7

COVER SUB-ASSY., FINAL GEAR

41320-MEC-000

Unavailable

8

RETAINER, BEARING

41331-MEC-000

Unavailable

9

LOCK A, BEARING ADJUSTING (SINGLE TAB)

41332-415-000

$2.51

9

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

41333-415-000

$2.51

10

COVER SET, FINAL GEAR

41350-MEC-000

$653.62

11

SEAT A, FINAL GEAR COVER

41352-MEC-000

Unavailable

12

SEAT B, FINAL GEAR COVER

41353-MEC-000

Unavailable

13

SEAT C, FINAL GEAR COVER

41354-MEC-000

$2.10

14

JOINT, PINION

41410-MN5-000

$62.40

15

SHIM A, PINION GEAR (1.32)

41450-MEC-000

$5.64

15

SHIM B, PINION GEAR (1.38)

41451-MEC-000

$5.39

15

SHIM C, PINION GEAR (1.44)

41452-MEC-000

$5.39

15

SHIM D, PINION GEAR (1.50)

41453-MEC-000

$5.39

15

SHIM E, PINION GEAR (1.56)

41454-MEC-000

$5.39

15

SHIM F, PINION GEAR (1.62)

41455-MEC-000

$5.39

15

SHIM G, PINION GEAR (1.68)

41456-MEC-000

$5.39

16

SHIM A, SHAFT (1.73)

41510-MS9-750

$5.92

16

SHIM B, SHAFT (1.76)

41511-MS9-750

$5.92

16

SHIM C, SHAFT (1.79)

41512-MS9-750

$5.92

16

SHIM D, SHAFT (1.82)

41513-MS9-750

$5.92

16

SHIM E, SHAFT (1.85)

41514-MS9-750

$5.92

16

SHIM F, SHAFT (1.88)

41515-MS9-750

$5.92

16

SHIM G, SHAFT (1.91)

41516-MS9-750

$5.92

16

SHIM H, SHAFT (1.94)

41517-MS9-750

$5.92

16

SHIM I, SHAFT (1.97)

41518-MS9-750

$5.92

16

SHIM J, SHAFT (2.00)

41519-MS9-750

$5.92

16

SHIM K, SHAFT (2.03)

41520-MS9-750

$5.92

16

SHIM L, SHAFT (2.06)

41521-MS9-750

$5.92

16

SHIM M, SHAFT (2.09)

41522-MS9-750

$5.92

16

SHIM N, SHAFT (2.12)

41523-MS9-750

$5.92

16

SHIM O, SHAFT (2.15)

41524-MS9-750

$5.92

16

SHIM P, SHAFT (0.45)

41525-MS9-750

$5.92

17

SHIM B, RING GEAR (1.88)

41531-MCA-000

$7.85

17

SHIM C, RING GEAR (1.94)

41532-MCA-000

$7.85

17

SHIM D, RING GEAR (2.00)

41533-MCA-000

$7.85

17

SHIM E, RING GEAR (2.06)

41534-MCA-000

$7.85

17

SHIM F, RING GEAR (2.12)

41535-MCA-000

$7.85

17

SHIM G, RING GEAR (2.18)

41536-MCA-000

$7.85

17

SHIM H, RING GEAR (2.24)

41537-MCA-000

$7.85

17

SHIM I, RING GEAR (2.30)

41538-MCA-000

$7.85

17

SHIM J, RING GEAR (2.36)

41539-MCA-000

$7.85

18

BOLT, PLUG (14MM)

90081-MC7-000

$10.96

19

BOLT, STUD (12X53)

90124-MCA-300

$5.02

20

BOLT, STUD (12X42)

90125-MEC-300

$4.72

21

BOLT, FLANGE (8X30)

90133-MCA-000

$1.49

22

BOLT, FLANGE (10X38)

90134-MCA-000

$2.48

23

BOLT, SOCKET (6X16)

90152-MEC-000

$2.00

24

NUT, FLANGE (12MM)

90309-375-003

$8.61

25

NUT, HEX.

90381-MT3-000

$7.95

26

WASHER, PLAIN (12MM)

90440-GT4-970

$2.48

27

BEARING, RADIAL BALL (100X125X26)

91051-MCA-003

$118.51

28

BEARING, RADIAL BALL (30X62X32)

91052-MEC-003

Unavailable

29

BEARING, RADIAL BALL (30X72X19)

91061-MEC-003

$69.34

30

OIL SEAL (39X56X7) (NOK)

91262-MY3-003

$13.47

31

OIL SEAL (100X117X7)

91265-MEC-003

Unavailable

32

O-RING (30.8MM)

91302-001-020

$3.75

33

O-RING (69.5X3.5)

91359-MEC-000

$5.72

34

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

35

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

36

PIN, DOWEL (14X20)

94301-14200

$2.28

37

CLIP, TUBE (B7)

95002-02079

$1.49

38

TUBE, FINAL GEAR BREATHER

91451-MEC-A01

Unavailable
