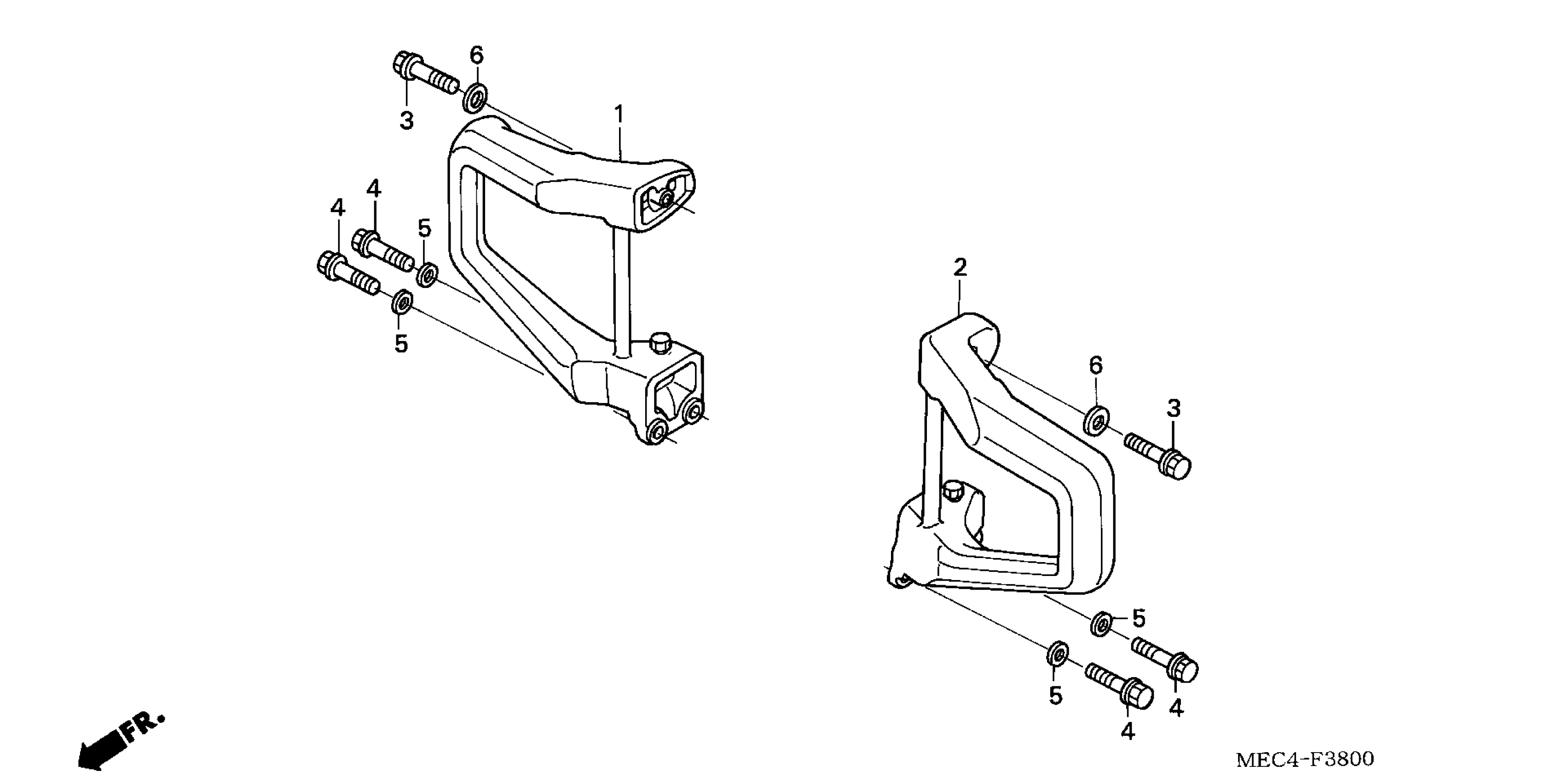

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 ENGINE GUARD Diagram

#

Description

Price

1

GUARD ASSY., R. ENGINE

62500-MEC-000

Unavailable

2

GUARD ASSY., L. ENGINE

62600-MEC-000

Unavailable

3

BOLT, SPECIAL FLANGE (10X34)

90101-MM8-000

$4.95

4

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.65

5

WASHER, PLAIN (8MM)

90501-MM8-610

$2.25

6

WASHER, PLAIN (10MM)

90502-MM8-610

$2.80
