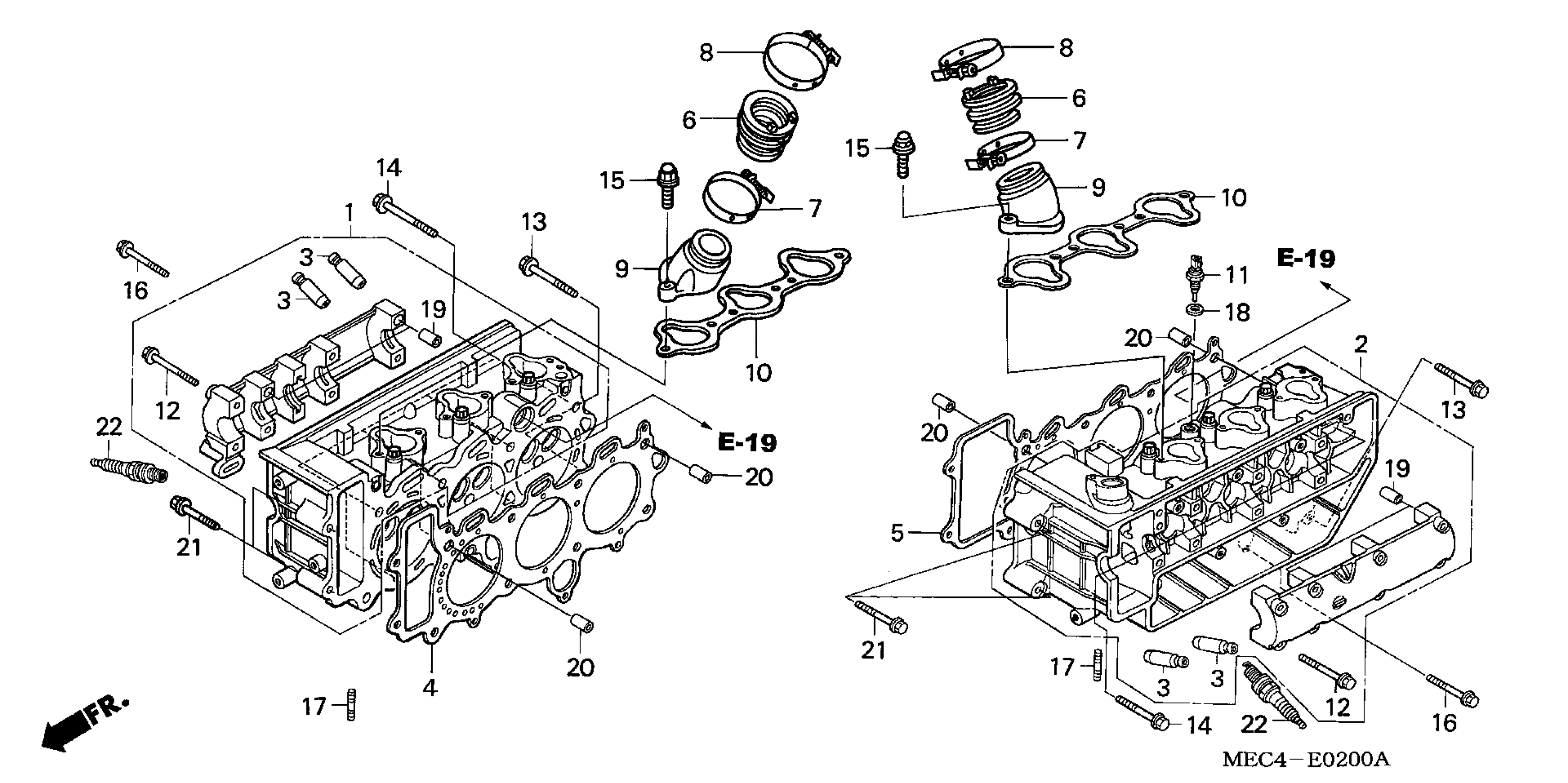

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., R.

12010-MEC-000

Unavailable

2

CYLINDER HEAD ASSY., L.

12020-MEC-000

$895.16

3

GUIDE, VALVE (OVER SIZE)

12204-MCA-P00

$21.85

4

GASKET, R. CYLINDER HEAD

12251-MCA-781

$87.53

5

GASKET, L. CYLINDER HEAD

12252-MCA-781

Unavailable

6

INSULATOR, THROTTLE BODY

16211-MEC-000

$15.70

7

BAND A, INSULATOR

16221-MEC-000

$4.61

8

BAND B, INSULATOR

16222-MEC-000

Unavailable

9

MANIFOLD, INLET

17111-MEC-000

$50.56

10

GASKET, IN. MANIFOLD

17134-MEC-013

Unavailable

11

SENSOR ASSY., WATER TEMPERATURE

37870-MBG-003

$83.34

12

BOLT, FLANGE (6X50)

90003-PT0-000

$3.98

13

BOLT, FLANGE (9X73)

90010-MCA-000

$3.48

14

BOLT, FLANGE (9X89)

90012-MCA-000

$3.74

15

BOLT, FLANGE CAP (6X26)

90022-MZ0-000

$6.02

16

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

17

BOLT, STUD (8-6X40)

90035-MN5-000

$4.53

18

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

19

PIN, DOWEL (8X20)

94301-08200

$2.25

20

PIN, DOWEL (12X20)

94301-12200

$2.29

21

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

22

SPARK PLUG (BKR5E-11) (NGK)

98079-5514E

$2.92

22

SPARK PLUG (K16PR-U11) (DENSO)

98079-5515E

$2.92

22

SPARK PLUG (BKR6E-11) (NGK) | (Optional).

98079-5614E

$2.92

22

SPARK PLUG (K20PR-U11) (DENSO) | (Optional).

98079-5615E

$3.21
