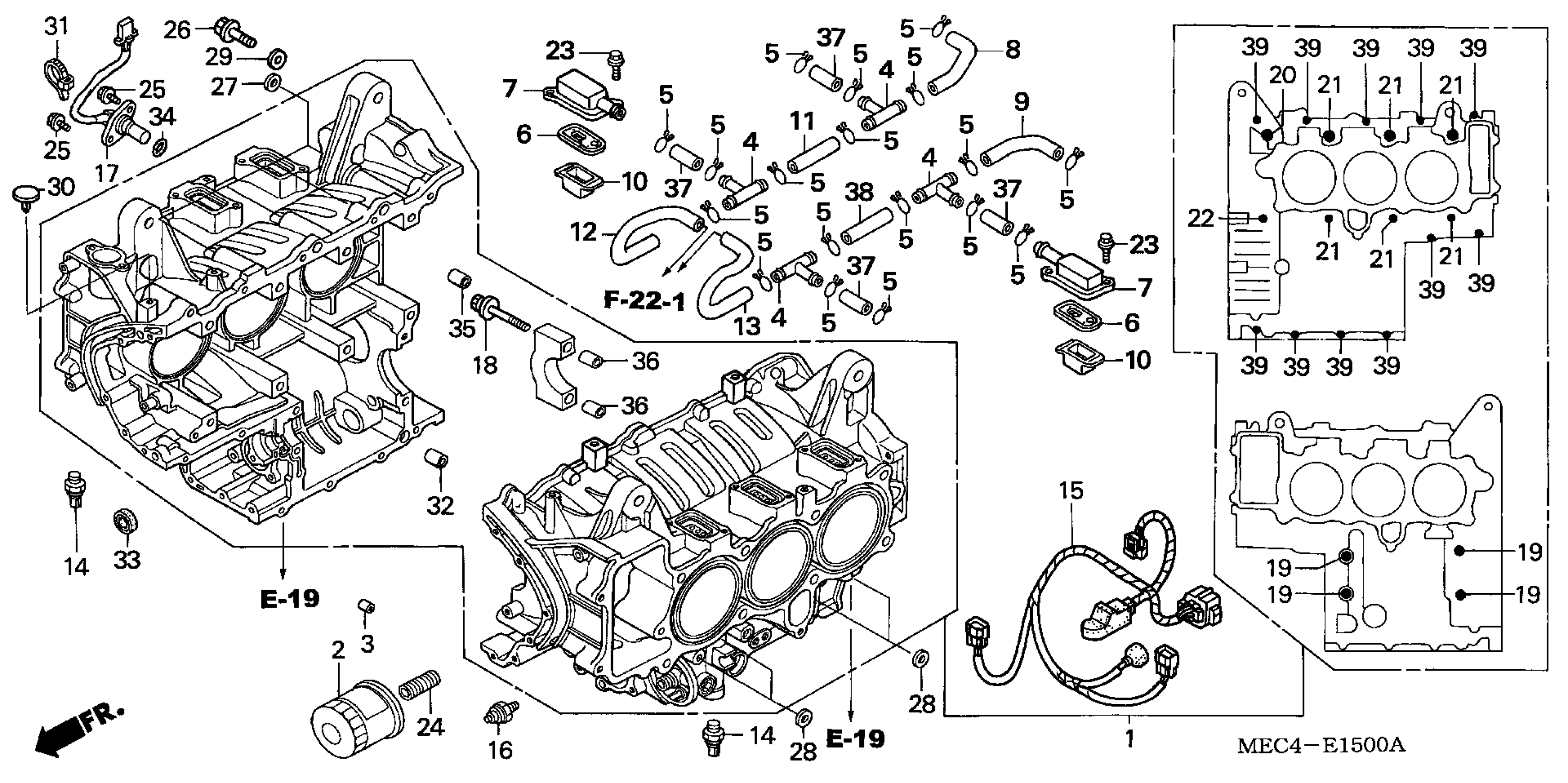

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER

04911-MCA-W01

$1,808.20

1

BLOCK ASSY., CYLINDER This part replaces 11000-MEC-000.

04911-MCA-W01

$1,808.20

1

BLOCK ASSY., CYLINDER This part replaces 11000-MEC-010.

04911-MCA-W01

$1,808.20

2

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$13.80

2

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

3

ORIFICE (2.3MM)

15515-MCA-000

$4.52

4

JOINT, BREATHER THREE WAY

15772-KK0-000

$11.04

5

CLIP, BREATHER TUBE

17316-611-000

$8.28

6

VALVE, REED

18601-KGB-611

$24.13

7

COVER, REED VALVE

18612-MEC-000

Unavailable

8

TUBE, R. AIR IN.

18651-MCA-780

$8.32

9

TUBE, L. AIR IN.

18652-MCA-000

$6.16

10

PLATE, AIR IN.

18653-MCA-000

$3.06

11

TUBE (12X62)

18655-MCA-000

$3.10

12

TUBE, R. AIR IN.

18662-MEC-000

$4.87

13

TUBE, L. AIR IN.

18663-MEC-000

$4.52

14

SENSOR ASSY., KNOCK

30530-MCA-003

$130.74

15

SUB-HARNESS, ENGINE

32106-MEC-030

$50.78

16

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

17

SENSOR ASSY., SPEED

37700-MEC-003

Unavailable

18

BOLT, UBS (12X77.5)

90003-MEC-000

$5.09

19

BOLT, FLANGE (8X135)

90006-MM5-640

$6.13

20

BOLT, FLANGE (10X120) (SATO)

90009-MEC-000

$3.46

21

BOLT, FLANGE (10X120) (SATO)

90009-371-015

$9.61

22

BOLT, FLANGE (10X197)

90011-MEC-000

$3.46

23

BOLT, FLANGE (5X14)

90012-896-750

$1.14

24

BOSS, OIL FILTER

90019-MB0-000

$7.73

25

BOLT, FLANGE (6X16)

90102-KFE-700

$1.83

26

BOLT, SPECIAL FLANGE (10X16)

90109-KN8-730

$4.33

27

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.42

28

WASHER, SEALING (8MM)

90441-MG8-000

$2.07

29

WASHER, SEALING (10MM)

90443-MB0-000

$2.80

30

CLIP, BRUSH

90601-MEC-000

$2.58

31

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

32

COLLAR (15X20)

90702-371-000

$5.35

33

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$3.77

34

O-RING (18.1X3.6)

91302-MAL-601

$3.28

35

PIN, DOWEL (12X20)

94301-12200

$2.25

36

PIN C, DOWEL (4X6.5)

94303-04065

$2.04

37

BULK HOSE, VACUUM (12X1000) (12X42)

95005-12001-10M

Unavailable

38

BULK HOSE, VACUUM (12X1000) (12X70)

95005-12001-10M

Unavailable

39

BOLT, FLANGE (6X35)

95701-06035-08

$1.58
