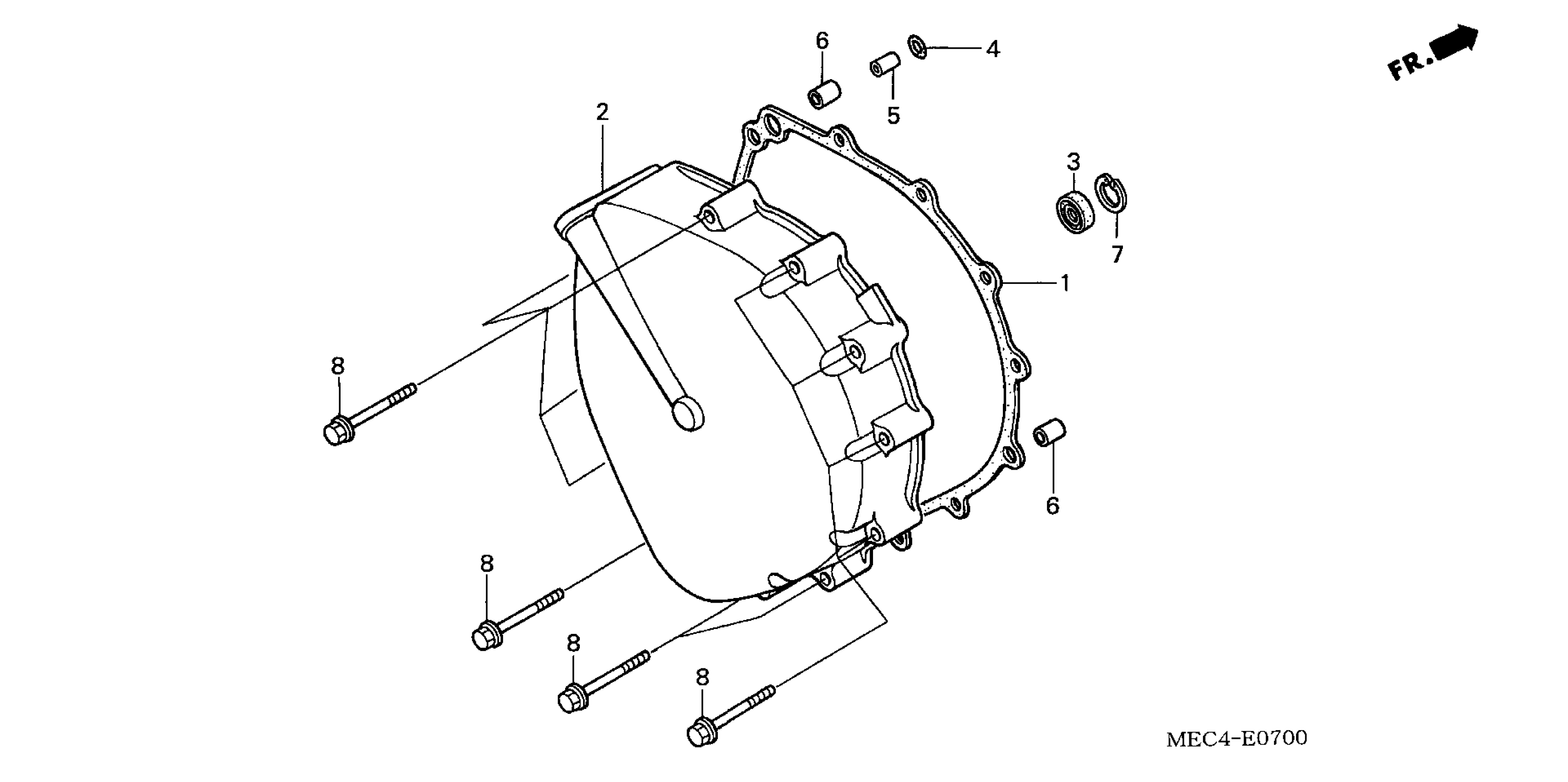

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 CLUTCH COVER Diagram

#

Description

Price

1

GASKET, CLUTCH COVER This part replaces 11351-MCA-000.

11351-MCA-020

$12.44

2

COVER, CLUTCH

11370-MEC-000

$885.16

3

OIL SEAL (7X18X5) (ARAI)

91220-MG8-003

$4.03

4

O-RING (5.7X2.2) (ARAI)

91308-MB0-003

$2.12

5

PIN, DOWEL (6X10)

94301-06100

$2.04

6

PIN, DOWEL (8X14)

94301-08140

$2.04

7

CIRCLIP (INNER) (18MM)

94520-18000

$0.86

8

BOLT, FLANGE (6X38)

95701-06038-08

$1.71
