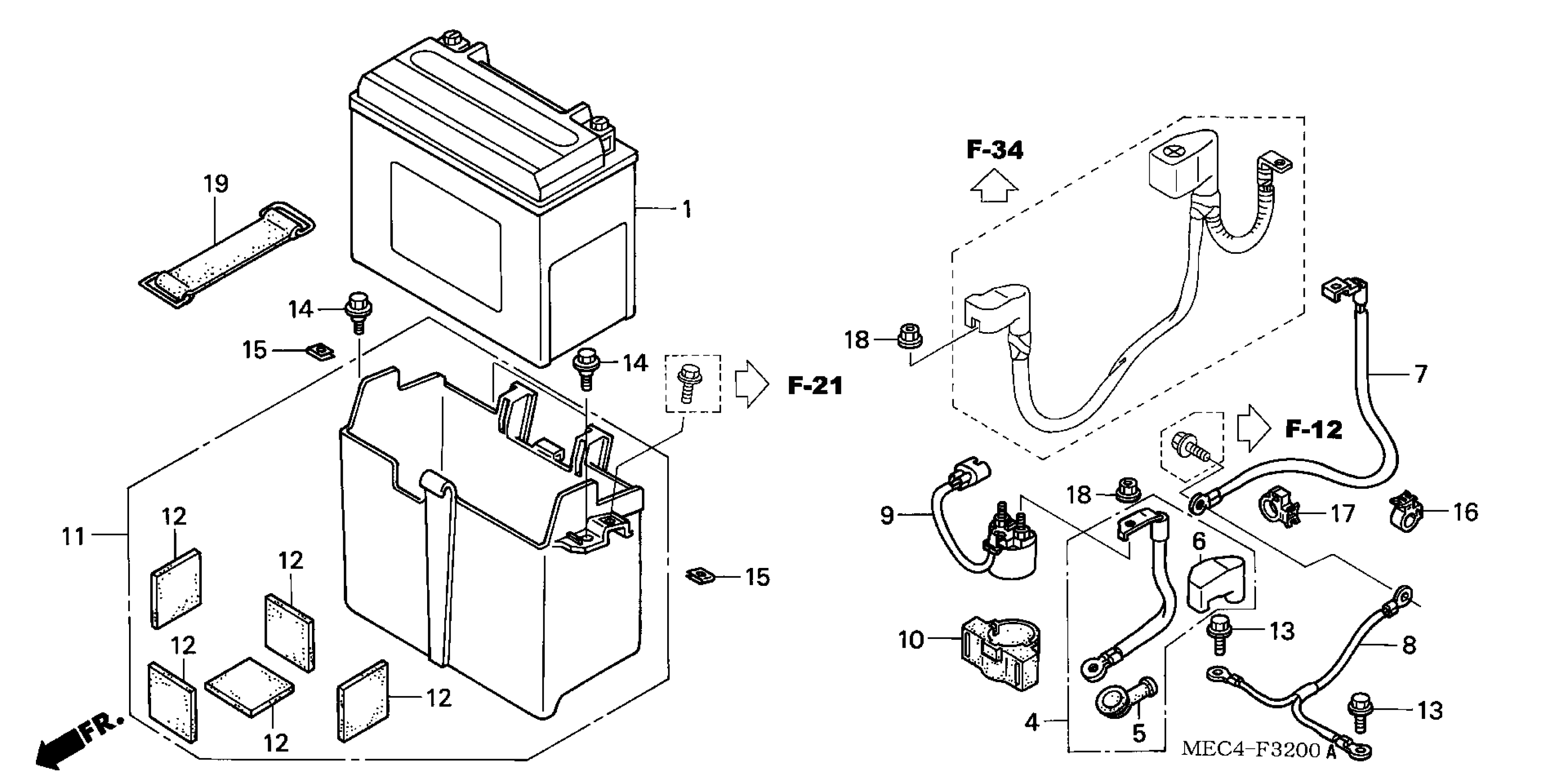

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 BATTERY Diagram

BATTERY,YTX20L-BS This part replaces 31500-MCA-003.

31500-MCA-013AH

$141.79

BATTERY (YTX20L-BS) (YUASA)

31500-MCA-003AH

Unavailable

CABLE, STARTER MOTOR

32410-MEC-000

$46.21

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER A, MAGNETIC SWITCH TERMINAL

32419-MZ0-J11

$1.49

CABLE, BATTERY GROUND

32601-MEC-000

$25.23

CABLE, ENGINE HEAD GROUND

32602-MEC-000

$20.28

SWITCH ASSY., STARTER MAGNETIC

35850-MEC-000

Unavailable

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

BOX ASSY., BATTERY

50323-MEC-000

$20.87

SPONGE, RUBBER

50322-MEC-000

$2.38

BOLT, FLANGE (6X16)

90102-KFE-700

$2.00

BOLT, FLANGE (6MM)

90111-162-000

$2.89

NUT, CLIP (5MM)

90312-MT3-000

$4.57

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

NUT, FLANGE (6MM)

94050-06080

$1.49

BAND B2, BATTERY

95012-13001

$5.28
