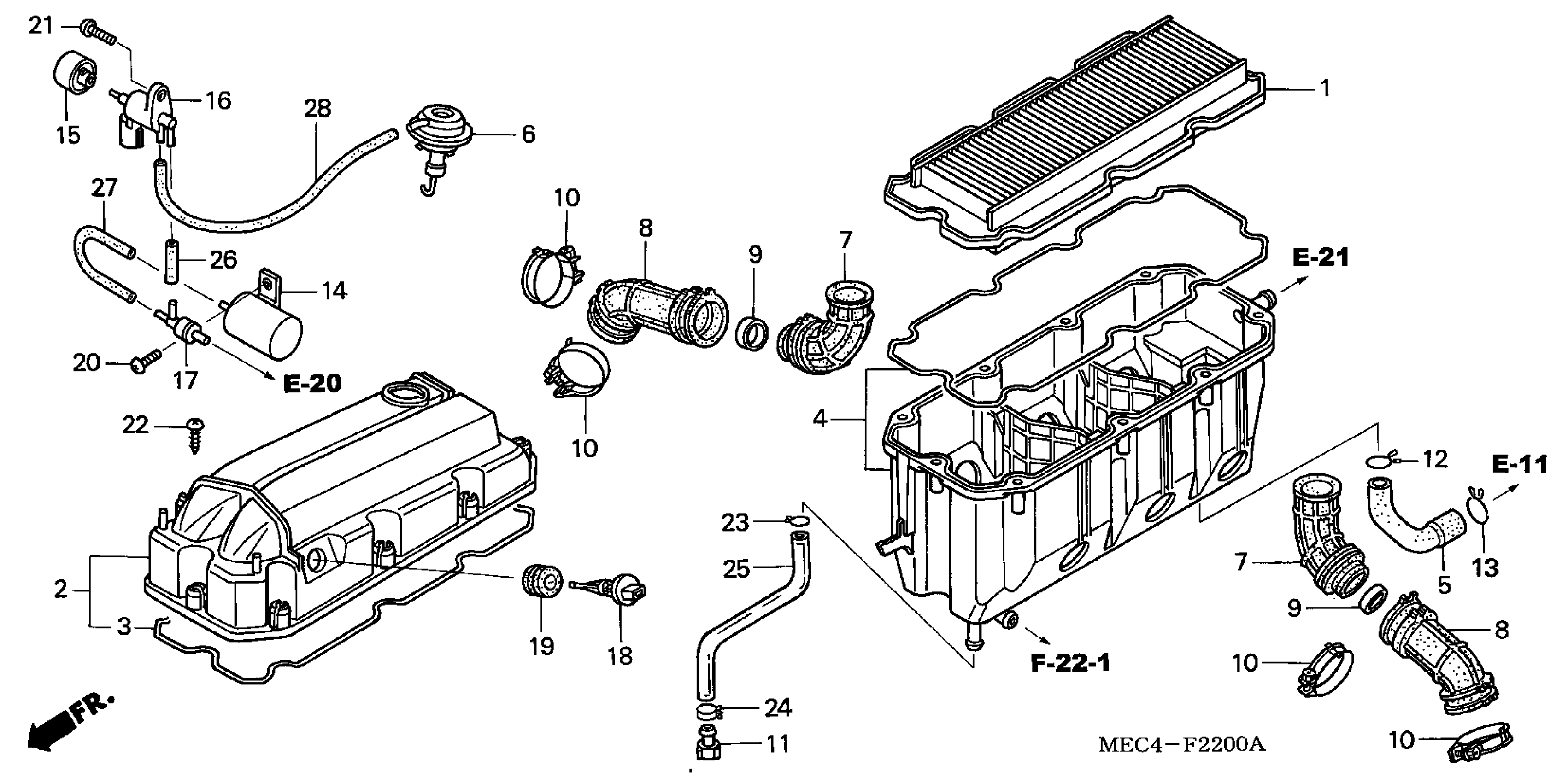

Honda NRX1800DAA (05) VALKYRIE RUNE, USA, VIN# 1HFSC530-5A100001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-MEC-003

$25.50

2

COVER, AIR CLEANER

17221-MEC-003

Unavailable

3

SEAL, AIR CLEANER HOUSING

17222-MEC-003

$4.66

4

HOUSING, AIR CLEANER

17231-MEC-003

$29.62

5

TUBE, BREATHER

17233-MEC-000

$2.88

6

DIAPHRAGM, CONTROL VALVE

17238-MW4-003

$47.47

7

TUBE A, AIR CLEANER CONNECTING

17254-MEC-003

$30.69

8

TUBE B, AIR CLEANER CONNECTING

17255-MEC-003

Unavailable

9

COLLAR, AIR CLEANER CONNECTING TUBE

17256-MEC-003

$86.44

10

BAND, AIR CLEANER CONNECTING TUBE (46)

17257-MEC-003

$26.09

11

PLUG, BREATHER TUBE

17370-419-700

$3.58

12

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

13

CLIP, AIR HOSE (21.5)

18532-634-670

$7.58

14

CHAMBER, VACUUM (50)

36132-PH4-671

$39.41

15

FILTER ASSY., SOLENOID VALVE

36138-PR7-A01

$31.59

16

VALVE ASSY., BYPASS CONTROL SOLENOID

36163-PV0-004

$357.25

17

VALVE, IN. AIR SHOT AIR CHECK This part replaces 36627-MN5-000.

36627-MN5-003

$39.51

17

VALVE, IN. AIR SHOT AIR CHECK

36627-MN5-003

$39.51

18

SENSOR ASSY., AIR TEMPERATURE

37880-MCA-003

$36.74

19

GROMMET, TA SENSOR

37881-MCA-003

$3.62

20

SCREW, PAN (5X12)

93500-05012-0A

$0.84

21

SCREW, PAN (5X16)

93500-05016-0A

$0.84

22

SCREW, TAPPING (5X20)

93903-25480

$0.84

23

CLIP, TUBE (B12)

95002-02120

$1.79

24

CLAMP, TUBE (D12)

95002-41200-08

$2.31

25

BULK HOSE, VINYL (8X12X8000) (8X12X550)

95003-23008-60M

Unavailable

26

BULK HOSE, VACUUM (3.5X8000) (3.5X60)

95005-35008-10M

$117.77

27

BULK HOSE, VACUUM (3.5X8000) (3.5X90)

95005-35008-10M

$117.77

28

BULK HOSE, VACUUM (4.5X1000) (4.5X500)

95005-45001-10M

$23.48
