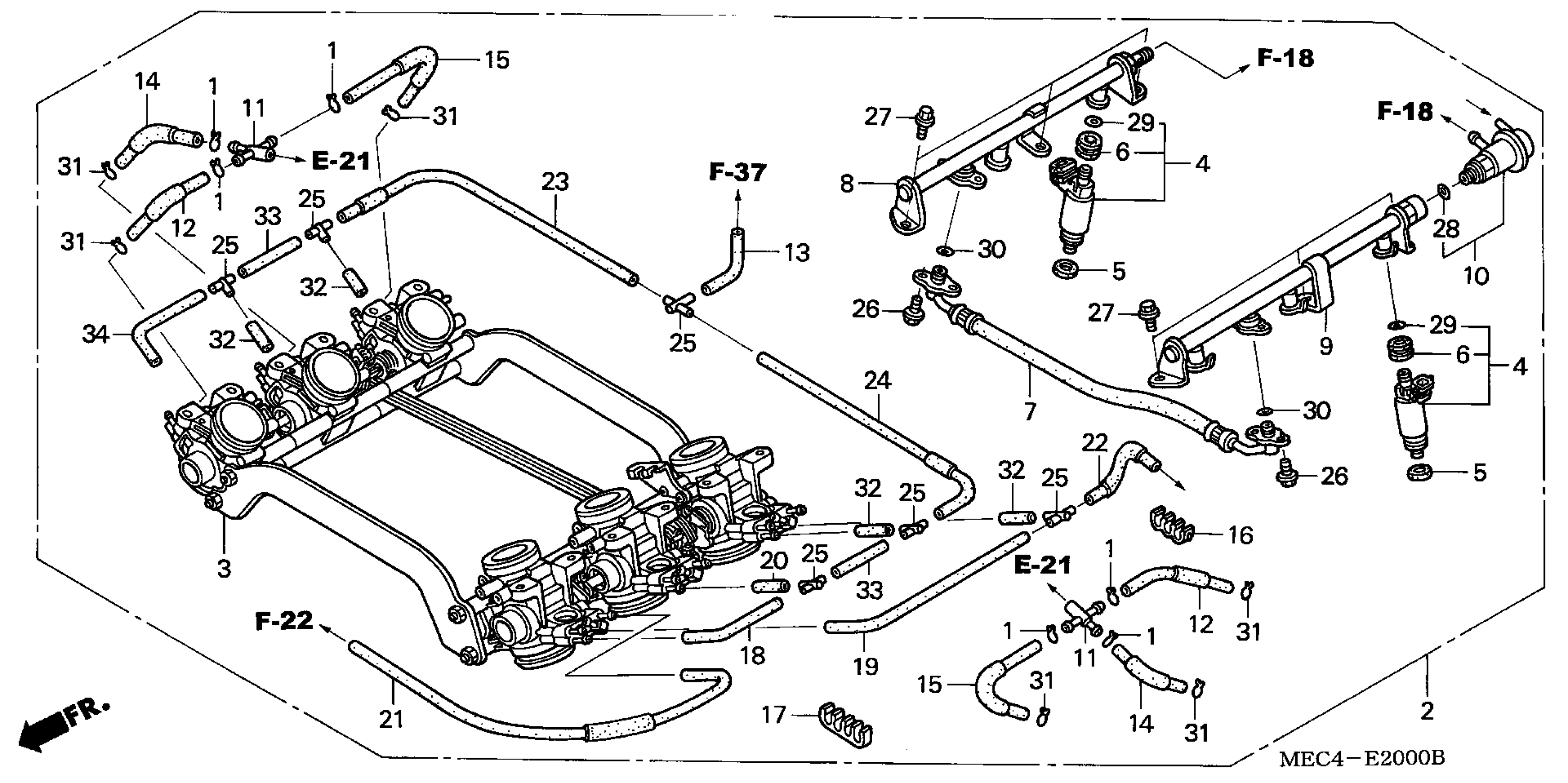

Honda NRX1800DAA (04) VALKYRIE RUNE, USA, VIN# 1HFSC530-4A000001 THROTTLE BODY Diagram

#

Description
Price

1

CLIP, TUBE

16163-KM4-004

$2.92

2

BODY ASSY., THROTTLE (GQ81B A) This part replaces 16400-MEC-013.

16400-MEC-023

Unavailable

2

BODY ASSY., THROTTLE (GQ81B A)

16400-MEC-023

Unavailable

3

BODY ASSY., THROTTLE

16401-MEC-003

$2,064.92

4

INJECTOR ASSY., FUEL

16450-MCW-004

$203.25

5

SEAL RING, INJECTOR

16472-MCW-000

$2.39

6

CUSHION RING, INJECTOR

16473-P7A-004

$6.90

7

HOSE, FUEL FEED

16527-MEC-003

Unavailable

8

PIPE, R. FUEL

16610-MEC-003

Unavailable

9

PIPE, L. FUEL

16620-MEC-003

Unavailable

10

REGULATOR ASSY., PRESSURE

16740-MEC-003

Unavailable

11

JOINT, FOUR-WAY

16927-MEC-003

$17.00

12

TUBE (4.5X160)

16953-MEC-003

Unavailable

13

TUBE

16956-MEC-003

Unavailable

14

TUBE (4.5X80)

16957-MEC-003

$2.07

15

TUBE (4.5X160)

16958-MEC-003

Unavailable

16

CLAMP, TUBE (7.3X3)

16961-MEC-003

Unavailable

17

CLAMP, TUBE (7.3X4)

16962-MEC-003

Unavailable

18

TUBE

16965-MEC-003

Unavailable

19

TUBE

16966-MEC-003

Unavailable

20

TUBE

16967-MEC-003

$1.49

21

TUBE (3.5X420)

16968-MEC-003

$5.82

22

TUBE

16972-MEC-013

$6.46

23

TUBE (3.5X330)

16973-MEC-003

$5.21

24

TUBE (3.5X320)

16974-MEC-003

$5.21

25

JOINT A, VACUUM TUBE

17201-MG9-000

$15.94

26

BOLT, FLANGE (6X8)

90051-MEC-003

$2.00

27

BOLT, FLANGE (6X12)

90052-MEC-003

$2.26

28

O-RING (9.8X1.9)

91301-PM5-A01

$2.47

29

O-RING

91301-P7A-004

$3.35

30

O-RING (7.8X1.9)

91302-MCA-000

$2.30

31

CLIP, TUBE (B8)

95002-02084

Unavailable

32

BULK HOSE, VACUUM (3.5X1000) (3.5X30)

95005-35001-20M

$9.67

33

BULK HOSE, VACUUM (3.5X1000) (3.5X80)

95005-35001-20M

$9.67

34

BULK HOSE, VACUUM (3.5X1000) (3.5X110)

95005-35001-20M

$9.67
