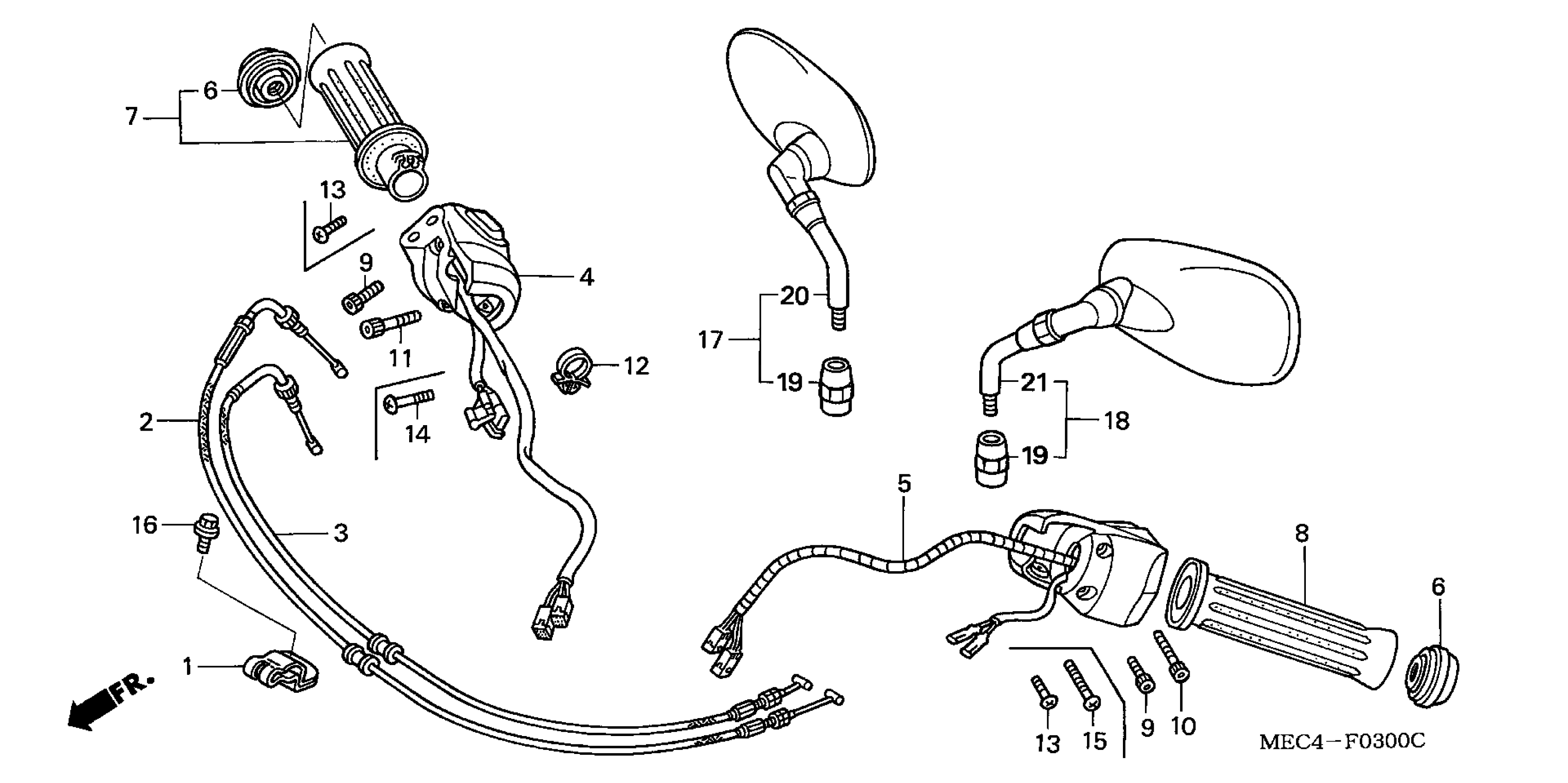

Honda NRX1800DAA (04) VALKYRIE RUNE, USA, VIN# 1HFSC530-4A000001 SWITCH + CABLE Diagram

CLAMP, THROTTLE CABLE

17905-MEC-000

Unavailable

CABLE A, THROTTLE

17910-MEC-000

Unavailable

CABLE B, THROTTLE

17920-MEC-000

Unavailable

SWITCH ASSY., STARTER STOP (PULLBACK HANDLEBAR) This part replaces 35130-MEC-000.

35130-MEC-830

$469.48

SWITCH ASSY., STARTER STOP (PULLBACK HANDLEBAR)

35130-MEC-830

$469.48

SWITCH ASSY., TURN SIGNAL (PULLBACK HANDLEBAR) This part replaces 35200-MEC-000.

35200-MEC-830

$501.84

SWITCH ASSY., TURN SIGNAL (PULLBACK HANDLEBAR)

35200-MEC-830

$501.84

CAP, GRIP END

53104-MEC-000

Unavailable

GRIP, THROTTLE

53140-MEC-671

Unavailable

GRIP ASSY., L.

53146-MEC-671

Unavailable

BOLT, SOCKET (5X16)

90087-MEC-000

$2.10

BOLT, SOCKET (5X25)

90088-MEC-000

$2.10

BOLT, SOCKET (5X20)

90089-MEC-000

Unavailable

CLIP, POWER STEERING SUCTION TUBE

53735-SE0-961

$10.22

SCREW, PAN (5X16)

93500-05016-0B

$1.49

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

MIRROR ASSY., R. BACK

88110-MEC-003

$170.70

MIRROR ASSY., L. BACK

88120-MEC-003

$170.70

NUT A, LOCK

90302-MEM-680

$5.28
