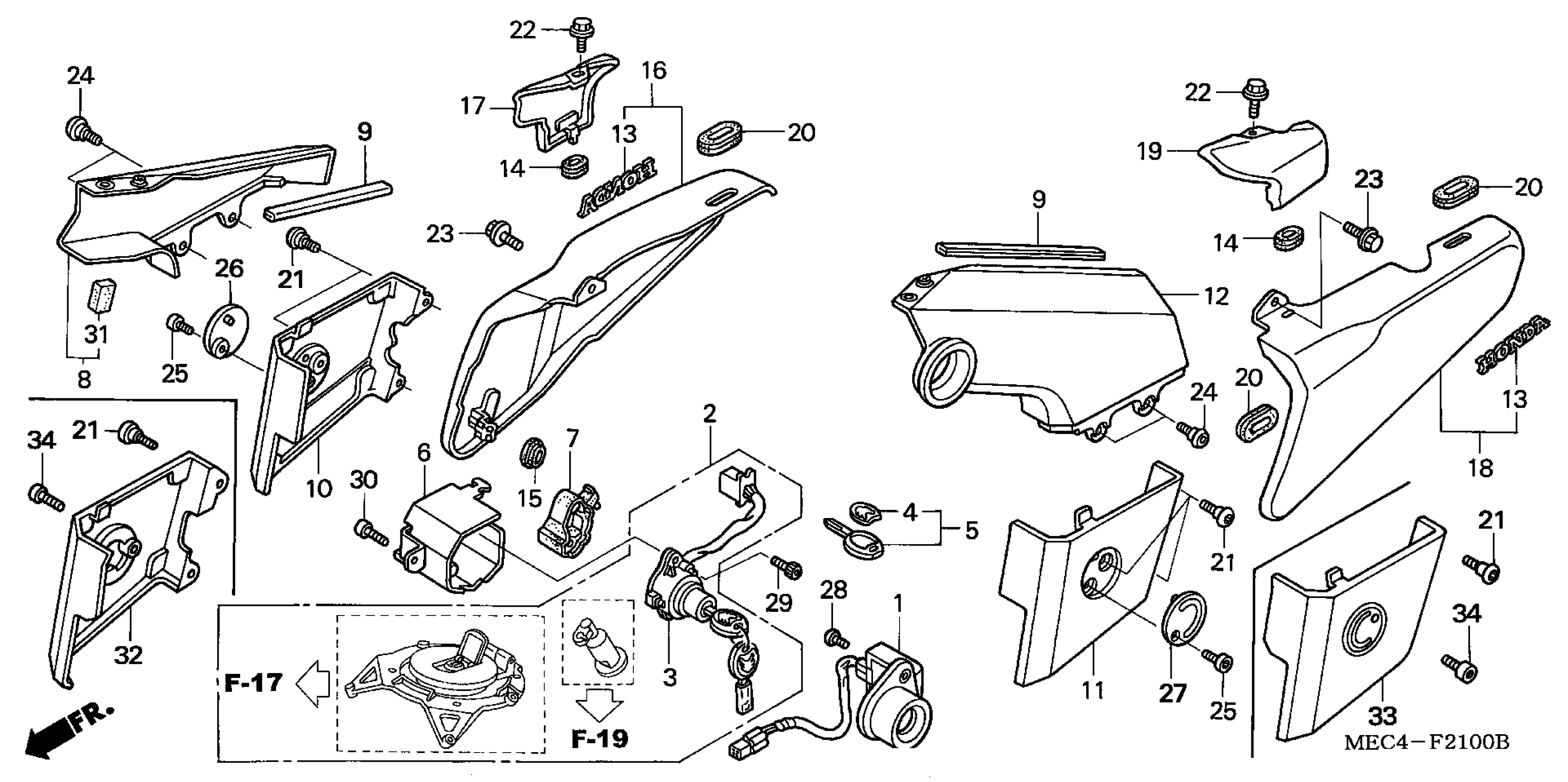

Honda NRX1800DAA (04) VALKYRIE RUNE, USA, VIN# 1HFSC530-4A000001 SIDE COVER Diagram

#

Description
Price

1

UNIT, RECEIVER

30430-MEC-003

Unavailable

2

LOCK SET

35010-MEC-000

Unavailable

3

SWITCH ASSY., COMBINATION

35100-MEC-003

Unavailable

4

EMBLEM, KEY

35113-MEC-000

$9.74

5

KEY, BLANK (NO.1) (KEY NO. AXX/BXX) | (Optional).

35121-MEC-811

Unavailable

5

KEY, BLANK (NO.2) (KEY NO. CXX/DXX) | (Optional).

35122-MEC-811

Unavailable

6

STAY, COMBINATION SWITCH

50126-MEC-000

Unavailable

7

BASE, COMBINATION SWITCH

50127-MEC-000

$7.99

8

COVER, R. PIVOT PLATE

50410-MEC-670

$193.69

9

MOLDING, FRAME COVER

50408-MEC-000

Unavailable

10

COVER, R. PIVOT PLATE SUB

50420-MEC-670

Unavailable

11

COVER, L. PIVOT PLATE SUB

50425-MEC-670

Unavailable

12

COVER, L. PIVOT PLATE

50450-MEC-670

$203.75

13

EMBLEM (HONDA)

64123-MEC-000

Unavailable

14

GROMMET, CORD

81405-292-751

$7.04

15

RUBBER, ENGINE SIDE COVER

83124-MN5-000

$2.92

16

COVER SET, R. SIDE This part replaces 83410-MEC-670.

83410-MEC-A00

Unavailable

16

COVER SET, R. SIDE

83410-MEC-A00

Unavailable

17

COVER, R. SIDE (UPPER)

83420-MEC-670

$132.00

18

COVER SET, L. SIDE This part replaces 83460-MEC-670.

83460-MEC-A00

Unavailable

18

COVER SET, L. SIDE

83460-MEC-A00

Unavailable

19

COVER, L. SIDE (UPPER)

83470-MEC-670

Unavailable

20

GROMMET A, SIDE COVER

83601-MB0-000

$4.31

21

BOLT, SPECIAL (5X12)

90001-KPF-910

$0.90

22

SCREW-WASHER (5X10)

93891-05010-07

$1.00

23

BOLT, FLANGE (5X8)

90002-MC7-000

$1.71

24

SCREW, PAN (5X13)

90112-MBS-000

$2.24

25

BOLT, SOCKET (5X13.5)

90119-MEC-000

Unavailable

26

CAP, R. PIVOT

90312-MEC-670

$7.37

27

CAP, L. PIVOT

90313-MEC-670

Unavailable

28

SCREW, PAN (5X12)

93500-05012-0G

$0.84

29

BOLT, SOCKET (6X16)

96600-06016-00

$1.60

29

BOLT, SOCKET (6X16) This part replaces 96700-06016-00.

96600-06016-00

$1.60

30

BOLT, SOCKET (6X16)

96600-06016-07

$1.60

30

BOLT, SOCKET (6X16) This part replaces 96700-06016-07.

96600-06016-07

$1.60

31

RUBBER, SIDE COVER SPONGE

83705-MT3-300

$3.23
