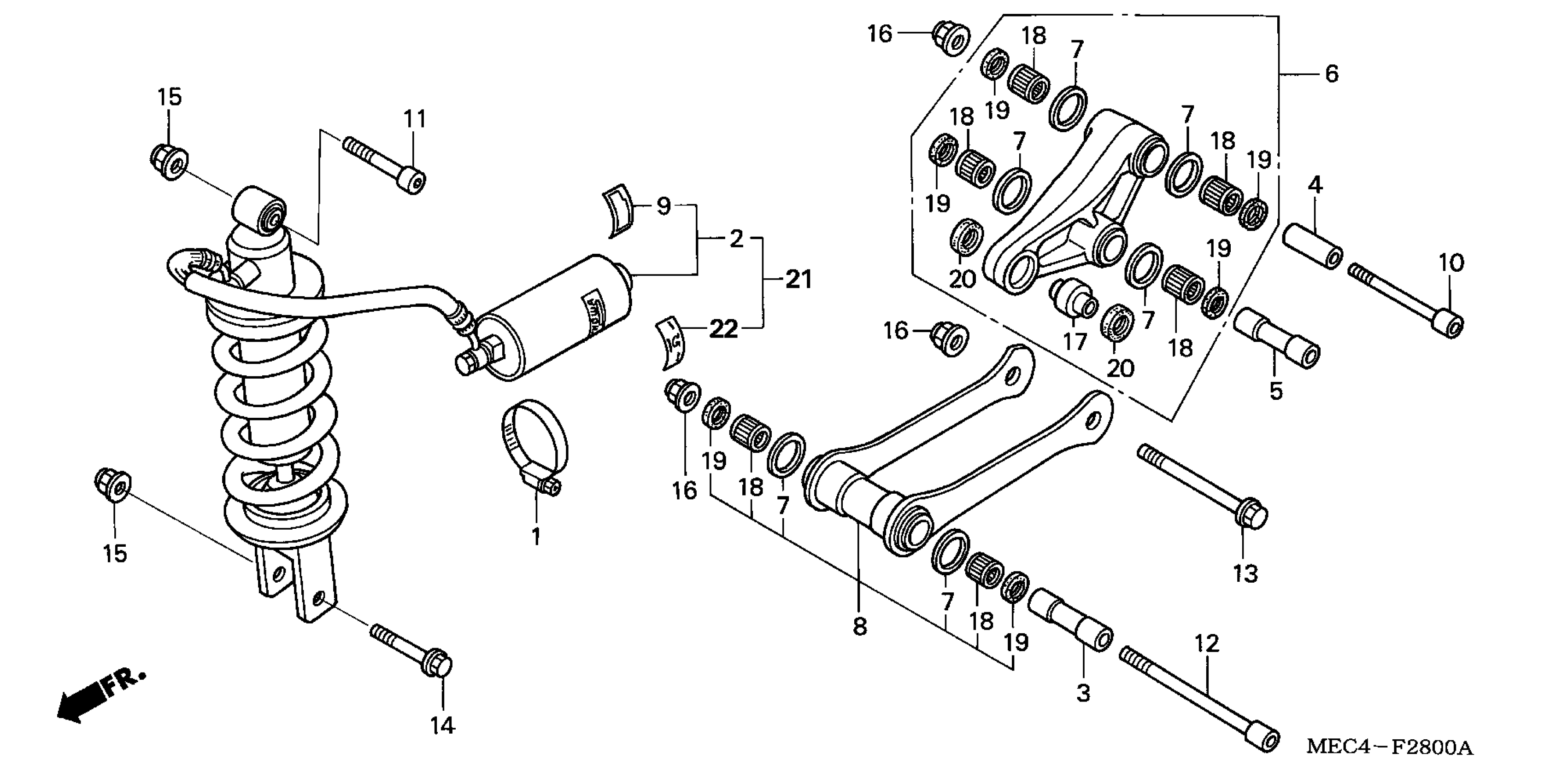

Honda NRX1800DAA (04) VALKYRIE RUNE, USA, VIN# 1HFSC530-4A000001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

BAND, SUB-TANK

50252-KV3-781

Unavailable

2

CUSHION ASSY., RR. This part replaces 52400-MEC-003.

52400-MEC-023

Unavailable

2

CUSHION ASSY., RR. This part replaces 52400-MEC-013.

52400-MEC-023

Unavailable

2

CUSHION ASSY., RR.

52400-MEC-023

Unavailable

3

COLLAR, CONNECTING ROD PIVOT

52462-MCA-000

$14.96

4

COLLAR A, CUSHION ARM

52463-MAW-760

$8.74

5

COLLAR C, CUSHION ARM

52463-MCA-000

$10.97

6

ARM SUB-ASSY., CUSHION

52465-MEC-000

$147.32

7

WASHER, THRUST

52467-MEC-000

$3.35

8

CONNECTING ROD SUB-ASSY., CUSHION This part replaces 52475-MEC-000.

52475-MEC-010

Unavailable

8

CONNECTING ROD SUB-ASSY., CUSHION

52475-MEC-010

Unavailable

9

LABEL, RR. DAMPER

87516-KV6-610

$4.49

10

BOLT, SOCKET (12X90)

90110-MCA-000

$11.33

11

BOLT, SOCKET (10X55)

90110-ML7-000

$4.94

12

BOLT, SOCKET (12X127)

90112-MEC-000

$13.52

13

BOLT, FLANGE (12X99)

90123-MCA-000

$4.88

14

BOLT, FLANGE (10X55)

90153-KF0-000

$8.40

15

NUT, U (10MM)

90304-GE8-003

$3.42

16

NUT, FLANGE (12MM)

90306-KF0-003

Unavailable

17

BEARING, SPHERICAL (10MM)

91071-MEC-003

$32.88

18

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$16.63

19

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.27

20

DUST SEAL (16X26X2.5)

91254-MBR-003

$5.32
