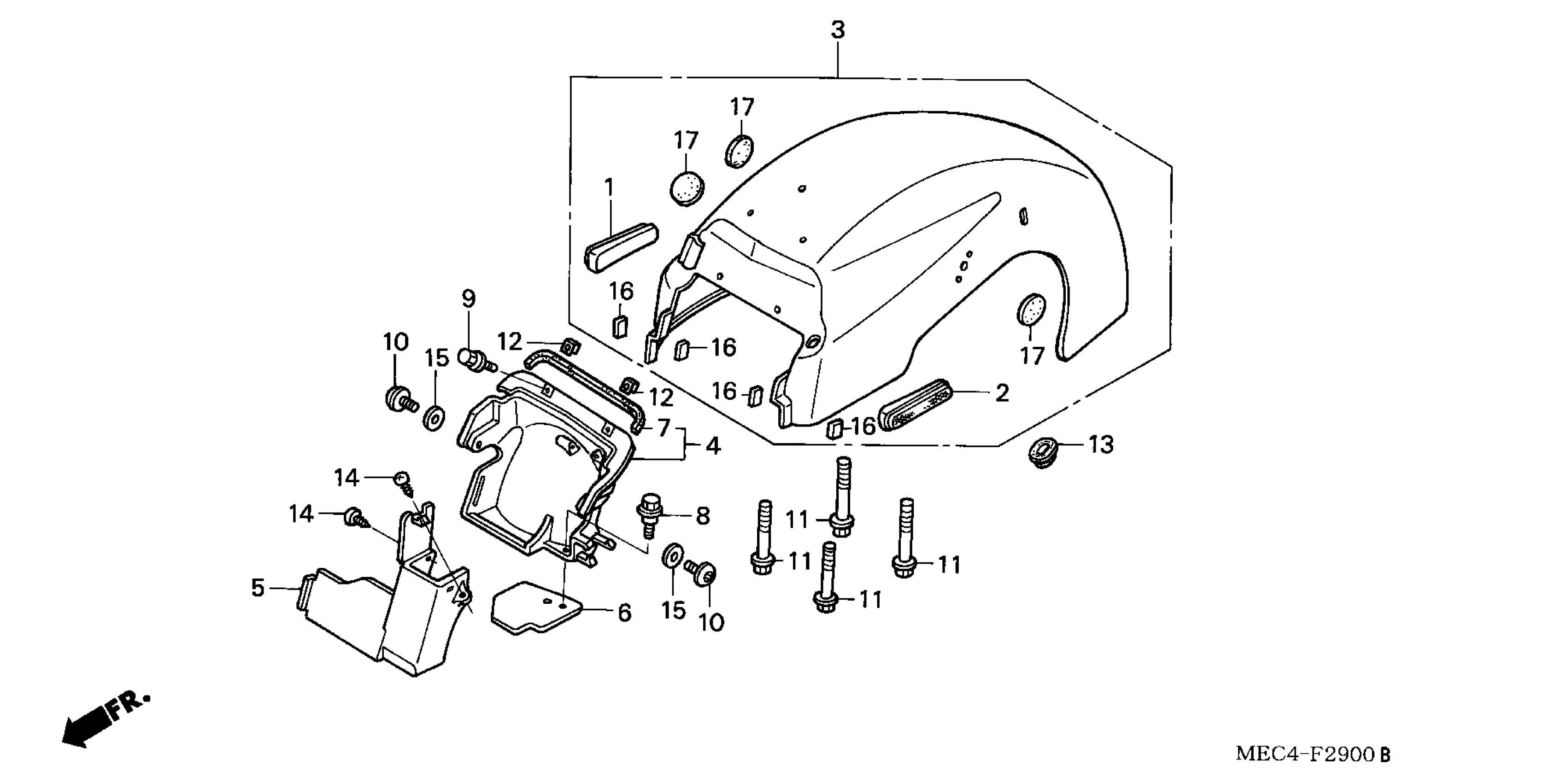

Honda NRX1800DAA (04) VALKYRIE RUNE, USA, VIN# 1HFSC530-4A000001 REAR FENDER Diagram

REFLECTOR, R. RR. SIDE REFLEX

33742-MEC-671

Unavailable

REFLECTOR, L. RR. SIDE REFLEX

33744-MEC-671

Unavailable

FENDER SET, RR. *NH1* (WL) (BLACK)

80110-MEC-670ZD

Unavailable

FENDER SET, RR. *P44P* (WL) (PEARL CHROMIUM PURPLE)

80110-MEC-670ZE

Unavailable

FENDER SET, RR. *R287M* (WL) (BLOODSTONE RED METALLIC)

80110-MEC-670ZF

Unavailable

SPLASH GUARD ASSY.

80125-MEC-000

$13.63

BOX, TOOL

80126-MEC-000

$4.81

PLATE, TOOL BOX

80127-MEC-000

$7.72

SEAL, R. LUGGAGE BOX

81252-GAM-000

Unavailable

BOLT, RR. FENDER

90003-GE0-000

$2.50

BOLT, FLANGE (5X12)

90101-088-780

$1.28

BOLT, SPECIAL (5X14)

90118-MBW-A10

$1.96

BOLT, FLANGE (10X60)

90126-MEC-000

Unavailable

NUT, CLIP (5MM)

90312-MT3-000

$4.37

GROMMET, RR. FENDER

90801-MEC-000

$2.10

WASHER, PLAIN (5MM)

94101-05700

$0.91

CUSHION

19105-MR8-300

$2.34

SEAL, SADDLEBAG HOLE

81217-MT2-300

$4.56
