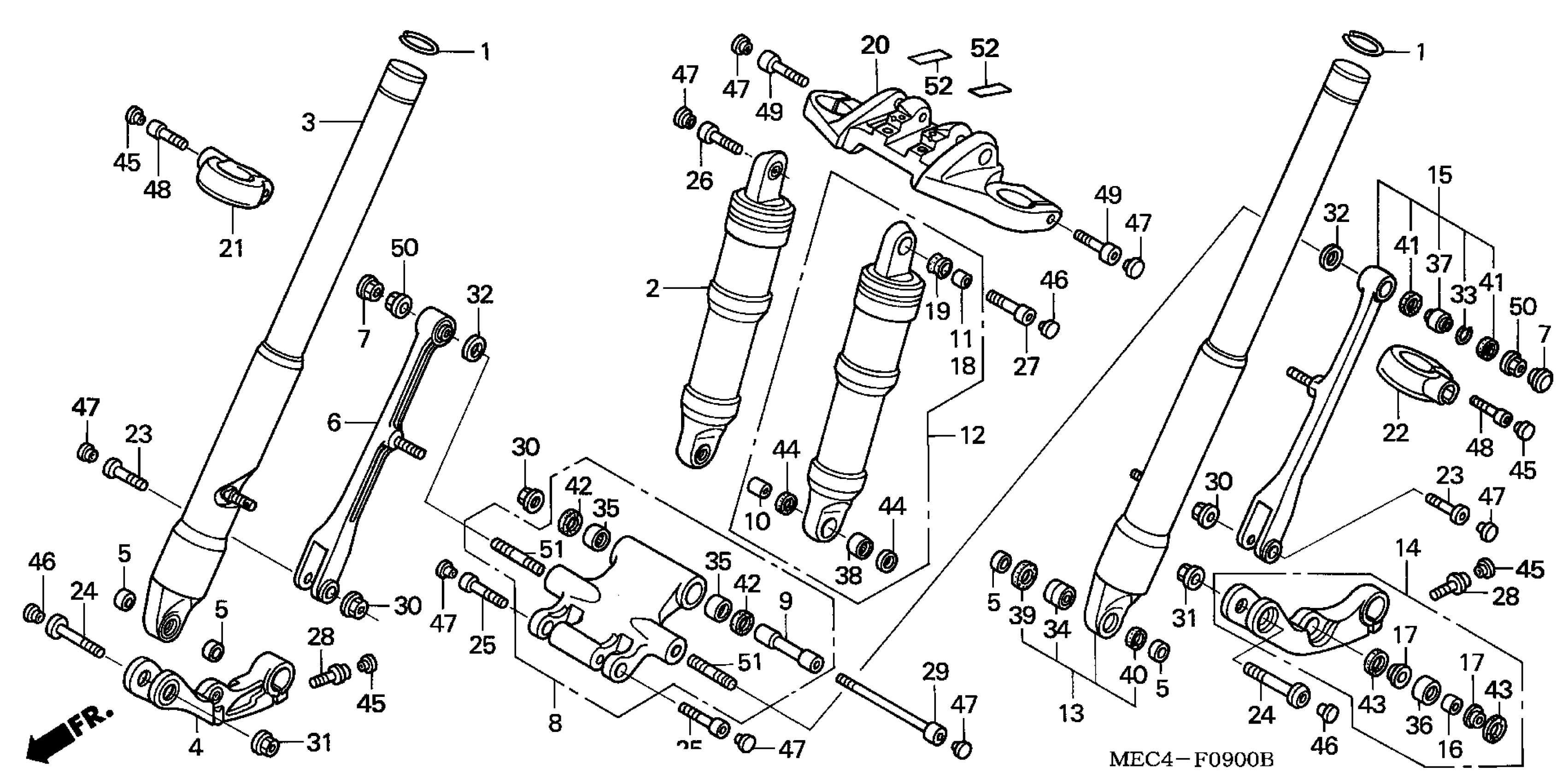

Honda NRX1800DAA (04) VALKYRIE RUNE, USA, VIN# 1HFSC530-4A000001 FRONT FORK Diagram

#

Description
Price

1

RING, STOPPER

51105-MEC-000

$4.51

2

CUSHION ASSY., R. FR. This part replaces 51400-MEC-003.

51400-MEC-013

Unavailable

2

CUSHION ASSY., R. FR.

51400-MEC-013

Unavailable

3

PIPE ASSY., R. FR. FORK

51410-MEC-003

Unavailable

4

ARM ASSY., R. FR. PIVOT

51450-MEC-000

$239.71

5

COLLAR, FR. PIVOT ARM

51452-MEC-000

$3.41

6

ROD ASSY., R. FR. PUSH

51460-MEC-010

$353.03

7

CAP, PUSH ROD

51469-MEC-000

Unavailable

8

ARM ASSY., FR. FORK

51470-MEC-010

Unavailable

9

COLLAR, CUSHION ARM

51475-MEC-000

$11.42

10

COLLAR, CUSHION

51486-MEC-003

$9.81

11

COLLAR, FR. FORK (L. SIDE)

51487-MEC-003

$4.04

12

CUSHION ASSY., L. FR. This part replaces 51500-MEC-003.

51500-MEC-013

Unavailable

12

CUSHION ASSY., L. FR.

51500-MEC-013

Unavailable

13

PIPE ASSY., L. FR. FORK

51510-MEC-003

Unavailable

14

ARM ASSY., L. FR. PIVOT

51550-MEC-000

$274.67

15

ROD ASSY., L. FR. PUSH

51560-MEC-010

$392.26

16

COLLAR D, CUSHION

52463-KZ4-B00

$3.05

17

COLLAR D, CUSHION SIDE

52464-KZ4-B00

$3.57

18

COLLAR, RR. SHOCK ABSORBER (R. SIDE)

52486-463-000

$7.23

19

BUSH, RUBBER (UPPER)

52489-HN0-671

$2.93

20

BRACKET, CUSHION (UPPER) This part replaces 53240-MEC-000.

53240-MEC-A00

Unavailable

20

BRACKET, CUSHION (UPPER)

53240-MEC-A00

Unavailable

21

HOLDER, R. FR. TURN SIGNAL

53275-MEC-670

Unavailable

22

HOLDER, L. FR. TURN SIGNAL

53276-MEC-670

Unavailable

23

BOLT, SOCKET (10X45)

90101-MEC-000

$3.67

24

BOLT, SOCKET (14X63)

90102-MEC-000

$5.46

25

BOLT, SOCKET (10X46)

90103-MEC-000

$3.67

26

BOLT, SOCKET (10X40)

90104-MEC-010

$3.46

27

BOLT, SOCKET (12X40)

90105-MEC-010

$4.97

28

BOLT, SPECIAL FLANGE (8X40)

90109-MEC-010

Unavailable

29

BOLT, SOCKET (10X130)

90111-MR7-000

$13.03

30

NUT, U (10MM)

90304-GE8-003

$3.42

31

NUT, U (14MM)

90305-GE8-003

$3.59

32

WASHER, RR. AXLE

90504-GE3-760

$2.81

33

CLIP, STOPPER (26MM)

90652-MEC-000

$1.83

34

BEARING, ANGULAR (15X35X22)

91051-MEC-003

Unavailable

35

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$17.67

36

BEARING, NEEDLE (19X26X15)

91074-KZ4-B01

$19.47

37

BEARING, SPHERICAL (12MM)

91074-MEC-003

Unavailable

38

BEARING, NEEDLE (19X26X15)

91075-MEC-003

$18.12

39

DUST SEAL (23X35X5)

91214-MAL-601

$7.48

40

DUST SEAL (23X31X5)

91251-MEC-003

$3.48

41

DUST SEAL (16X26X2.5)

91254-MBR-003

$5.32

42

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77

43

DUST SEAL (17X26X3)

91351-KZ4-B01

$3.89

44

DUST SEAL (19X26X4)

91351-MEC-003

$8.26

45

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.36

46

CAP, SOCKET BOLT (14MM)

91455-MEC-000

Unavailable

47

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$3.86

48

BOLT, SOCKET (6X25)

96700-06025-10

$1.18

49

BOLT, SOCKET (10X32)

96700-10032-10

$2.04

50

NUT, FLANGE (12MM)

90306-KF0-003

Unavailable

51

BOLT, STUD (212X55)

92900-12055-0E

$2.41
