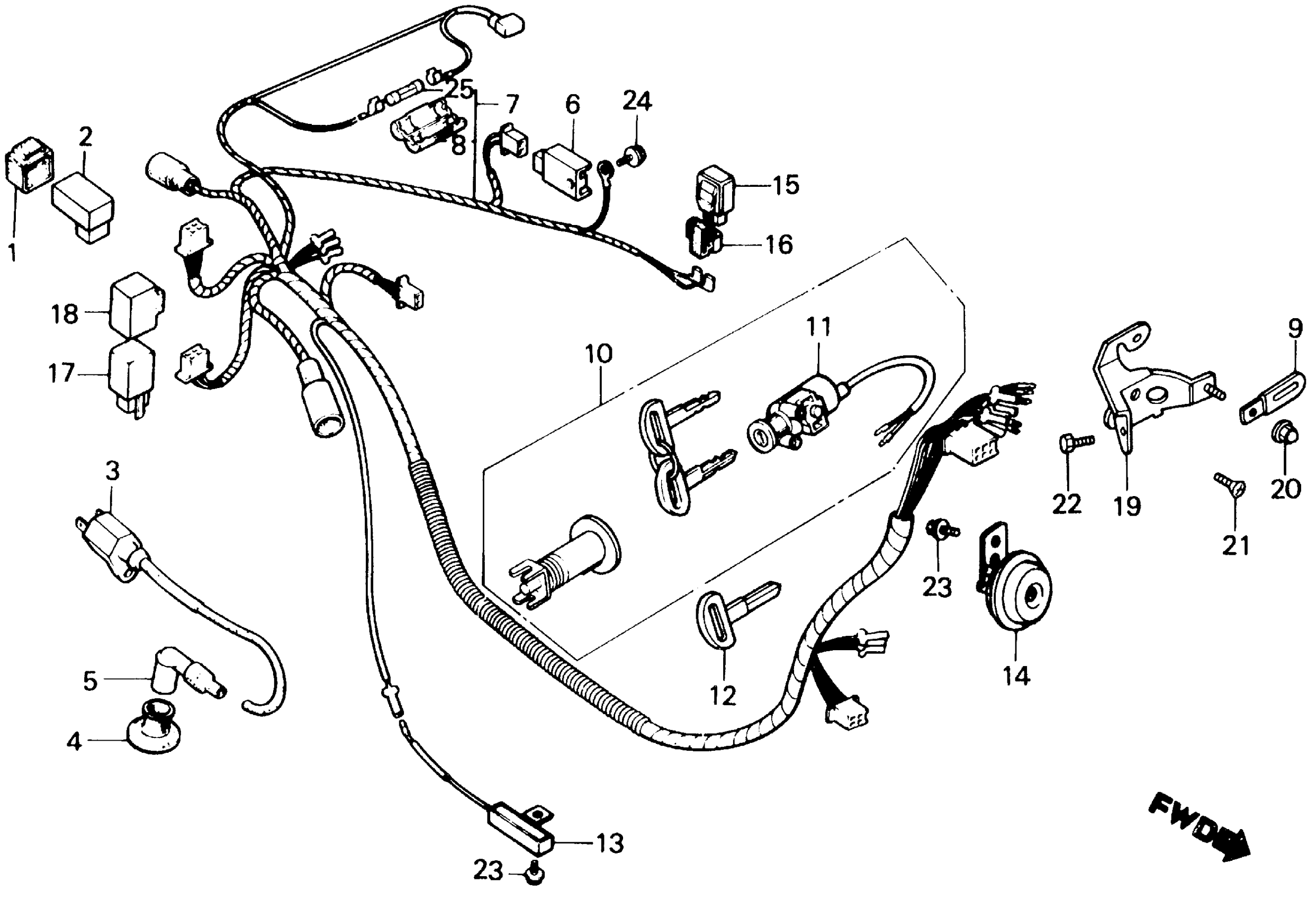

Honda NQ50AA (86) SPREE, JPN, VIN# JH2AF061-GS200023 TO JH2AF061-GS293542 WIRE HARNESS 84-86 Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-GE8-000.

30401-GB4-770

$5.72

2

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN) This part replaces 30410-GK8-781.

30410-GK8-784

Unavailable

2

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN) This part replaces 30410-GK8-782.

30410-GK8-784

Unavailable

2

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN) This part replaces 30410-GK8-783.

30410-GK8-784

Unavailable

2

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)

30410-GK8-784

Unavailable

3

COIL ASSY., IGNITION

30510-GF9-405

$84.33

3

COIL ASSY., IGNITION This part replaces 30510-GK8-000.

30510-GF9-405

$84.33

4

SEAL, IGNITION This part replaces 30605-GC8-010.

30605-GR1-010

Unavailable

4

SEAL, IGNITION This part replaces 30605-GR1-000.

30605-GR1-010

Unavailable

4

SEAL, IGNITION

30605-GR1-010

Unavailable

5

CAP SET, NOISE SUPPRESSOR This part replaces 30600-GN0-305.

30600-GN0-315

Unavailable

5

CAP SET, NOISE SUPPRESSOR

30600-GN0-315

Unavailable

5

CAP SET, NOISE SUPPRESSOR This part replaces 30700-GA7-602.

30600-GN0-315

Unavailable

6

RECTIFIER, REGULATOR (SHINDENGEN) This part replaces 31600-GN2-003.

31600-GW0-004

Unavailable

6

RECTIFIER, REGULATOR (SHINDENGEN)

31600-GW0-004

Unavailable

7

WIRE HARNESS (NOT AVAILABLE)

32100-GK8-870

Unavailable

8

CASE, FUSE (7A)

32120-155-000

Unavailable

9

CLIP, PULSER WIRE

32925-958-000

$2.92

10

LOCK SET This part replaces 35010-GK8-000.

35010-GK8-010

Unavailable

10

LOCK SET

35010-GK8-010

Unavailable

11

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-GK8-007.

35100-GK8-017

Unavailable

11

SWITCH ASSY., COMBINATION & LOCK

35100-GK8-017

Unavailable

12

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

12

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$9.74

12

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

12

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

12

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$9.74

12

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

13

RESISTOR (NOT AVAILABLE)

35400-GK8-870

Unavailable

14

HORN This part replaces 38110-GK1-005.

38110-GK1-505

Unavailable

14

HORN

38110-GK1-505

Unavailable

15

RELAY, TURN SIGNAL

38301-GN3-672

$61.82

16

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

$4.52

16

SUSPENSION, TURN SIGNAL RELAY

38306-KK4-000

$3.01

17

RELAY, STARTER

38501-GF4-701

Unavailable

18

SUSPENSION, STARTER RELAY (OMRON)

38506-GF4-701

Unavailable

19

PLATE, HANDLE LOCK

50123-GK8-000

Unavailable

20

NUT, FLANGE CAP (5MM)

90106-MB9-871

$2.86

21

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

22

BOLT, HEX. (5X10) This part replaces 92000-05010-0A.

92101-05010-0A

$1.49

22

BOLT, HEX. (5X10)

92101-05010-0A

$1.49

23

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

23

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

25

FUSE A (7A)

98200-10700

$1.49
