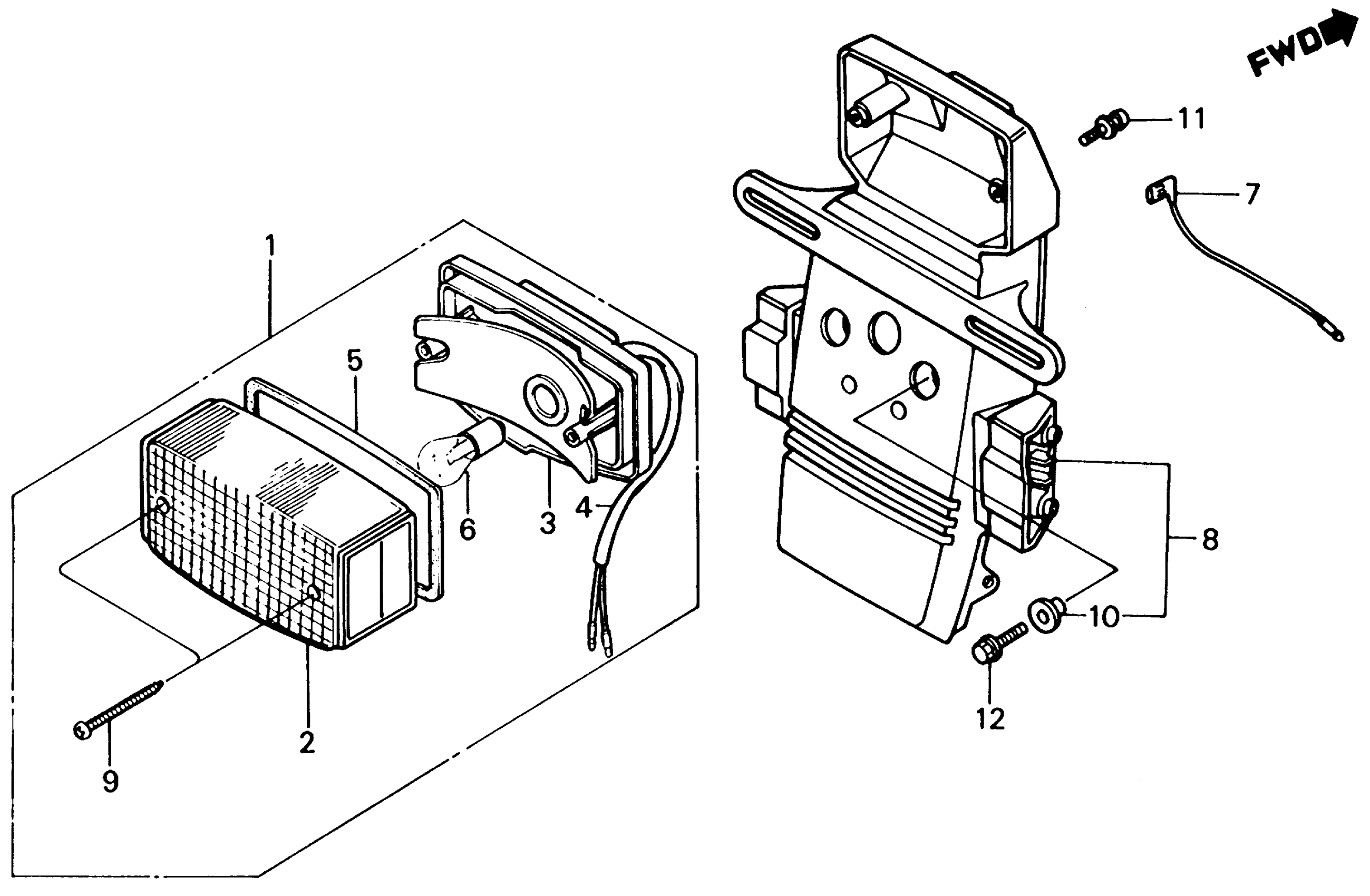

Honda NQ50A (87) SPREE, JPN, VIN# JH2AF060-HS300005 TAILLIGHT 87 Diagram

#

Description

Price

1

TAILLIGHT UNIT

33701-GK8-671

Unavailable

2

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

3

BASE, TAILLIGHT

33703-MC4-671

Unavailable

4

WIRE, TAILLIGHT

33705-KE6-880

Unavailable

5

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

6

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

6

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

7

CABLE, GROUND

32102-MF8-770

Unavailable

7

CABLE, GROUND This part replaces 38307-353-000.

32102-MF8-770

Unavailable

8

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-GK8-601

Unavailable

9

SCREW, TAPPING (4X40)

90105-GA7-003

$2.84

10

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

11

SCREW-WASHER (5X20)

93891-05020-00

$1.49

12

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

12

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
