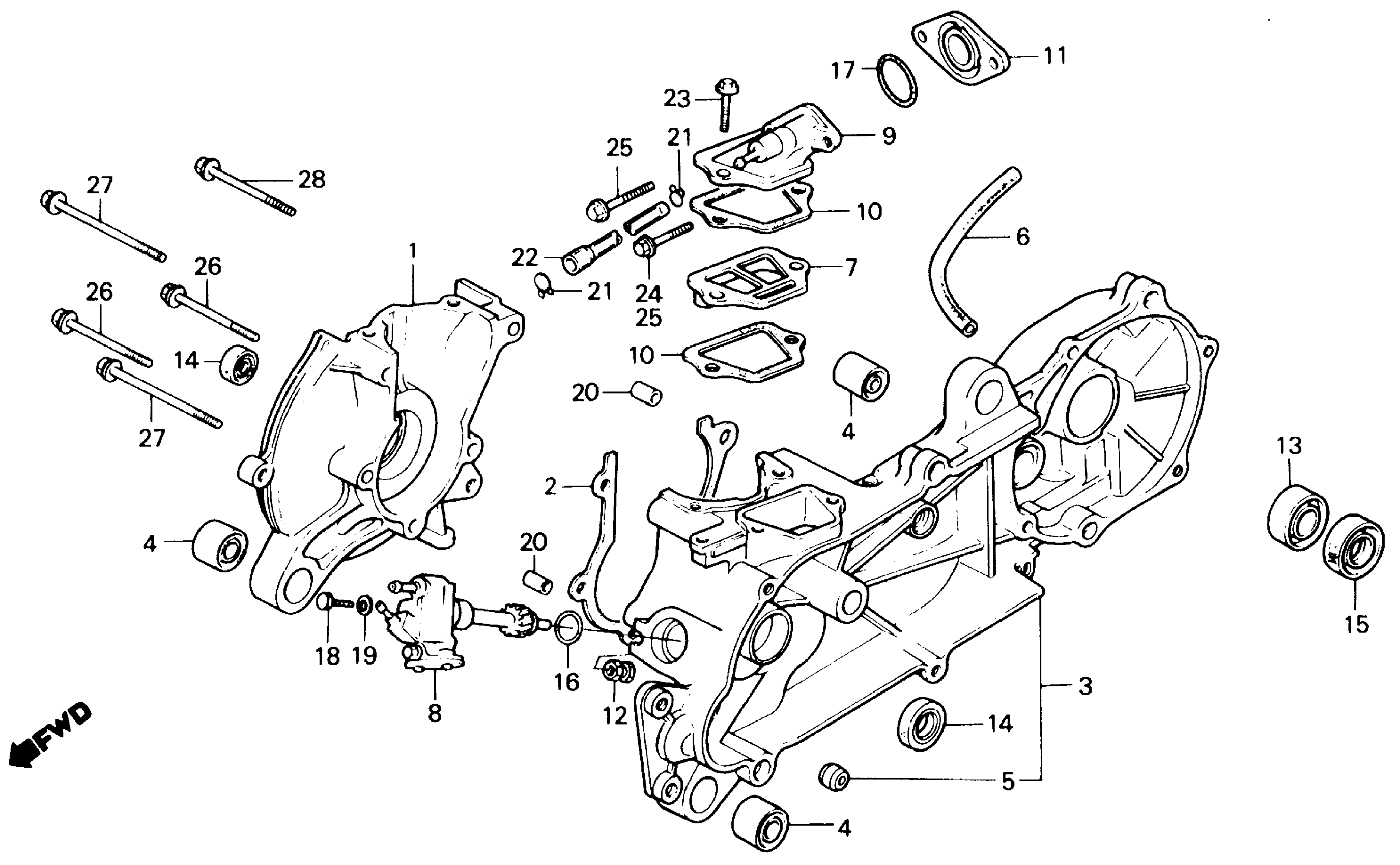

Honda NQ50A (87) SPREE, JPN, VIN# JH2AF060-HS300005 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R.

11101-GK8-781

$132.98

2

GASKET, CRANKCASE

11191-GK8-306

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-GK8-780.

11191-GK8-306

Unavailable

3

CRANKCASE, L.

11201-GK8-782

Unavailable

4

BUSH, RR. SHOCK ABSORBER RUBBER (LOWER)

11203-GC7-300

$10.71

5

BUSH (8X12X8)

11205-GAH-003

$9.77

5

BUSH (8X12X8) This part replaces 11205-GF0-761.

11205-GAH-003

$9.77

6

TUBE, BREATHER This part replaces 11210-GK8-000.

11210-GR2-405

Unavailable

6

TUBE, BREATHER

11210-GR2-405

Unavailable

7

VALVE, REED This part replaces 14100-GN2-000.

14100-GN2-010

Unavailable

7

VALVE, REED

14100-GN2-010

Unavailable

8

PUMP ASSY., OIL

15010-GR2-305

Unavailable

8

PUMP ASSY., OIL This part replaces 15100-GK8-013.

15010-GR2-305

Unavailable

9

PIPE, INLET (NOT AVAILABLE)

17100-GK8-670

Unavailable

10

GASKET, IN PIPE This part replaces 17111-GN2-000.

17111-GN2-010

Unavailable

10

GASKET, IN PIPE

17111-GN2-010

Unavailable

10

GASKET, IN PIPE This part replaces 17111-GN2-306.

17111-GN2-010

Unavailable

11

INSULATOR, CARBURETOR This part replaces 17121-GF0-306.

17121-GY1-860

Unavailable

11

INSULATOR, CARBURETOR This part replaces 17121-GF0-760.

17121-GY1-860

Unavailable

11

INSULATOR, CARBURETOR

17121-GY1-860

Unavailable

12

NUT, SPECIAL

90201-GK8-000

Unavailable

13

BEARING, RADIAL BALL (6202UU) (NIPPON SEIKI) (NOT AVAILABLE) This part replaces 91028-GF0-003.

91028-GF0-005

Unavailable

13

BEARING, RADIAL BALL (6202UU) (NIPPON SEIKI) (NOT AVAILABLE) This part replaces 91028-GF0-004.

91028-GF0-005

Unavailable

13

BEARING, RADIAL BALL (6202UU) (NIPPON SEIKI) (NOT AVAILABLE)

91028-GF0-005

Unavailable

14

OIL SEAL (15.6X23.5X7)

91201-GK8-003

$6.81

15

OIL SEAL (20X35X5) This part replaces 91254-GK8-003.

91266-ME5-003

Unavailable

15

OIL SEAL (20X35X5)

91266-ME5-003

Unavailable

16

O-RING (18.3X2.3) (ARAI) This part replaces 91301-166-000.

91301-147-023

$2.20

17

O-RING (20.6X1.9)

91304-GB0-910

$3.77

18

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$1.49

18

BOLT, HEX. (5X16)

92101-05016-0A

$1.49

19

WASHER, PLAIN (5MM)

94101-05000

$1.49

20

PIN, DOWEL (8X20)

94301-08200

$2.25

21

CLIP, TUBE (B6.5)

95002-02650

$1.49

22

TUBE, OIL PASSAGE

15525-GR2-010

Unavailable

23

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

23

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

24

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

24

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

25

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

25

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

26

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

26

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

27

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

27

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

28

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

28

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
