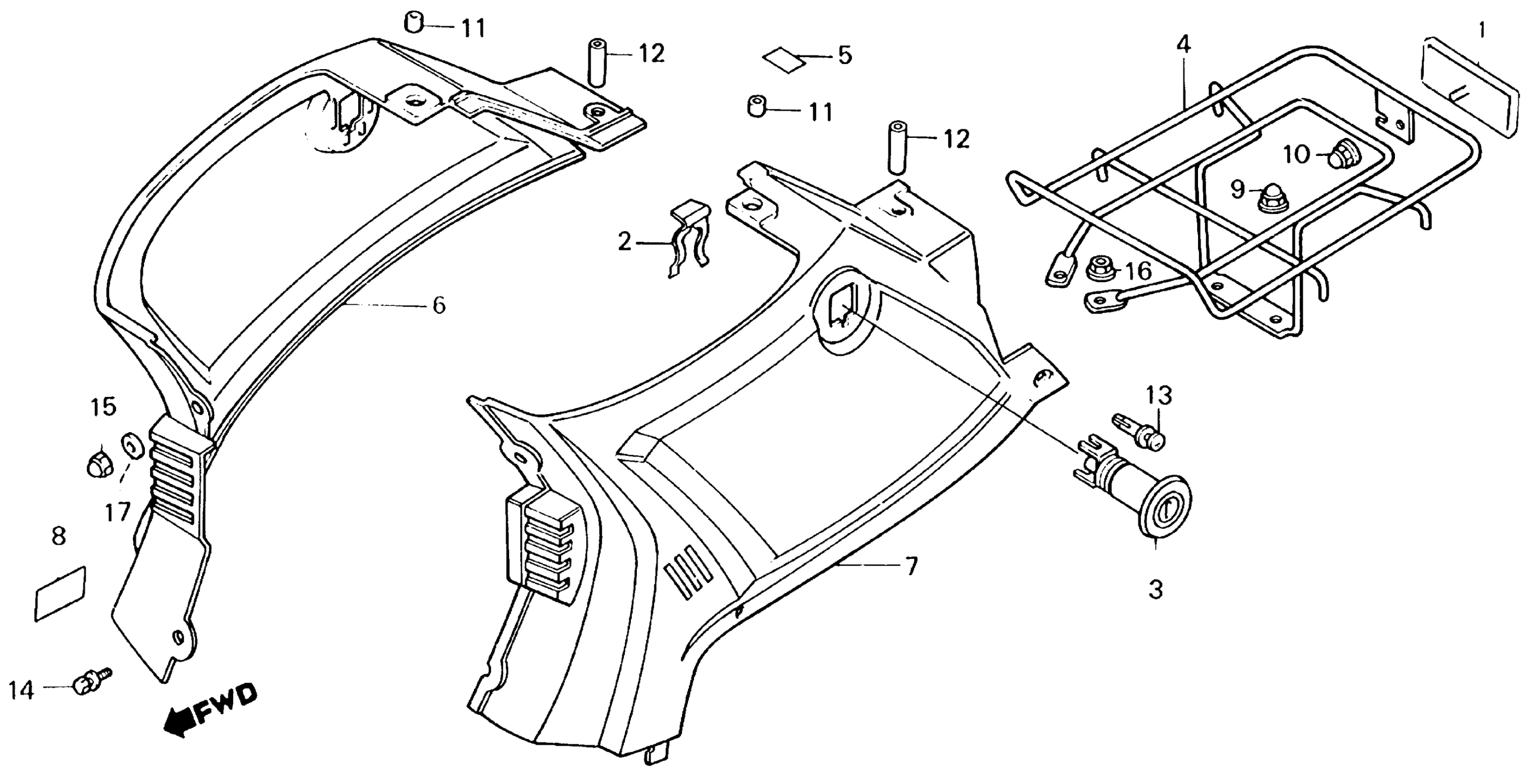

Honda NQ50A (87) SPREE, JPN, VIN# JH2AF060-HS300005 BODY COVER 87 Diagram

#

Description
Price

1

REFLECTOR, REFLEX

33741-GK8-672

Unavailable

2

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

3

LOCK ASSY., SEAT (NOT AVAILABLE)

77230-GK8-000

Unavailable

4

CARRIER, LUGGAGE

81200-GK8-600

Unavailable

5

LABEL, RR. CARRIER WARNING *NH0* (CHAMPIONSHIP WHITE)

81220-GN2-660ZA

Unavailable

5

LABEL, RR. CARRIER WARNING *NH1* (BLACK)

81220-GN2-660ZB

Unavailable

6

COVER, R. BODY *NH148* (WOL) (MU BLACK)

83500-GK8-600ZA

Unavailable

6

COVER, R. BODY *R127* (WOL) (SPARKLING RED) (NOT AVAILABLE)

83500-GK8-600ZB

Unavailable

6

COVER, R. BODY *B108* (WOL) (KRITI BLUE)

83500-GK8-600ZC

Unavailable

7

COVER, L. BODY *NH148* (WOL) (MU BLACK)

83600-GK8-600ZA

Unavailable

7

COVER, L. BODY *R127* (WOL) (SPARKLING RED)

83600-GK8-600ZB

Unavailable

7

COVER, L. BODY *B108* (WOL) (KRITI BLUE) (NOT AVAILABLE)

83600-GK8-600ZC

Unavailable

8

MARK, MAINTENANCE CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87542-GN2-600ZA

Unavailable

8

MARK, MAINTENANCE CAUTION *NH1* (BLACK)

87542-GN2-600ZB

Unavailable

9

NUT, CAP (6MM)

90201-428-900

$2.23

9

NUT, CAP This part replaces 90215-GM0-000.

90201-428-900

$2.23

10

NUT, FLANGE CAP (5MM)

90303-GC2-630

$3.45

11

COLLAR (6MM)

90311-GJ6-000

Unavailable

12

COLLAR (6MM)

90311-GK8-000

$3.01

13

CLIP, BODY COVER

90683-GR1-003

$2.92

14

BOLT-WASHER (6X16)

93404-06016-00

$1.55

14

BOLT-WASHER (6X16) This part replaces 93494-06016-00.

93404-06016-00

$1.55

15

NUT, CAP (6MM)

94021-06020

$1.73

15

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

15

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

16

NUT, FLANGE (6MM)

94050-06000

$1.49

17

WASHER, PLAIN (6MM)

94103-06200

$1.49
