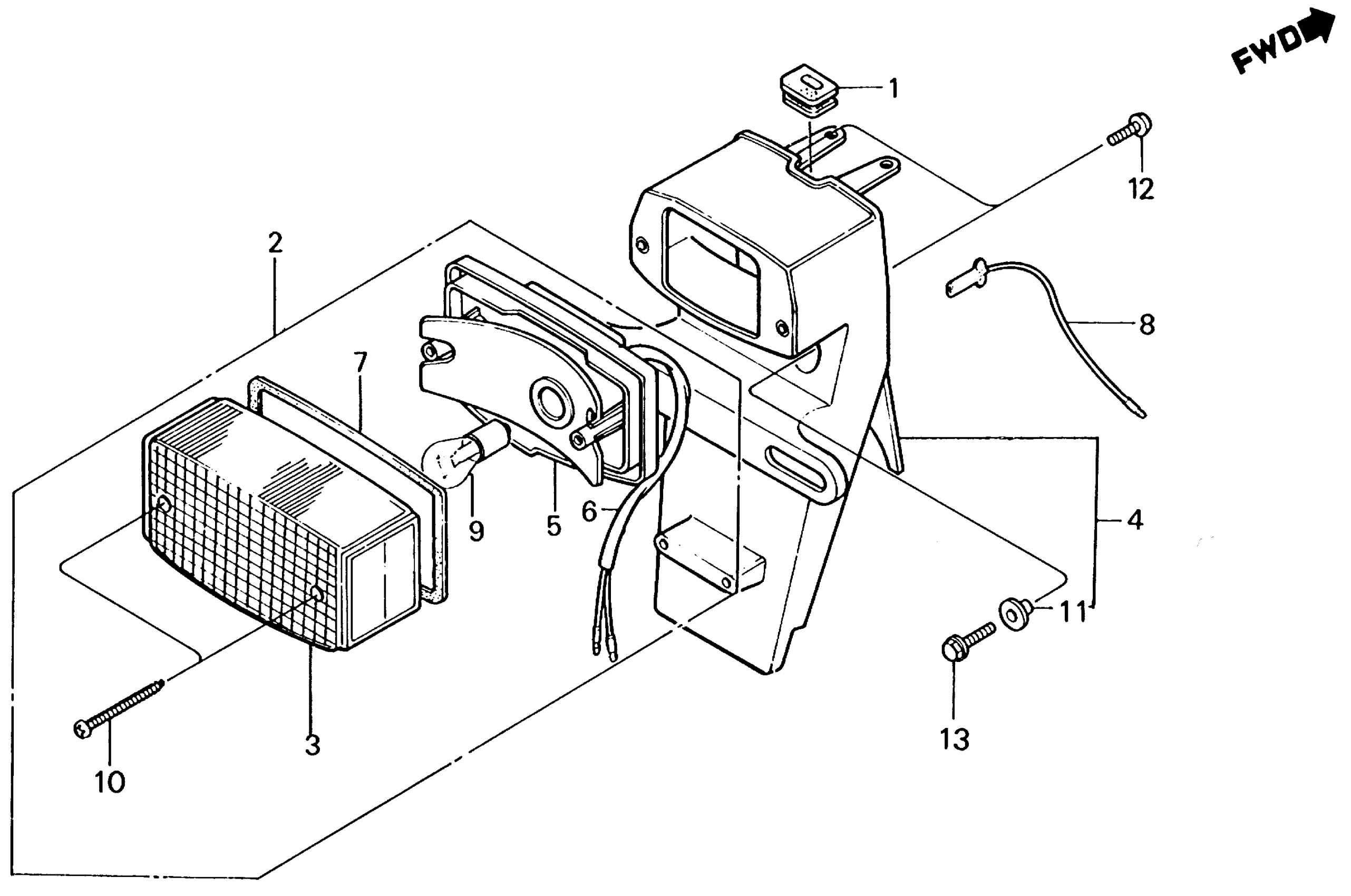

Honda NQ50A (86) SPREE, JPN, VIN# JH2AF060-GS200013 TO JH2AF060-GS308127 TAILLIGHT 84-86 Diagram

GROMMET (NOT AVAILABLE)

33418-GK8-670

Unavailable

TAILLIGHT UNIT

33701-GK8-671

Unavailable

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

BRACKET, TAILLIGHT (NOT AVAILABLE)

33703-GK8-671

Unavailable

BASE, TAILLIGHT

33703-MC4-671

Unavailable

WIRE, TAILLIGHT

33705-KE6-880

Unavailable

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

WIRE, GROUND

33711-GE8-671

Unavailable

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

SCREW, TAPPING (4X40)

90105-GA7-003

$2.84

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X20) This part replaces 93500-05020-1A.

93500-05020-0A

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
