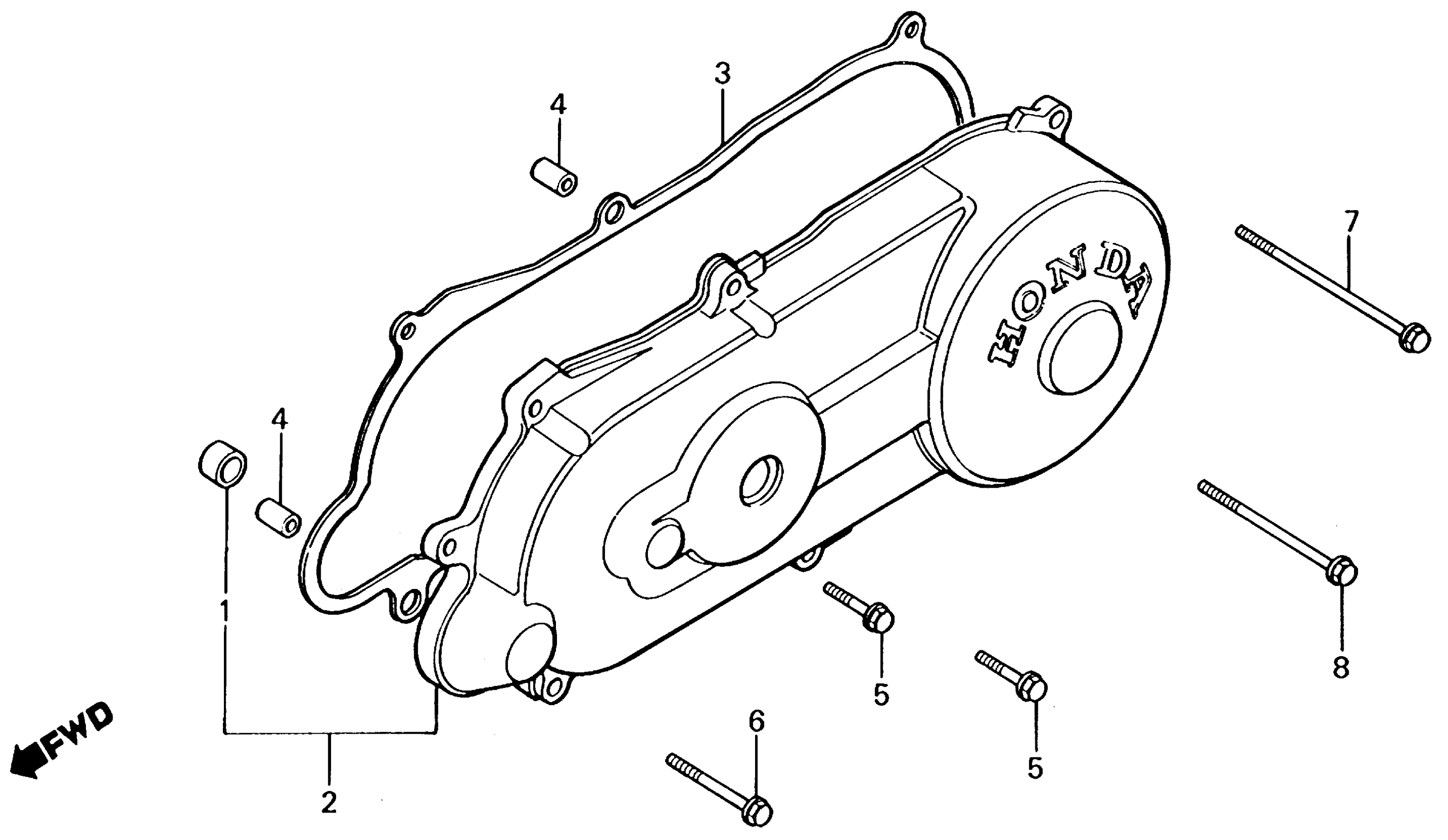

Honda NQ50A (86) SPREE, JPN, VIN# JH2AF060-GS200013 TO JH2AF060-GS308127 LEFT SIDE COVER Diagram

#

Description

Price

1

BUSH (8X12X8)

11205-GAH-003

$9.77

1

BUSH (8X12X8) This part replaces 11205-GF0-761.

11205-GAH-003

$9.77

2

COVER, L. SIDE (NOT AVAILABLE) This part replaces 11341-GR2-000.

11341-GR2-010

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-GR2-000.

11395-GR2-306

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-GR2-306

Unavailable

4

PIN A, DOWEL (10X14)

94301-10140

$2.28

5

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

5

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

6

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

6

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

7

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

7

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

8

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

8

BOLT, FLANGE (6X55)

96001-06055-00

$1.62
