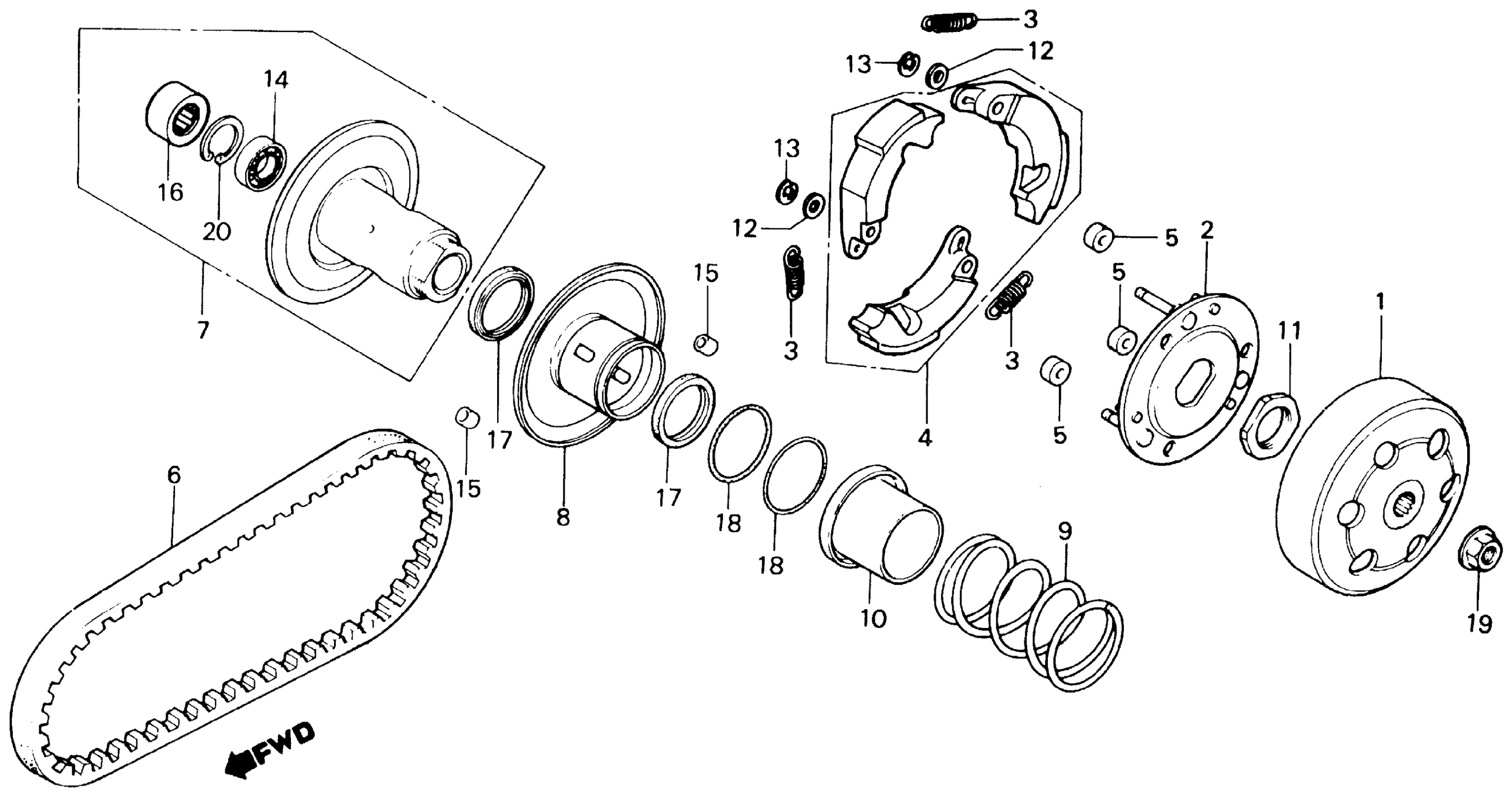

Honda NQ50A (86) SPREE, JPN, VIN# JH2AF060-GS200013 TO JH2AF060-GS308127 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER) This part replaces 22100-GK8-790.

22100-GK8-010

Unavailable

1

CLUTCH (OUTER) This part replaces 22100-GK8-000.

22100-GK8-010

Unavailable

1

CLUTCH (OUTER)

22100-GK8-010

Unavailable

2

PLATE, DRIVE

22350-GK8-000

Unavailable

3

SPRING, CLUTCH

22401-GK8-000

Unavailable

4

WEIGHT SET, CLUTCH This part replaces 22535-GK8-305.

22535-GK8-325

Unavailable

4

WEIGHT SET, CLUTCH This part replaces 22535-GK8-315.

22535-GK8-325

Unavailable

4

WEIGHT SET, CLUTCH

22535-GK8-325

Unavailable

5

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

6

BELT, DRIVE

23100-GK8-870

$38.95

7

FACE SET, DRIVEN

23205-GK8-305

Unavailable

8

FACE, MOVABLE DRIVEN (NOT AVAILABLE)

23220-GK8-000

Unavailable

9

SPRING, DRIVEN FACE

23233-GK8-000

Unavailable

10

COLLAR, SEAL This part replaces 23237-GR2-000.

23237-GK8-000

Unavailable

10

COLLAR, SEAL

23237-GK8-000

Unavailable

11

NUT, SPECIAL (28MM)

90202-187-000

$7.32

12

WASHER, THRUST (6MM)

90442-GB2-000

$3.80

13

CIRCLIP (6MM)

90454-GB2-000

$1.79

14

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$24.49

15

ROLLER (6X8.5)

91102-GK8-000

Unavailable

16

BEARING, NEEDLE (15X25X15) (TOYO)

91103-GK8-003

Unavailable

17

OIL SEAL (34X39X3) This part replaces 91211-GK8-003.

91211-GK8-013

$5.20

17

OIL SEAL (34X39X3)

91211-GK8-013

$5.20

18

O-RING, PINION CAP (36.7X1.9)

91351-642-000

$4.22

19

NUT, FLANGE (10MM)

94050-10000

$1.59

20

CIRCLIP (INNER) (24MM)

94520-24000

$1.49
