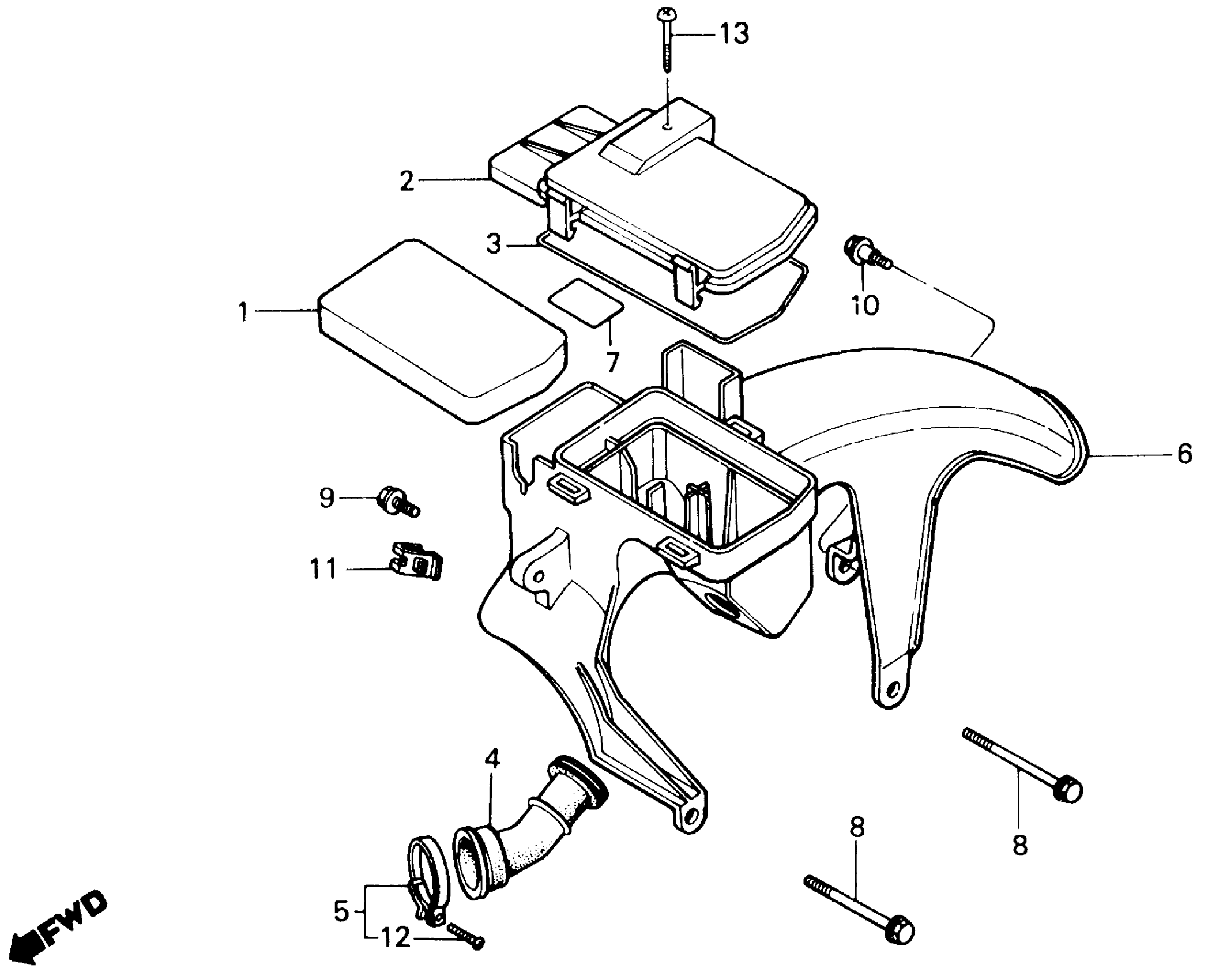

Honda NQ50A (86) SPREE, JPN, VIN# JH2AF060-GS200013 TO JH2AF060-GS308127 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17205-GK8-000

$3.29

2

COVER, AIR CLEANER HOUSING

17207-GK8-000

Unavailable

3

SEAL, AIR CLEANER COVER This part replaces 17212-GE8-000.

17212-GS9-405

Unavailable

3

SEAL, AIR CLEANER COVER

17212-GS9-405

Unavailable

4

TUBE, AIR CLEANER CONNECTING This part replaces 17253-GK8-000.

17253-GK8-010

Unavailable

4

TUBE, AIR CLEANER CONNECTING

17253-GK8-010

Unavailable

5

BAND, FR. FORK BOOT

51612-446-003

Unavailable

6

FENDER, RR.

80101-GK8-000

Unavailable

7

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

8

BOLT, FLANGE (6X35)

90102-GK8-000

Unavailable

9

BOLT, FLANGE (6MM)

90110-147-000

$3.83

10

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

11

NUT, CLIP (6MM)

90305-GK8-000

$2.39

12

SCREW, PAN (3X20)

93500-03020-0A

$1.49

13

SCREW, TAPPING (4X25)

93904-24680

Unavailable
