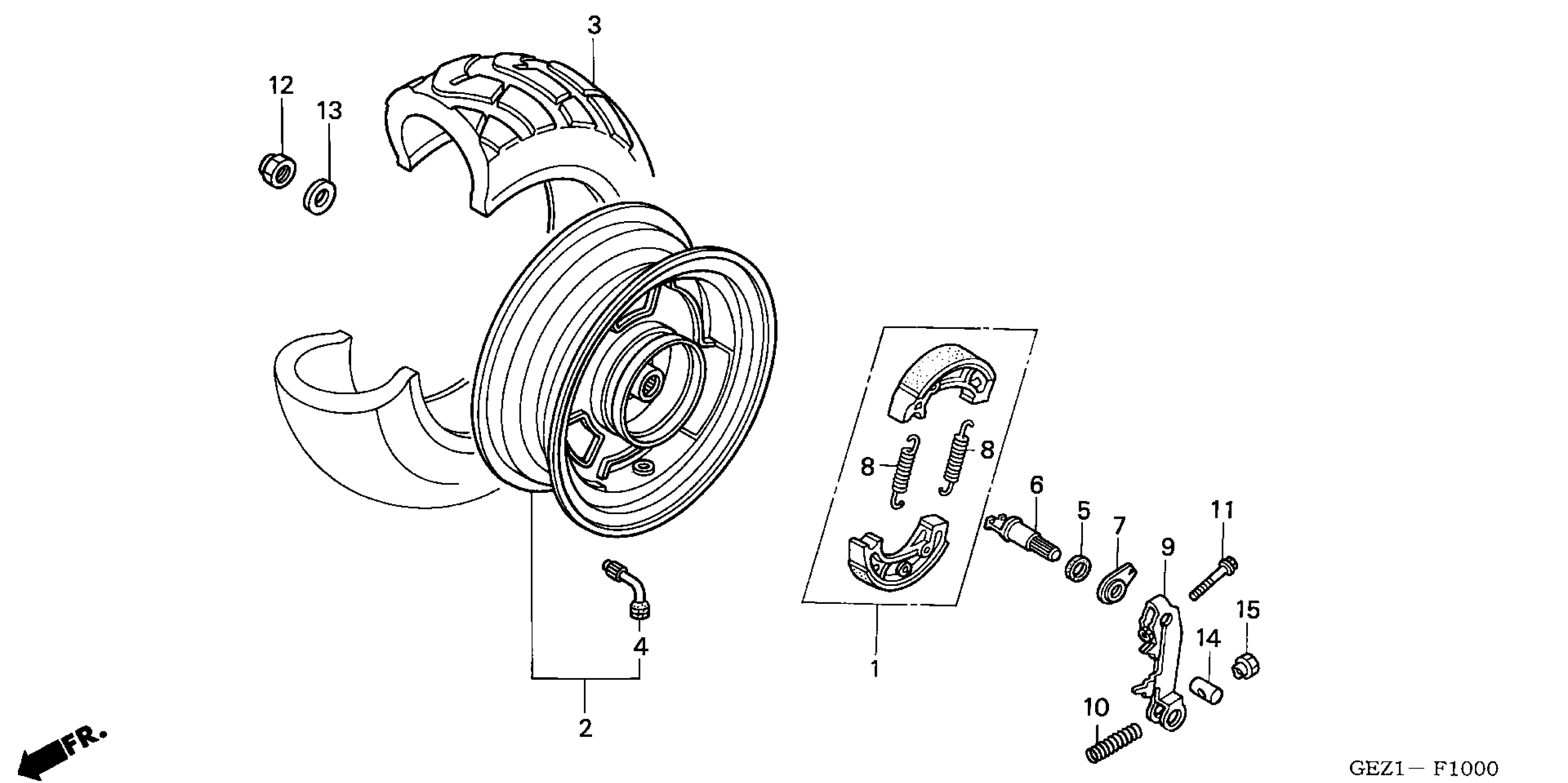

Honda NPS50SA (06) RUCKUS, JPN, VIN# JH2AF584-6K200001 REAR WHEEL Diagram

#

Description
Price

1

SHOE SET, BRAKE (ASK)

06430-GCW-000

$30.07

2

WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC) This part replaces 42650-GEZ-671ZA.

42650-GGA-305ZA

$151.92

2

WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC) This part replaces 42650-GEZ-672ZA.

42650-GGA-305ZA

$151.92

2

WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC)

42650-GGA-305ZA

$151.92

3

TIRE | Use from Frame SN 6K201376 This part replaces 42711-GEZ-672.

42711-GEZ-675

$75.02

3

TIRE | Use up to Frame SN 6K201376 This part replaces 42711-GEZ-672.

42711-GEZ-675

$75.02

3

TIRE This part replaces 42711-GEZ-673.

42711-GEZ-675

$75.02

3

TIRE This part replaces 42711-GEZ-674.

42711-GEZ-675

$75.02

4

VALVE, RIM (KENDA) This part replaces 42753-GEZ-009.

42753-GEZ-019

$9.04

4

VALVE, RIM (KENDA)

42753-GEZ-019

$9.04

5

SEAL, BRAKE CAM

43134-196-000

$2.56

6

CAM, RR. BRAKE

43141-GR0-003

$16.89

7

INDICATOR, RR. BRAKE This part replaces 43145-GK8-000.

43145-GN2-000

$4.28

7

INDICATOR, RR. BRAKE

43145-GN2-000

$4.28

7

INDICATOR, RR. BRAKE This part replaces 43145-GR2-000.

43145-GN2-000

$4.28

8

SPRING, BRAKE SHOE

43151-GC4-000

$4.76

9

ARM, RR. BRAKE

43410-GEZ-000

$11.97

10

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.74

11

BOLT, FLANGE (5X25)

90112-GG2-900

$4.62

12

NUT, U (14MM)

90305-197-013

$6.14

13

WASHER (26X14X2.8)

90501-GAH-000

$6.63

14

JOINT A, BRAKE ARM

95015-31001

$1.53

15

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
