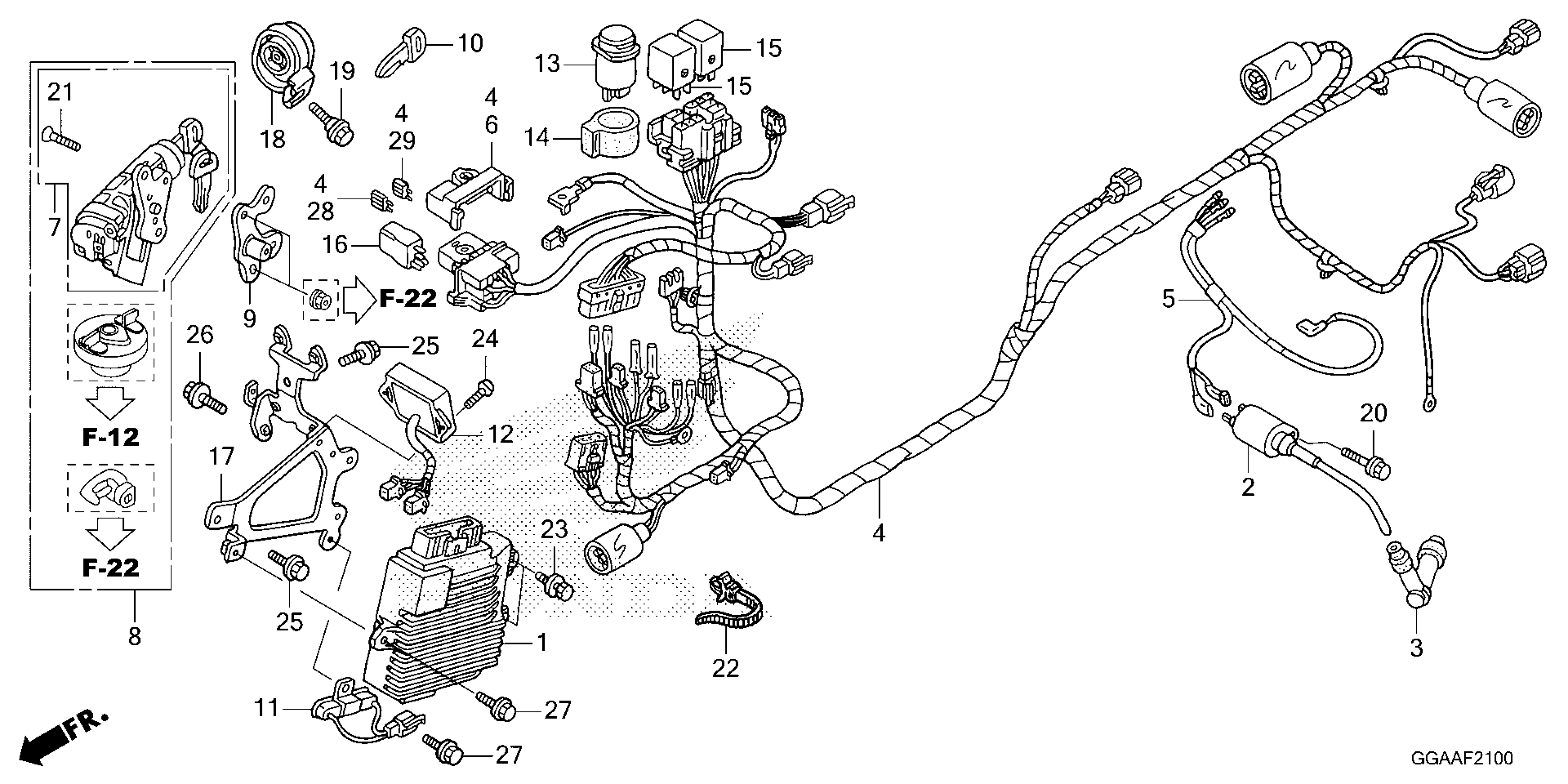

Honda NPS50AC (25) MOTOR SCOOTER, JPN, VIN# JH2AF581-SK300001 WIRE HARNESS Diagram

#

Description
Price

1

CONTROL UNIT, ENGINE

30400-GEZ-612

$631.00

2

COIL, IGNITION

30510-GET-003

$59.93

3

CAP NOISE SUPPRESSOR

30700-GN5-902

$18.56

4

WIRE HARNESS

32100-GEZ-610

$254.13

5

SUB-WIRE, IGNITION

32101-GEZ-610

$13.55

6

COVER, BATTERY BOX

32111-GEZ-671

$3.81

7

SWITCH ASSY. SET, COMBINATION & LOCK

35012-GEZ-691

$86.56

8

KEY & SCREW SET

35014-GEZ-612

$202.31

9

GUIDE, COMBINATION & LOCK

35105-GET-000

$7.72

10

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-GET-007

$10.20

10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-GET-007

$10.20

11

RESISTOR

35400-GCK-030

$16.61

12

DRIVE UNIT, LED

37565-GEZ-671

$43.80

13

RELAY, AUDIBLE PILOT & TURN SIGNAL

38301-GET-671

$43.92

14

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

15

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

16

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$10.37

17

STAY, PILOT BOX

64303-GEZ-010

$28.77

18

CAP, SWITCH *NH1* (BLACK)

81136-GEZ-670ZA

$12.93

19

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.24

20

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

21

SCREW, FLAT (6X22)

90164-GEE-003

$1.49

22

STRAP, CABLE (105MM) *NH1* (BLACK)

90672-SB2-003

$5.47

23

BOLT-WASHER (5X12)

93401-05012-00

$1.49

24

SCREW, PAN (4X26)

93500-04016-0A

$1.49

25

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

26

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

28

FUSE, MINI (10A)

98200-41000

$1.49

29

FUSE, MINI (20A)

98200-42000

$1.49
