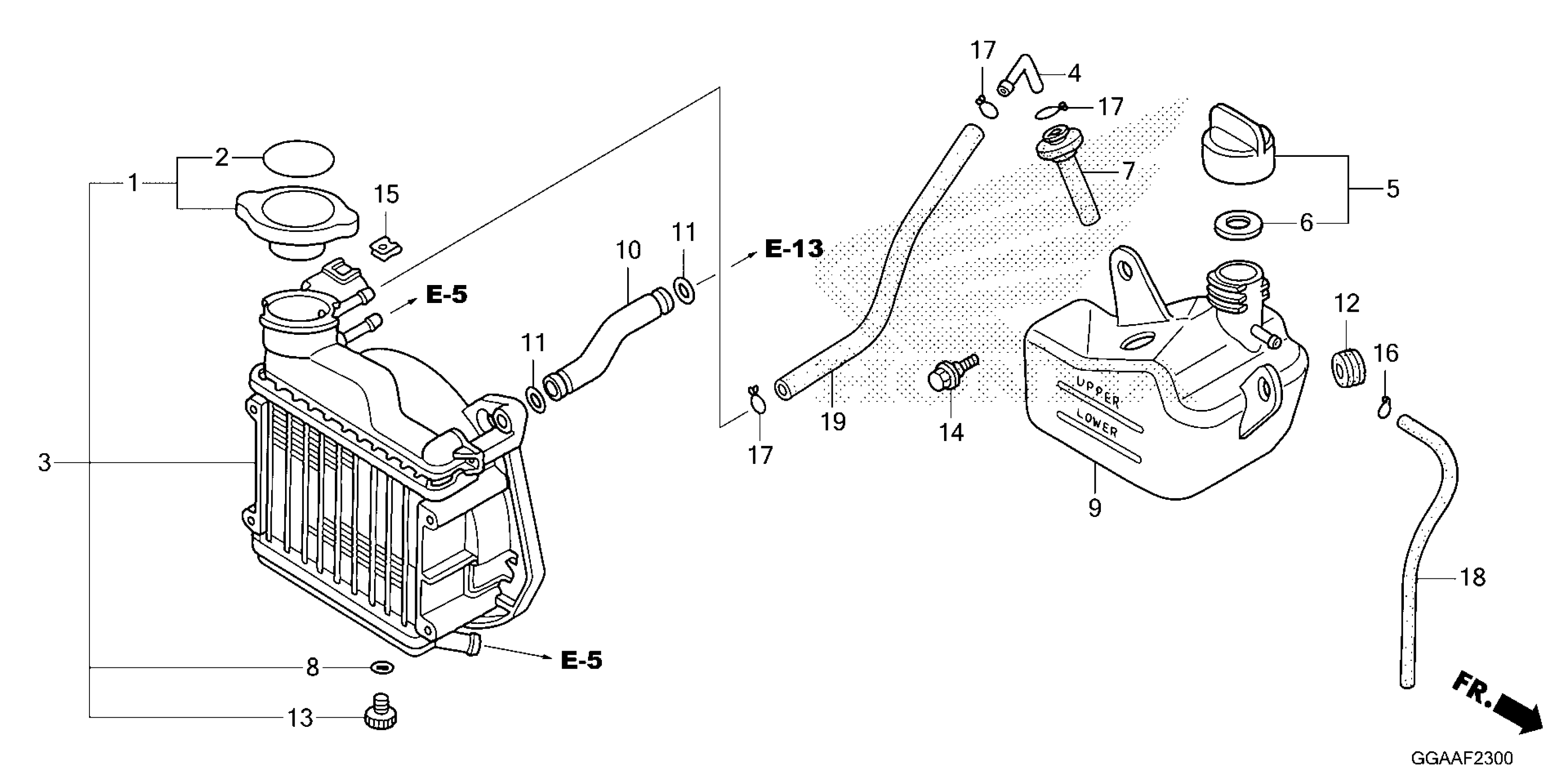

Honda NPS50AC (25) MOTOR SCOOTER, JPN, VIN# JH2AF581-SK300001 RADIATOR Diagram

CAP, RADIATOR

19037-GEE-710

$27.80

LABEL, RADIATOR CAP

19046-PAA-A00

$3.40

RADIATOR ASSY. (COO)

19100-GGA-305

$84.79

JOINT, TUBE

19103-MB9-000

$6.05

CAP ASSY., RESERVE TANK

19106-GET-000

$6.59

GASKET, RESERVE TANK

19107-GET-000

$3.58

TUBE, LEVEL

19108-GEZ-610

$4.76

SEAL, DRAIN

19109-GET-003

$2.09

TANK, RESERVE (COO)

19111-GEZ-315

$22.74

TANK, RESERVE (COO) This part replaces 19111-GEZ-610.

19111-GEZ-315

$22.74

PIPE, RADIATOR

19422-GET-000

$13.93

O-RING (11.8X2.4)

51996-SA5-800

$1.87

RUBBER, FR. COVER MOUNTING

64310-124-000

$2.85

BOLT, DRAIN

90103-GET-003

$3.90

BOLT, FLANGE (6MM)

90111-162-000

$2.66

NUT, CLIP (6MM)

90305-GEE-710

$1.50

CLIP, TUBE (B10)

95002-02100

$1.75

CLIP, TUBE (B12)

95002-02120

$1.79

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

Unavailable

BULK HOSE (7.3X1000)

95005-75001-20M

$30.96
