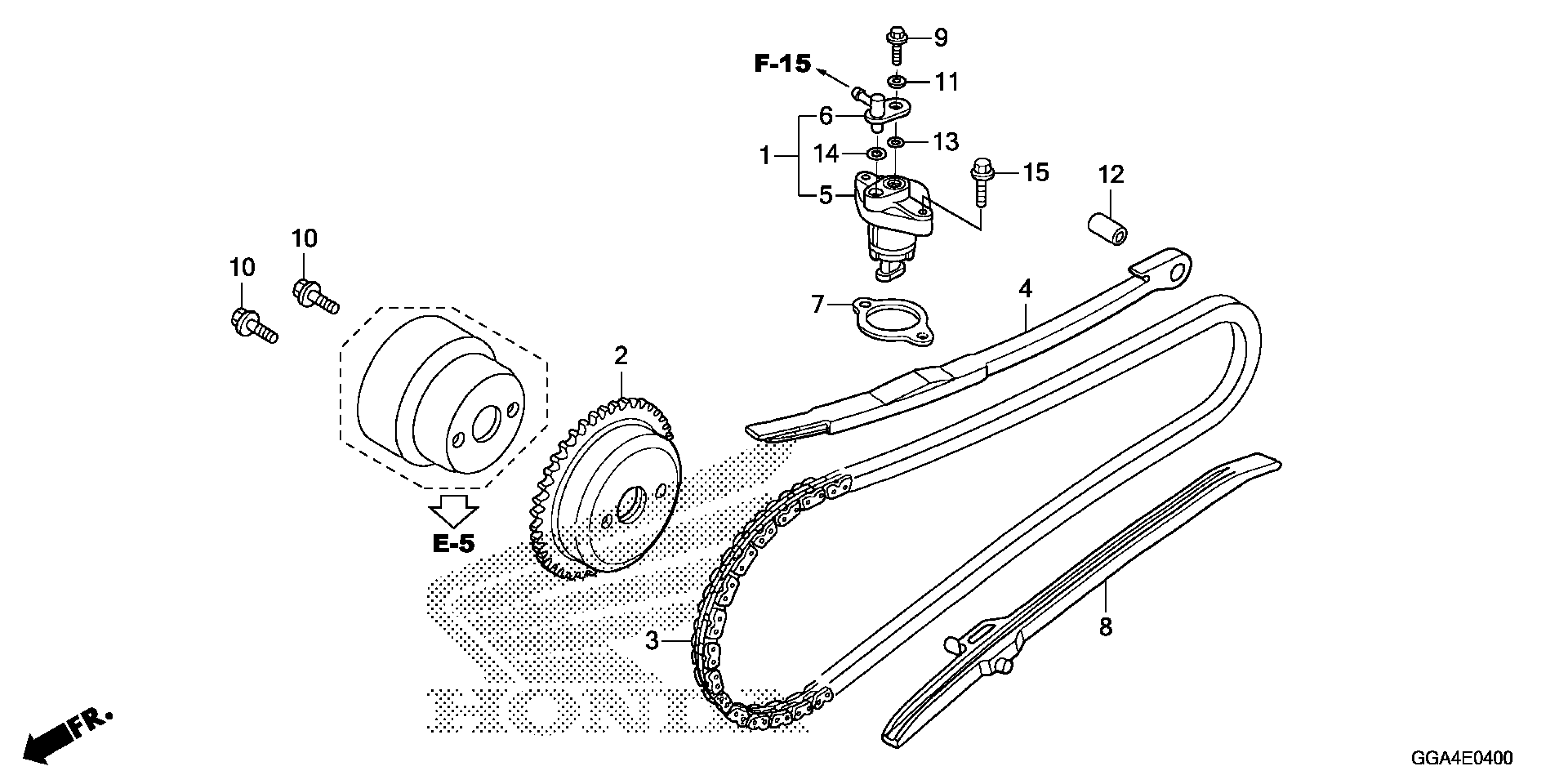

Honda NPS50AC (20) MOTOR SCOOTER, JPN, VIN# JH2AF581-LK800001 CAM CHAIN@TENSIONER Diagram

LIFTER SET, TENSIONER

06145-GEZ-305

$97.92

SPROCKET, CAM (34T)

14321-GET-000

$30.52

CHAIN, CAM (82L) (BORG WARNER)

14401-GET-004

$23.09

TENSIONER, CAM CHAIN

14510-GET-000

$49.54

LIFTER ASSY., TENSIONER

14520-GEZ-612

$71.98

JOINT, PCV

14525-GEZ-611

$19.69

GASKET, TENSIONER LIFTER

14560-KCW-851

$5.05

GUIDE, CAM CHAIN

14611-GET-000

$23.13

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, KNOCK (5MM)

90083-GET-000

$1.49

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.49

PIN, DOWEL (6X15)

90702-MG8-000

$2.97

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

O-RING (6.8X1.9) O-RING B (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

O-RING (1.5X9.5)

91306-MG3-000

$2.33

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

$2.33

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
