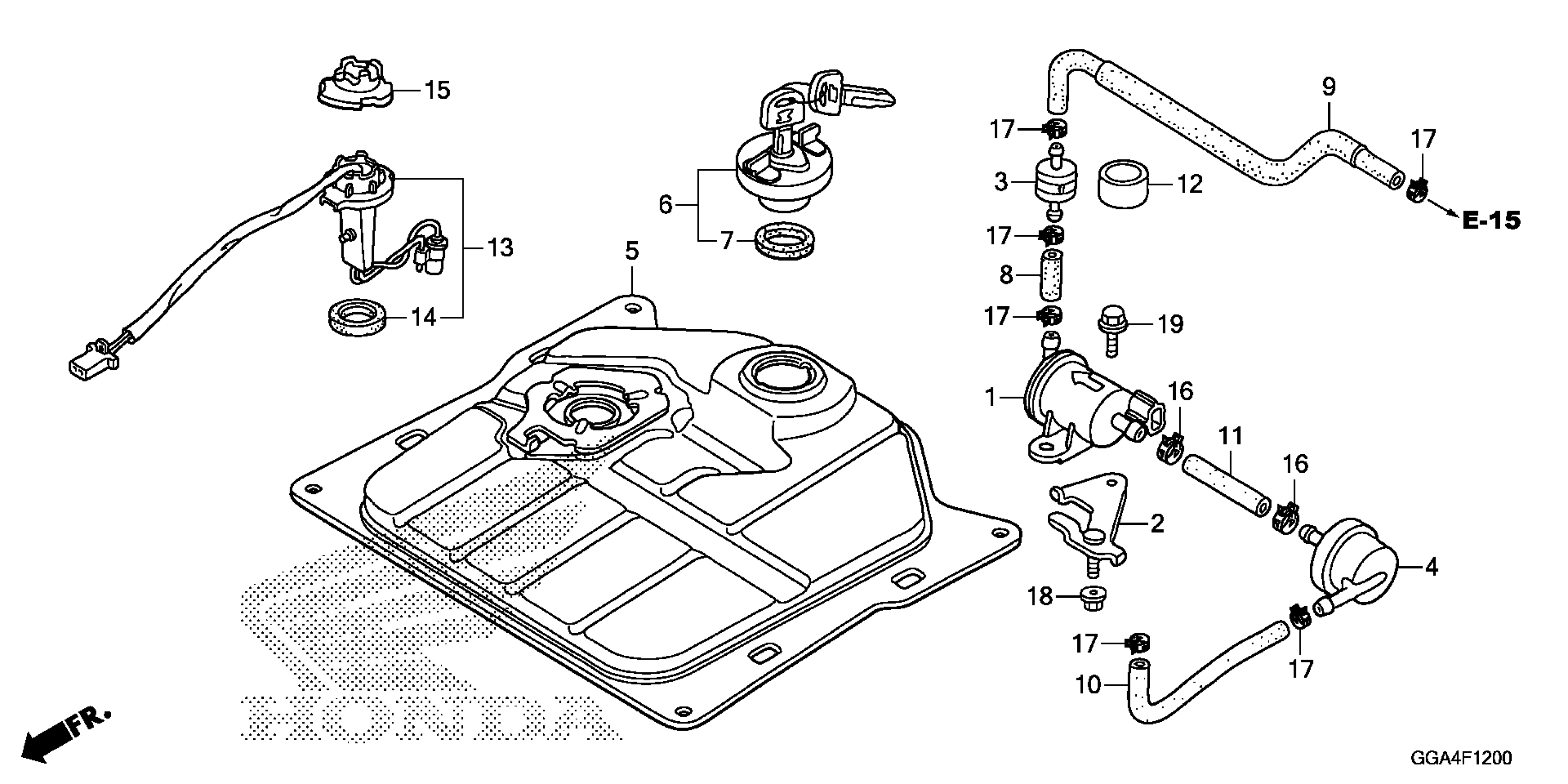

Honda NPS50AC (19) MOTOR SCOOTER, JPN, VIN# JH2AF581-KK700001 TO JH2AF581-KK799999 FUEL TANK Diagram

PUMP ASSY., FUEL (MSDS)

16710-GET-013

$85.67

STAY, FUEL PUMP

16715-GET-000

$6.44

VALVE, CHECK

16800-GET-831

$16.84

FILTER, FUEL

16900-GET-003

$15.04

TANK, FUEL

17500-GET-010

$155.34

CAP, FUEL FILLER This part replaces 17620-GEV-761.

17620-GEV-762

$51.24

CAP, FUEL FILLER

17620-GEV-762

$51.24

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

Unavailable

GASKET, FUEL FILLER CAP

17632-383-832

Unavailable

TUBE, FUEL (4.5X45) (FKM)

17681-GET-A60

$4.76

TUBE, FUEL (4.5X390) (FKM)

17682-GGA-670

$26.84

TUBE A, FUEL (FKM)

17683-GET-A60

$7.68

TUBE, FUEL (5.5X55) (FKM)

17684-GGA-670

$5.38

TUBE (17X23X13)

17686-GET-A60

$3.38

SENSOR UNIT, FUEL & RESERVE

37080-GEZ-610

$63.82

GASKET, BASE

37801-GA7-700

$4.81

RETAINER, FUEL UNIT

37802-GA7-700

$4.81

CLAMP, TUBE (D10.0)

90651-KPS-A11

$1.87

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.32

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81
