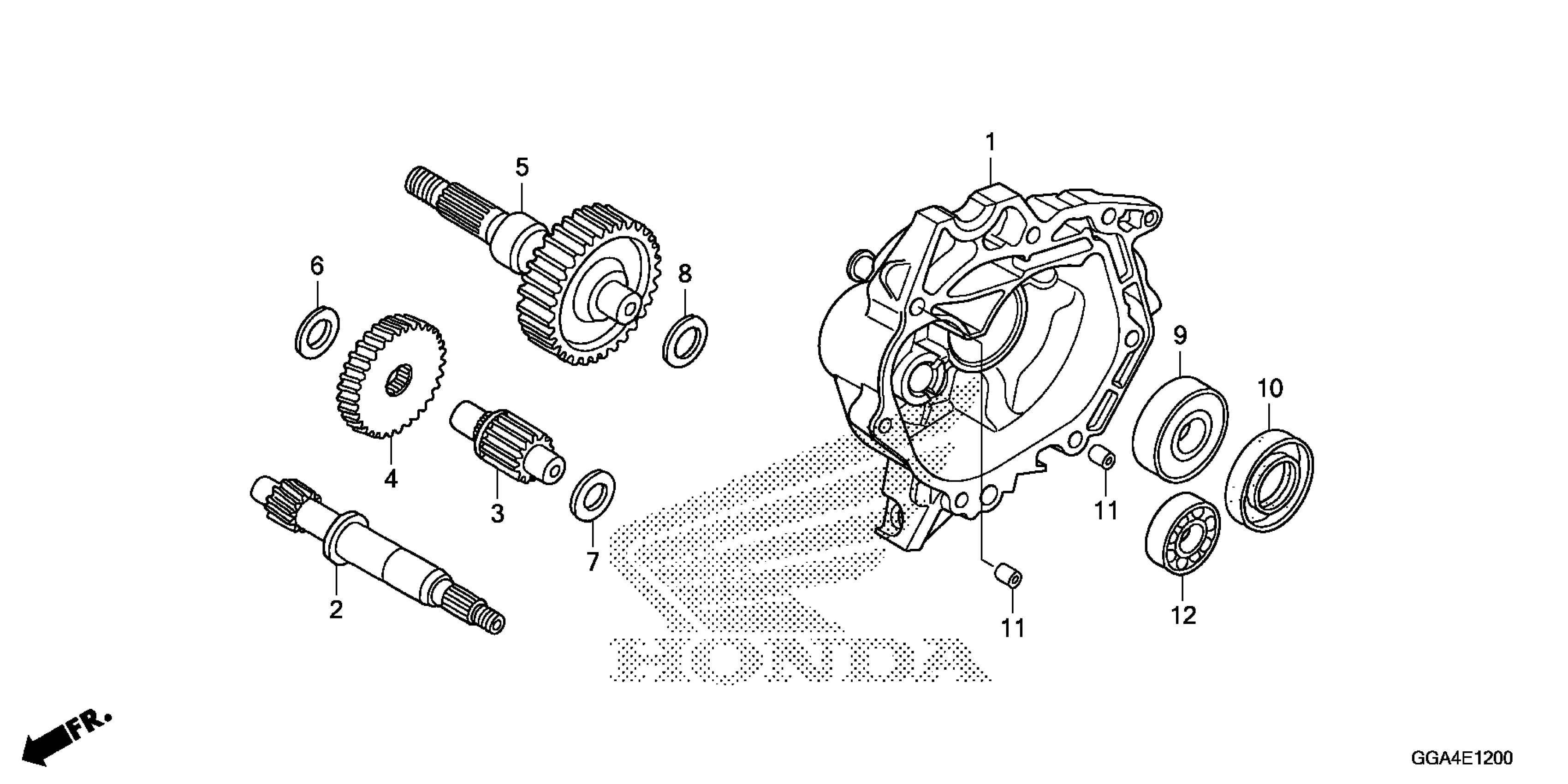

Honda NPS50AC (18) MOTOR SCOOTER, JPN, VIN# JH2AF581-JK600001 TO JH2AF581-JK699999 TRANSMISSION Diagram

CASE, TRANSMISSION

21200-GEZ-000

$130.84

SHAFT, DRIVE (12T)

23411-GEZ-000

$42.85

COUNTERSHAFT (12T)

23421-GEZ-000

Unavailable

GEAR, COUNTER (42T)

23422-GEZ-000

$29.81

GEAR, FINAL (47T)

23430-GEZ-000

$97.53

WASHER, SIDE (14MM)

90429-GET-000

$2.04

WASHER, THRUST (14MM)

90454-350-000

$3.58

WASHER, THRUST (17MM)

90454-KF0-000

$4.19

BEARING, RADIAL BALL (6203UU)

91008-GGZ-J01

$6.45

OIL SEAL (24X40X7)

91254-GE8-005

$8.51

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.76

BEARING, RADIAL BALL (6201)

96100-62013-00

$8.61
