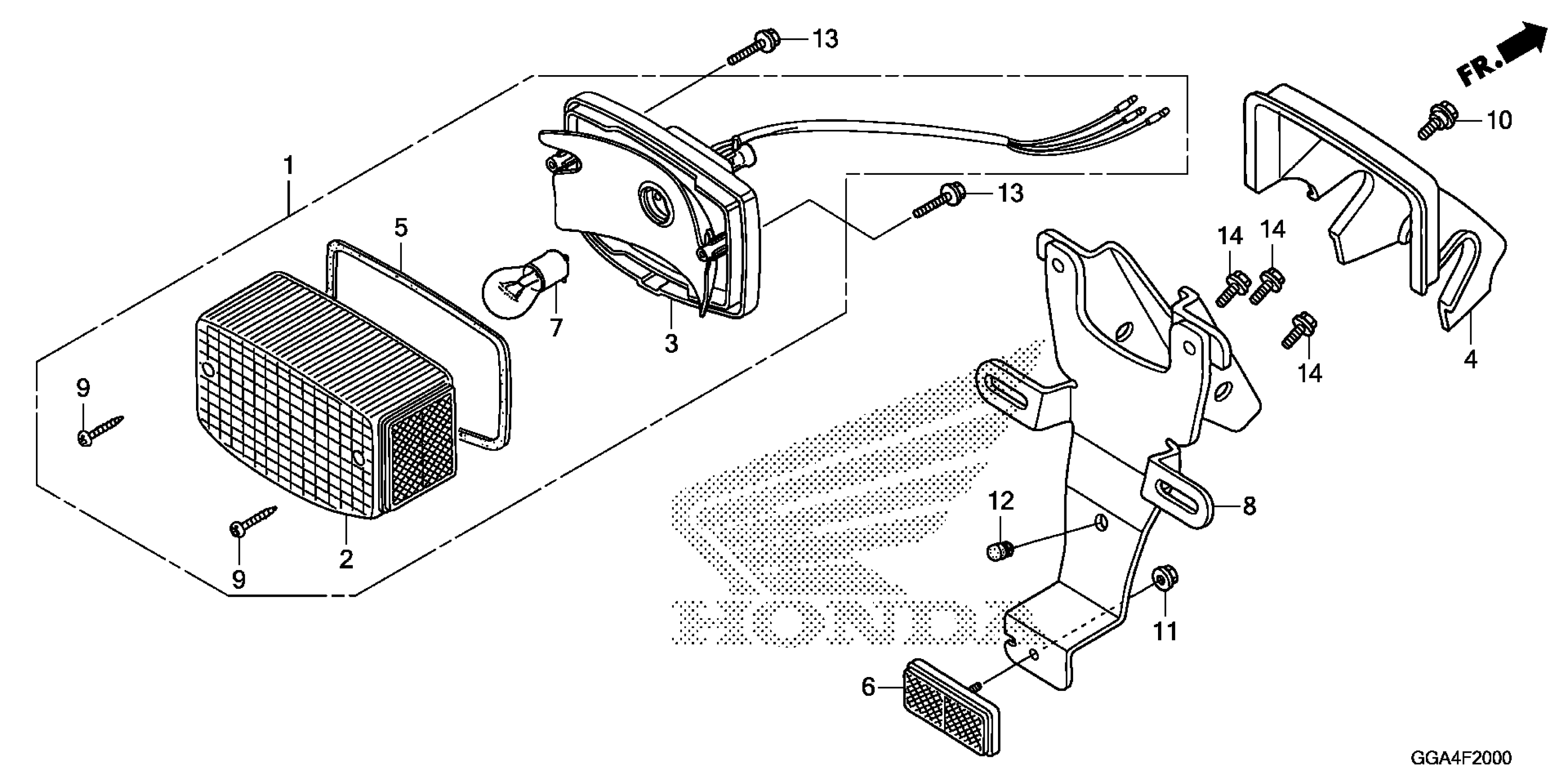

Honda NPS50AC (18) MOTOR SCOOTER, JPN, VIN# JH2AF581-JK600001 TO JH2AF581-JK699999 TAILLIGHT Diagram

TAILLIGHT UNIT (12V 32/3CP) (COO) This part replaces 33701-GEZ-672.

33701-GEZ-305

$100.23

TAILLIGHT UNIT (12V 32/3CP) (COO)

33701-GEZ-305

$100.23

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.56

LENS, TAILLIGHT (COO) (STANLEY)

33702-MGR-305

$27.56

SOCKET, TAILLIGHT

33703-GEZ-672

$54.19

COVER, TAILLIGHT

33705-GEZ-671

$6.42

GASKET, TAILLIGHT LENS

33709-KB7-003

$3.92

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.09

BRACKET, TAILLIGHT

84701-GEZ-670

$34.06

SCREW, TAPPING (4X40)

90105-GAM-000

$4.58

BOLT, FLANGE (6MM)

90111-162-000

$2.62

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.25

RUBBER, NUMBER BRACKET CUSHION

90899-MB2-000

$3.46

BOLT-WASHER (5X14)

93404-05014-00

$0.78

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81
