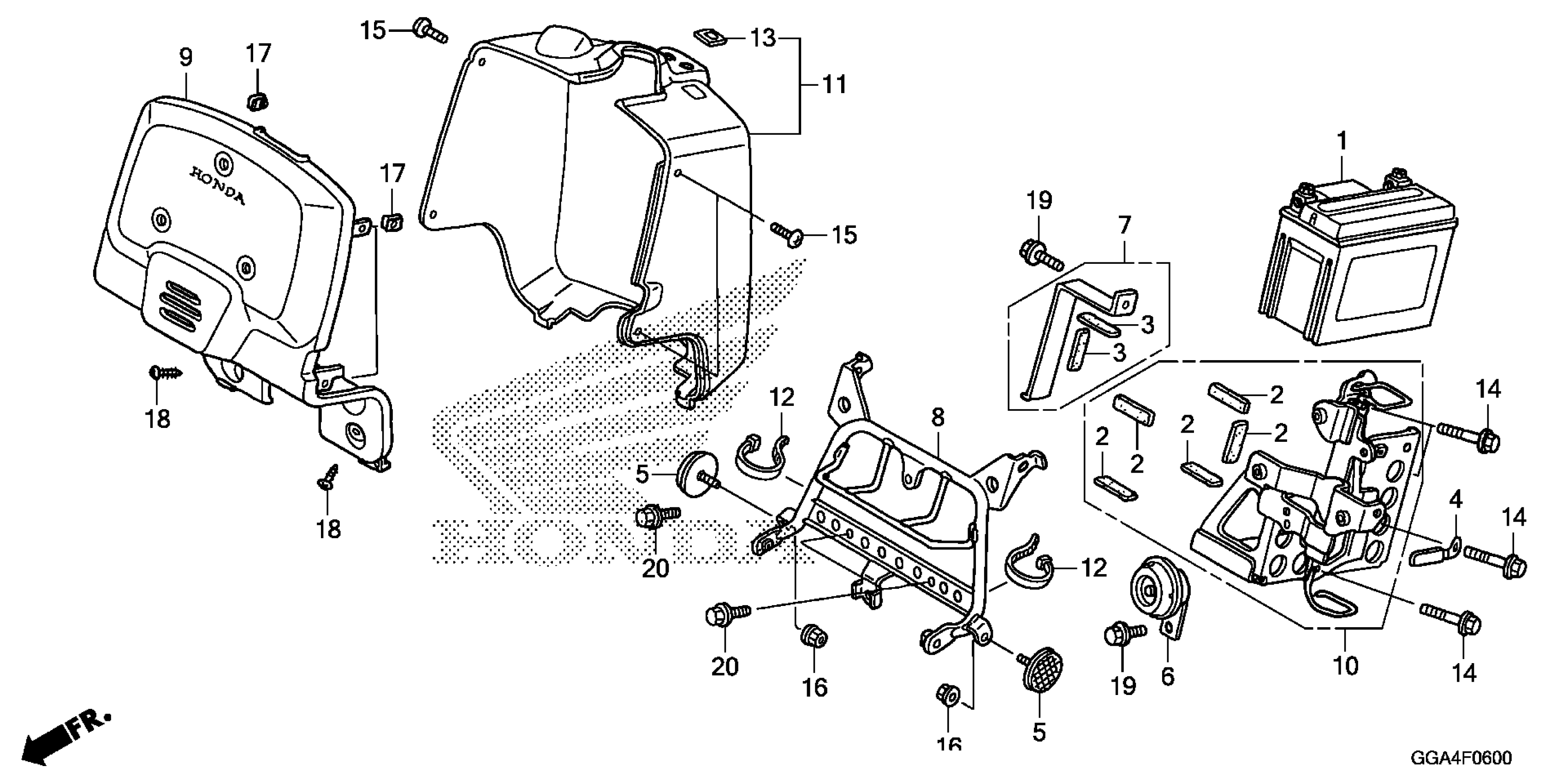

Honda NPS50AC (18) MOTOR SCOOTER, JPN, VIN# JH2AF581-JK600001 TO JH2AF581-JK699999 FRONT COVER@BATTERY Diagram

BATTERY (YTZ7S) | Use up to Frame SN JK602837. This part replaces 31500-HP1-600.

31500-HP1-602

$145.83

BATTERY (YTZ7S) | Use up to Frame SN JK602837. This part replaces 31500-HP1-601.

31500-HP1-602

$145.83

BATTERY (YTZ7S) | Use up to Frame SN JK602837. This part replaces 31500-HP1-601AH.

31500-HP1-602

$145.83

BATTERY (YTZ7S) | Use up to Frame SN JK602837. This part replaces 31500-KGB-901.

31500-HP1-602

$145.83

BATTERY (YTZ7S) (YUASA) (MSDS) | Use from Frame SN JK602838.

31500-KGB-902

$138.59

CUSHION, BATTERY (B)

31516-GBT-000

$1.84

CUSHION, BATTERY

31516-GEZ-610

$1.51

CLIP, SUB-WIRE

32901-MA1-000

$4.95

REFLECTOR, FR. REFLEX (AMBER)

33742-HB9-641

$13.14

HORN (HIGH)

38110-KBR-013

$26.53

BAND, BATTERY

50324-GEZ-000

$10.56

BRACKET, HEADLIGHT *NH1* (BLACK)

61310-GEZ-670ZA

$57.46

BRACKET, HEADLIGHT *NH138* (SHASTA WHITE)

61310-GEZ-670ZE

$59.69

COVER SET, FR. (TYPE1) (WL)

64300-GGA-600ZA

$69.67

COVER SET, FR. (TYPE1) (WL)

64300-GGA-650ZG

$59.09

STAY, FR. COWL

64400-GEZ-020

$28.05

COVER SET (INNER) *NH1* (WL) (BLACK)

81130-GEZ-010ZF

$45.14

COVER SET (INNER) *NH138* (WL) (SHASTA WHITE)

81130-GEZ-691ZA

$43.53

BAND, NYLON

83645-GG0-000

$1.93

EMBLEM, PRODUCT (MARUI) This part replaces 86150-GEZ-000.

86150-KPG-901

$3.62

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

BOLT, SPECIAL (6X32)

90106-GEZ-000

$2.38

SCREW, TRUSS (5X14)

90109-KBV-000

$1.95

NUT, SPECIAL (6MM)

90301-088-660

$2.92

NUT, CLIP (5MM)

90677-GR1-003

$4.27

SCREW, TAPPING (4X12)

93903-24380

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

BOLT-WASHER (6X16)

93401-06016-00

$1.55
