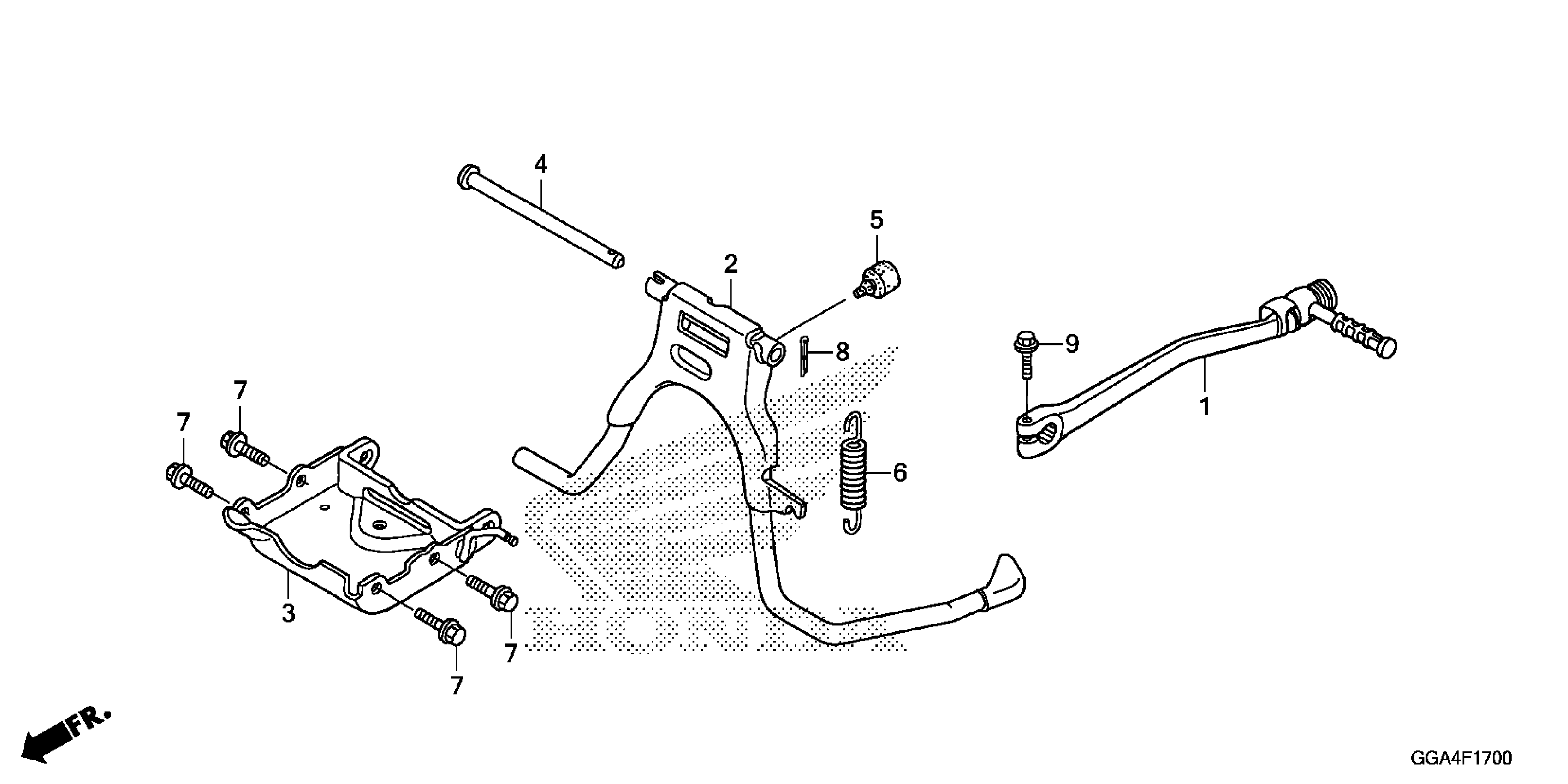

Honda NPS50AC (13) RUCKUS, JPN, VIN# JH2AF581-DK100001 TO JH2AF581-DK199999 STAND@KICK STARTER ARM Diagram

#

Description

Price

1

ARM ASSY., KICK STARTER This part replaces 28300-GET-305.

28300-GET-010

$73.84

1

ARM ASSY., KICK STARTER

28300-GET-010

$73.84

2

STAND, MAIN (COO)

50500-GEZ-305

$69.04

3

BRACKET, MAIN STAND

50501-GEZ-010

$32.05

4

SHAFT, MAIN STAND

50503-GBL-000

$4.17

5

RUBBER, STAND STOPPER

50505-GEZ-000

$1.92

6

SPRING, MAIN STAND

50520-GW2-000

$4.06

7

BOLT, FLANGE (8X20)

90103-MW3-670

$3.78

8

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

8

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

8

PIN, COTTER (2.5MM)

94201-25300

$1.49

9

BOLT, FLANGE (6X22)

95701-06022-07

$1.49
