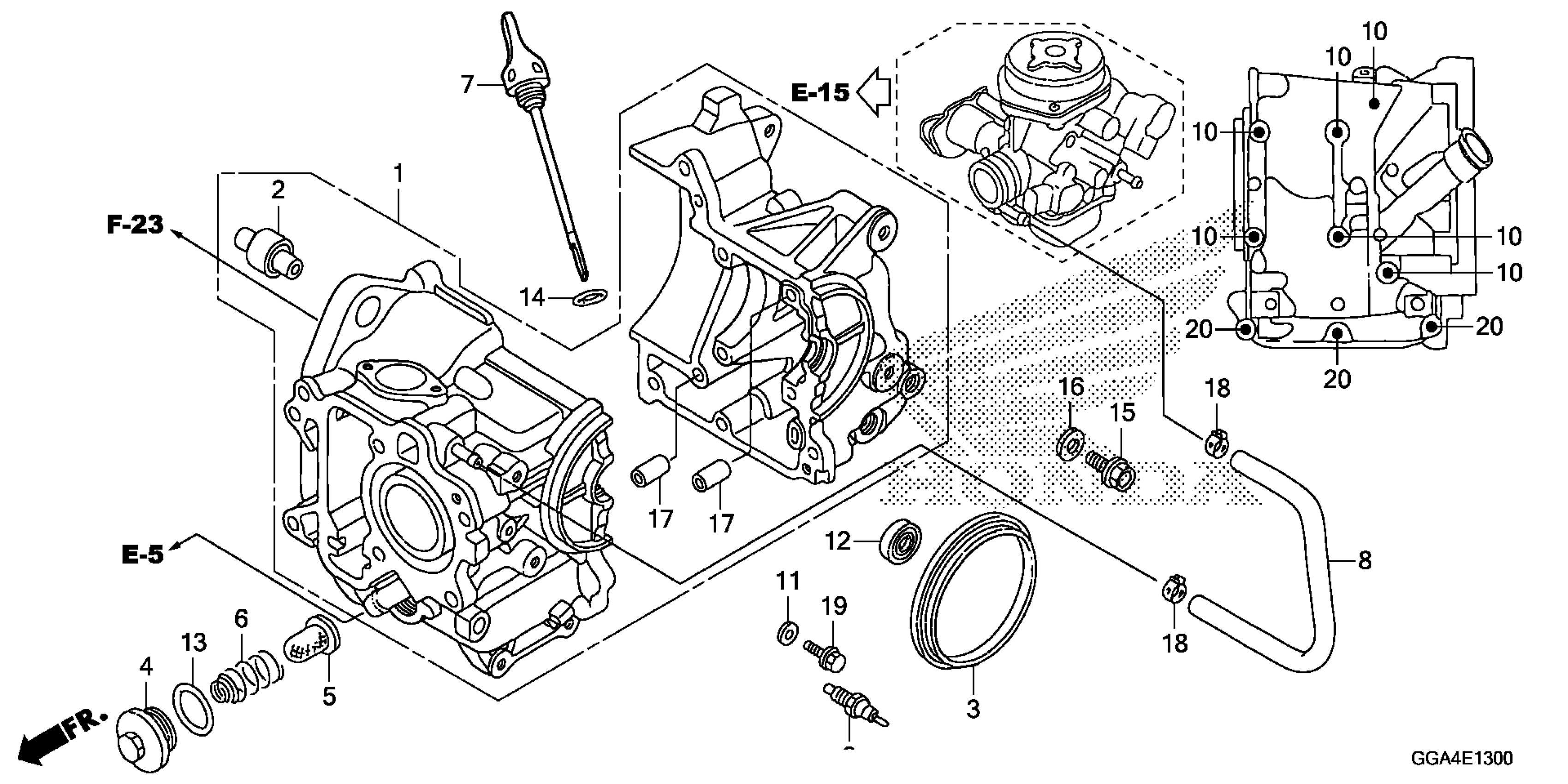

Honda NPS50AC (13) RUCKUS, JPN, VIN# JH2AF581-DK100001 TO JH2AF581-DK199999 CRANKCASE Diagram

CRANKCASE SET

11000-GET-671

$410.07

BUSH, ENGINE HANGER RUBBER

11102-GEE-003

$7.79

SEAL, RUBBER (88MM)

11309-GEE-000

$4.80

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

CAP, VALVE ADJ.

12361-300-000

Unavailable

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

SCREEN, OIL FILTER

15421-107-000

$6.31

SPRING, OIL FILTER SCREEN

15426-GE1-920

$5.62

DIPSTICK, OIL

15651-GET-010

$9.24

TUBE B

19325-GET-000

$4.80

THERMOSTAT UNIT

37750-GEE-003

$33.75

BOLT, FLANGE (6X77)

90004-PR0-000

$6.13

WASHER, SEALING (6MM)

90441-706-000

$1.49

OIL SEAL (19X32X6)

91202-GEE-003

$4.49

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

O-RING (18X3)

91307-035-000

$2.92

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

CLAMP, TUBE (D8.5)

95002-40850-08

$2.34

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06
